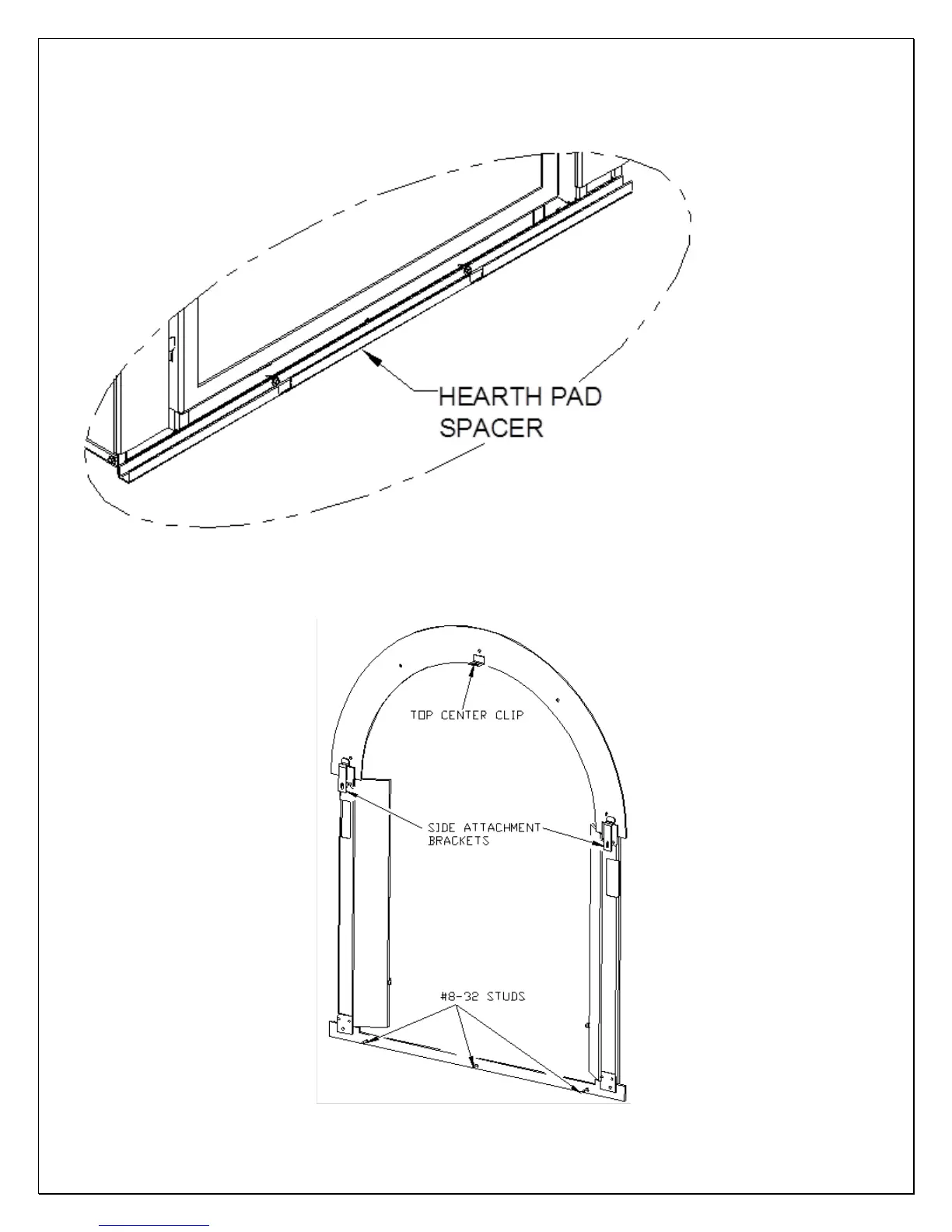

11. Before attaching Surround Assembly to the fireplace, remove the Hearth Pad Spacer that is secured to the Floor Plate of the
Fireplace. Remove the two ¼” Hex Head Screws that secure the Hearth Pad Spacer to the Fireplace and slide it out and
discard.
12. Identify the Top Center Clip, Side Attachment Brackets and the #8-32 Studs located on the backside of the Surround
Assembly.
13. Thread one 8-32 nut on each of the three 8-32 studs attached to the Surround Bottom. Thread the nuts in only about 1/8”
and leave loose.
