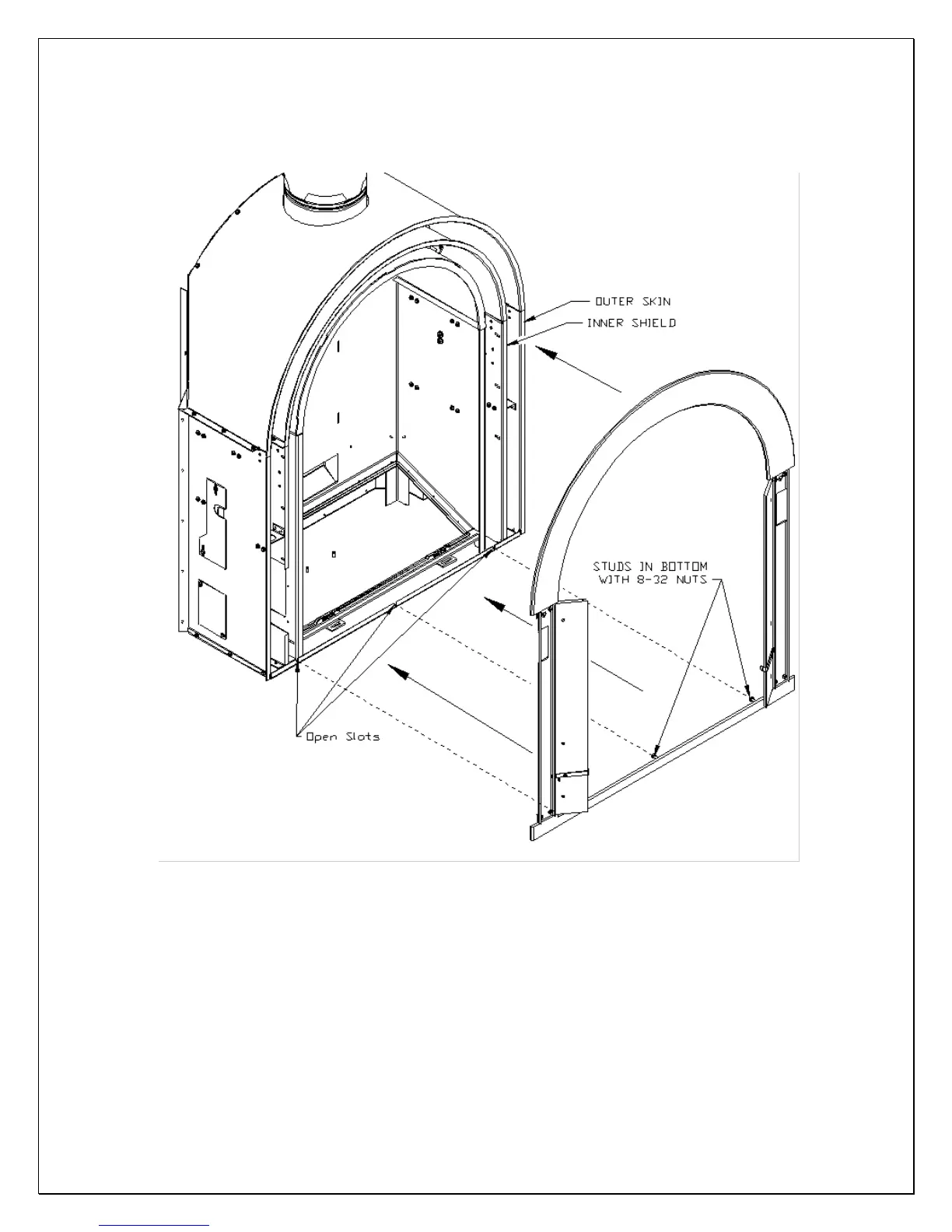

14. Carefully, stand the Surround Assembly upright. Slide the three (3) studs [attached to the Surround Bottom] into the three
open slots in the fireplace floor plate’s front flange. Do not tighten the nuts at this time.
15. Rotate entire Surround Assembly in towards the fireplace.
16. Make certain that the Side Attachment Brackets slide in between the Outer Skin and the inner heat shield in the fireplace.
