85-03-01120 M27 Page 82

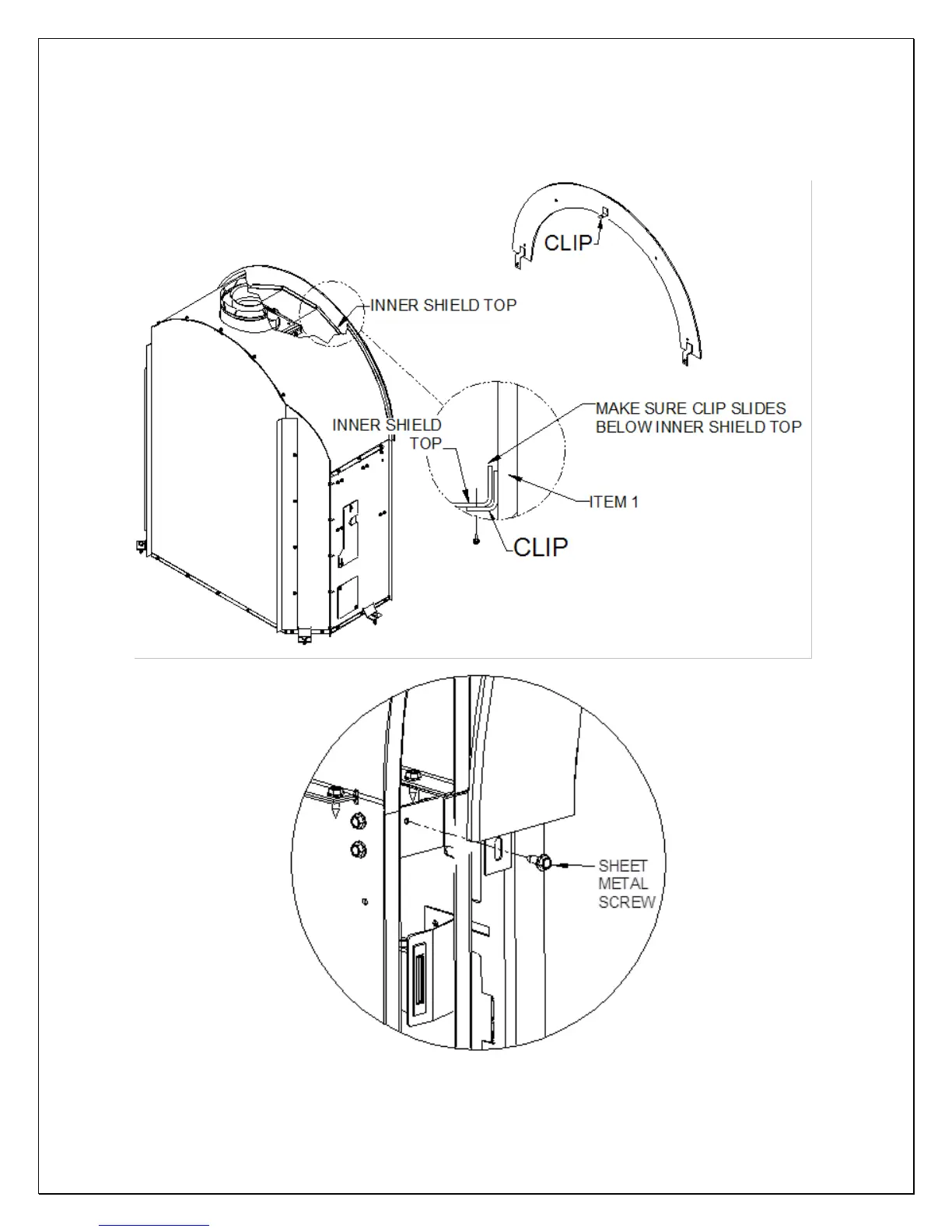

17. Make certain that TOP CENTER CLIP on the back of the Surround Top slides under the inner shield of the fireplace.
18. Loosely secure SIDE ATTACHMENT BRACKETS [part of Surround Top] to unit through slots located in left and right sides
of top surround, see Figure below. Leave screws loose to allow for adjustment and alignment of sur-round.
19. Drive one Sheet Metal Screw upward through the slot in the TOP CENTER CLIP [on the back of Surround Top] in-to the
hole located in the INNER SHIELD TOP. Leave screw loose for adjustment.
