GETTING TO KNOW YOUR POWER PACKAGE
SECTION 2
CMD-4081877 / 90-865861040 MARCH 2004 Page 13
a modified CD934 and CD860
SWITCHES
73547
70522
a
b
a
c
b
79996
71891
b

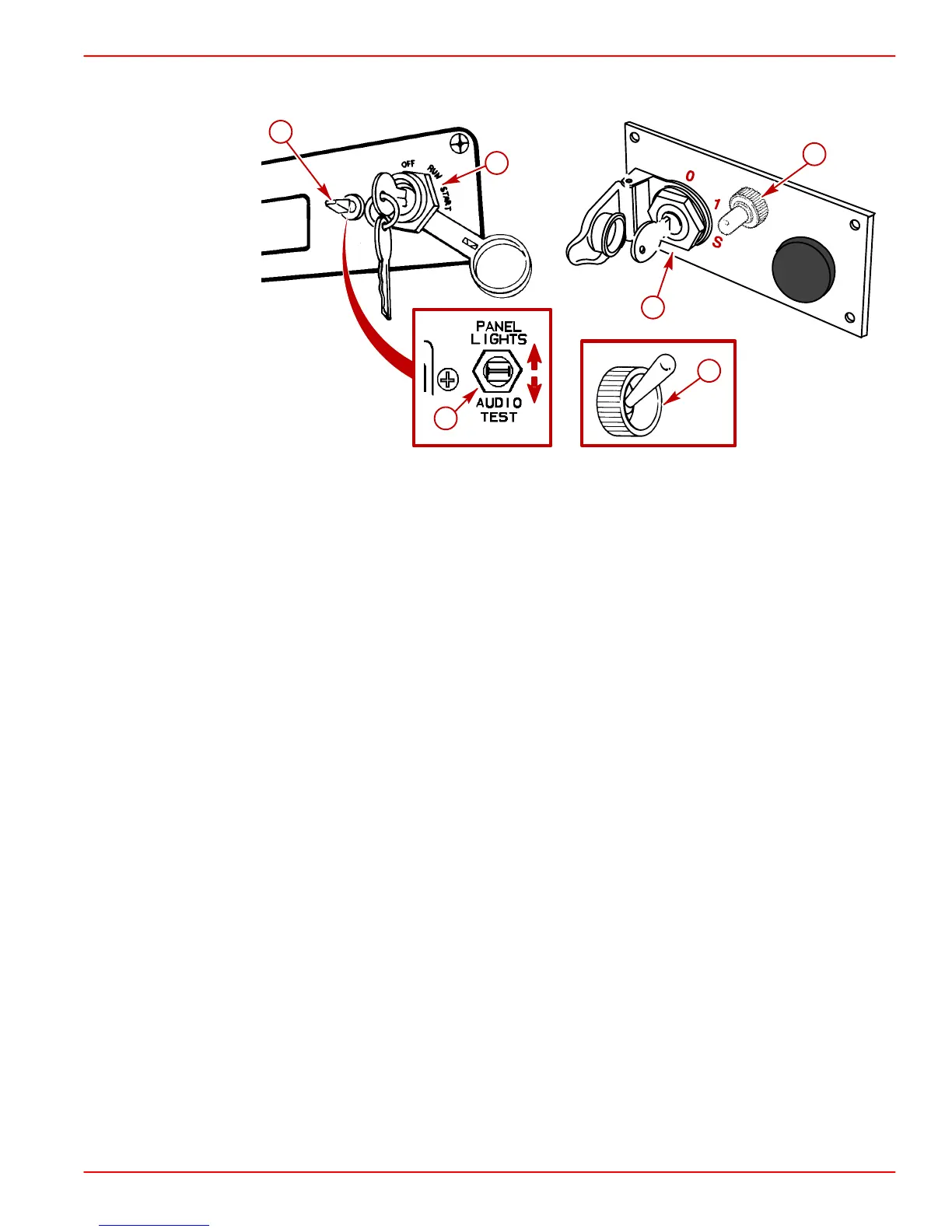

Typical switches
a-Key switch
b-Panel lights / audio test switch
c-Bilge blower switch
Key Switch - has three positions.
1. OFF - In the OFF position, all electrical circuits are off and engine cannot be started. The
engine is stopped when the key switch is turned to the OFF position.
2. RUN - In the RUN position, all electrical circuits, indicator lamps, automatic preheating
(if equipped) and all instruments are operational.
3. START - In the START position the engine can be started.
NOTE: Key can only be removed in the OFF position.
Panel Lights / Audio Test Switch - has three positions; in the NORMAL position all
electrical circuits operate in a standard fashion (as described above). With switch toggled
UP the instrumentation lights are all illuminated. When the switch is toggled DOWN the
audio warning horn will sound allowing the operator to perform a test of the audio warning
horn.
Bilge Blower Switch: Operates bilge blower.
