Replacing

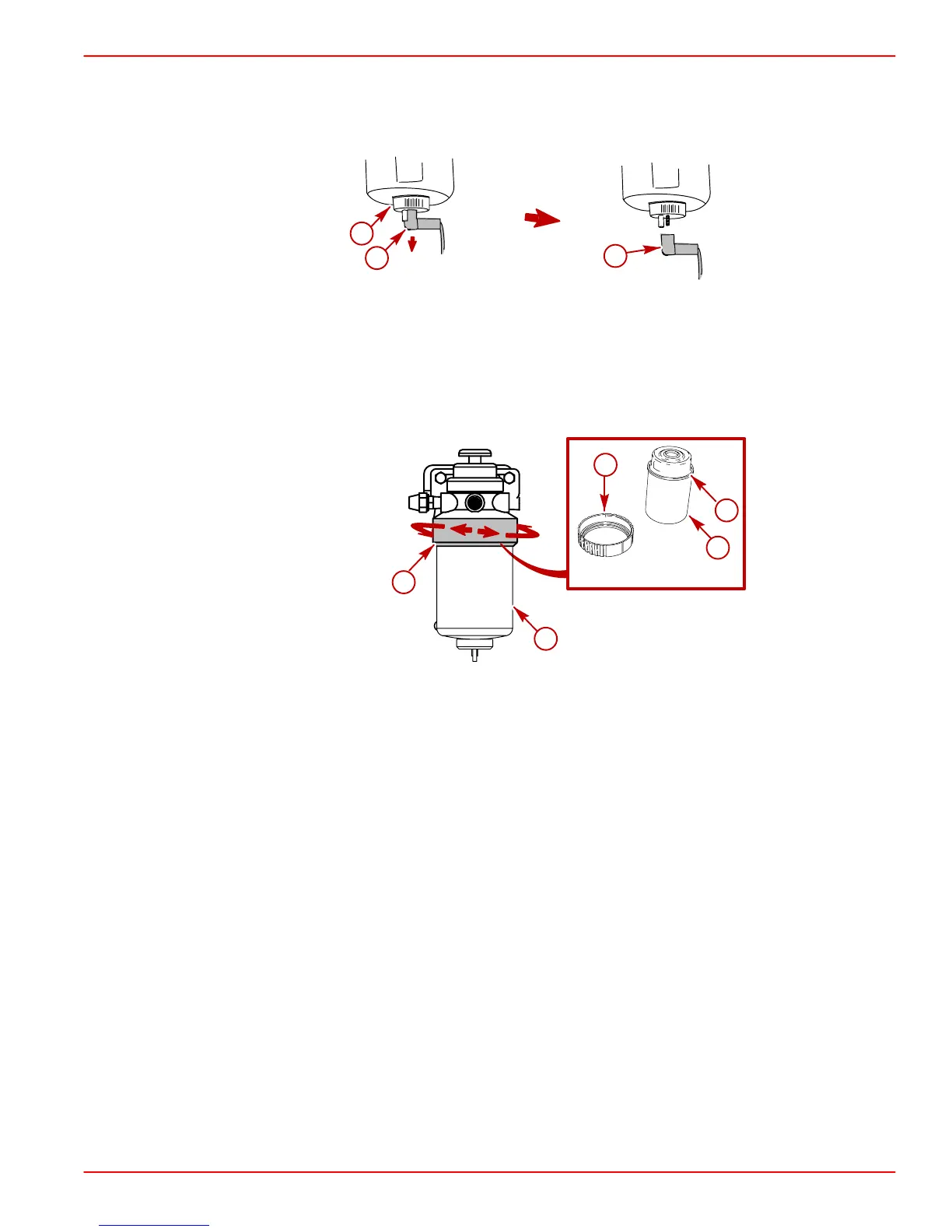

1. Unplug the WIF sensor wire from the drain cap.
80013
a
b
b
Typical
a-Drain cap
b-WIF sensor wire
2. Twist locking ring by hand. Remove water separating fuel filter and sealing ring from
mounting bracket. Do not use a filter wrench.
76114
a
c
a
b
b
74726
Typical
a-Locking ring
b-Water separating fuel filter
c-Sealing ring
3. Remove the drain cap and O-ring from the bottom of the existing filter.
4. Install the drain cap and O-ring on the new filter.
