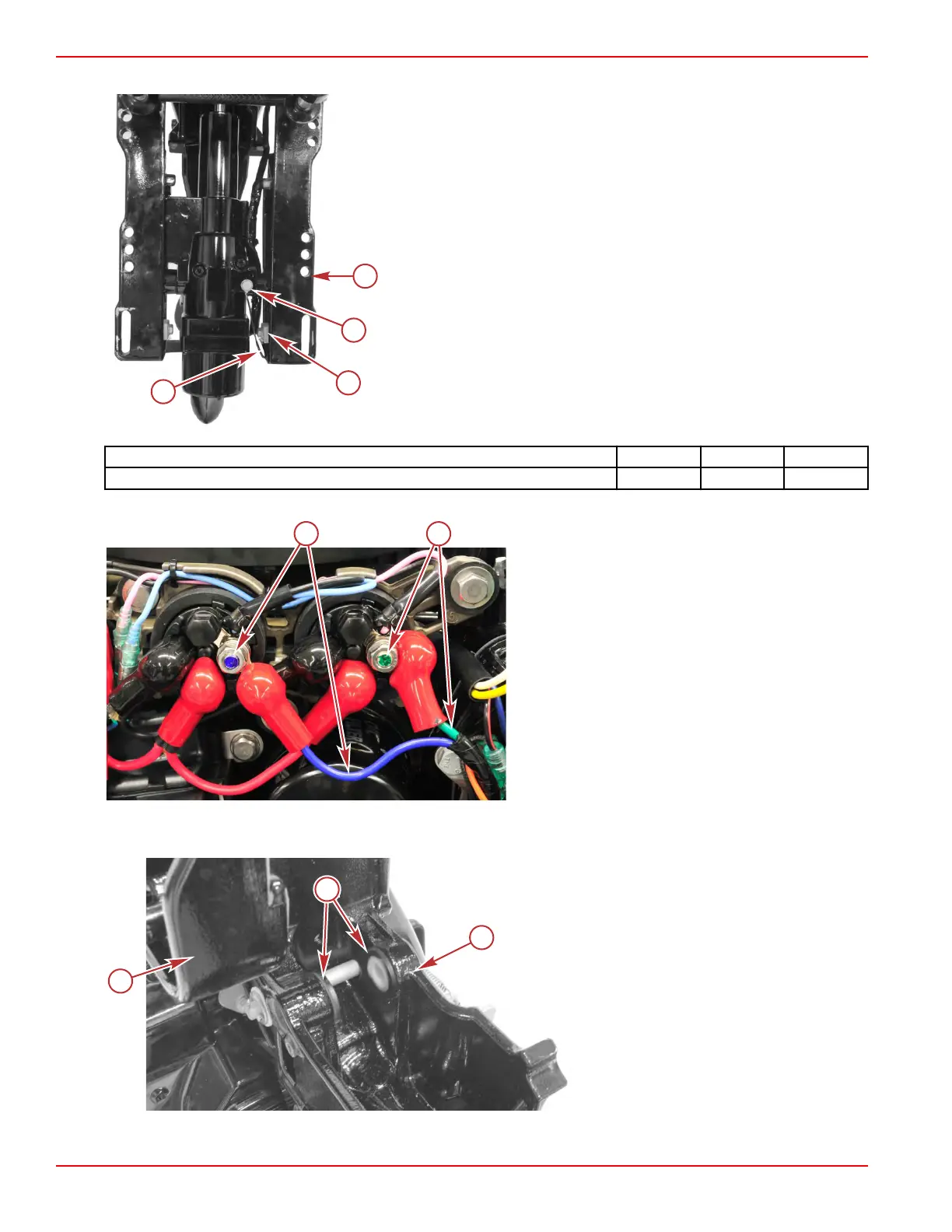

7. Install the ground strap and retaining screws. Tighten the screws to the specified torque.
a - Clamp bracket
b - Ground strap screw on power tilt unit
c - Ground strap screw on clamp bracket
d - Ground strap
Description Nm lb‑in. lb‑ft
Ground strap screw 6.0 53.1 –
8. Connect the power tilt electrical wires to the power tilt relays.
a - Blue (up) tilt relay terminal and wire
b - Green (down) tilt relay terminal and wire
9. Connect the battery cables to the battery.
10.
Install the bushings into the swivel bracket.
a - Bushing (2)
b - Swivel bracket
c - Clamp bracket
11. Extend the power tilt cylinder rod.
Power Tilt
Page 5B-30 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
