12. Align the tilt cylinder rod eye between the swivel brackets.
13.
Install the tilt cylinder rod pin.
14. Install the tilt cylinder rod pin retaining screw and washer. Tighten the screw to the specified torque.

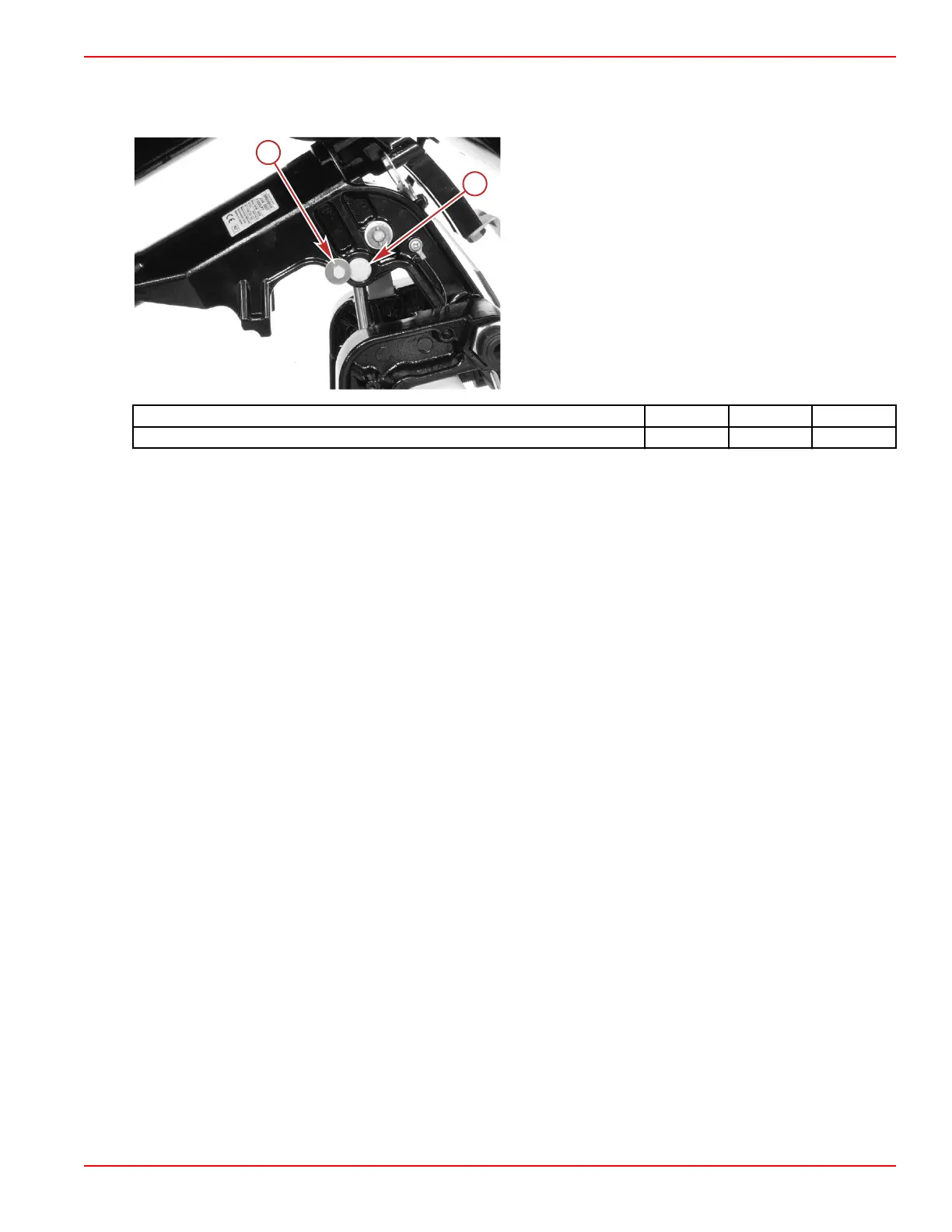

a - Tilt cylinder rod pin retaining screw and washer
b - Tilt cylinder rod pin
Description Nm lb‑in. lb‑ft
Tilt cylinder rod pin retaining screw 6.0 53.1 –
15. Disengage the tilt support lever and lower the outboard.
16. Cycle the outboard up and down several times to purge air from the system.
17.
Check the power tilt fluid level. Refer to Check Fluid and Purge the Power Tilt System, preceding.
Power Tilt
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5B-31
