IGNITION SYSTEM
Page 2A-16 90-857138R1 MAY 2000
INSTALLATION

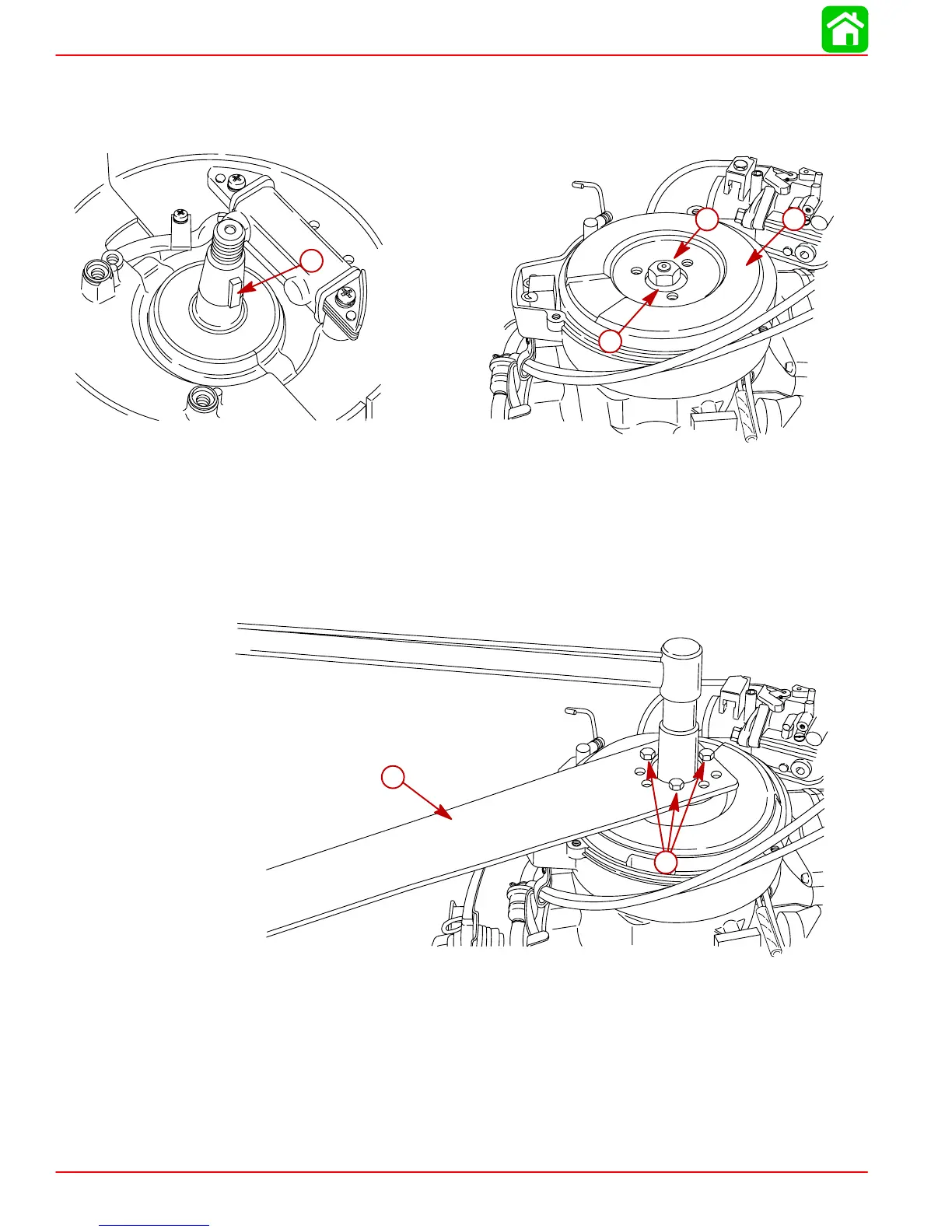

1. Install flywheel key.
2. Install flywheel, washer and nut onto end of crankshaft.
a
56280
57522
b
d
c
a-Flywheel Key
b-Flywheel
c-Washer
d-Nut
3. Secure flywheel holder to flywheel with 3 bolts.
4. Torque flywheel nut to 40 lb-ft (54.0 Nm)
57520
a
b
a-Flywheel Holder
b-Bolts (3)
