Section 1 - Getting to Know Your Power Package
Page 20 90-8M0113924 eng DECEMBER 2015

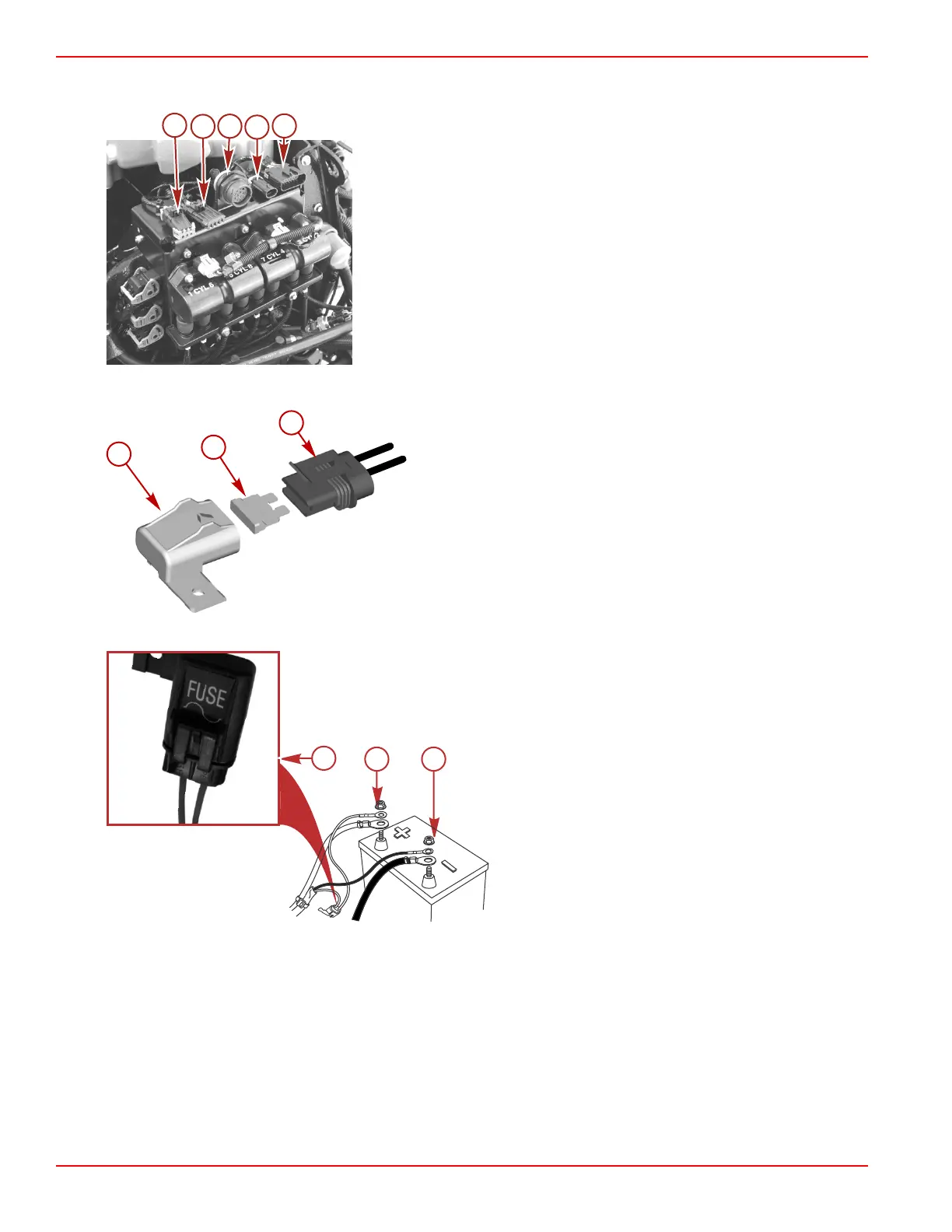

The clean power harness connected to the engine starting battery minimizes voltage drop to the electrical system and is
protected by a 5‑amp fuse.
a - Paddle wheel and tank level connector
b - Diagnostic connector
c - 14‑pin harness connector
d - Clean power harness connector
e - Transom harness connector
A 15‑amp accessory fuse protects the accessory circuits. This fuse is located on the rear of the engine.
a - Fuse cover
b - 15‑amp fuse
c - Accessory harness
The emissions control system is protected by a 5‑amp fuse located in the clean power harness.
a - 5‑amp fuse
b - Positive (+) battery terminal (harness lead with fuse)
c - Negative (–) battery terminal
