Section 1 - Getting to Know Your Power Package
90-8M0113924 eng DECEMBER 2015 Page 21

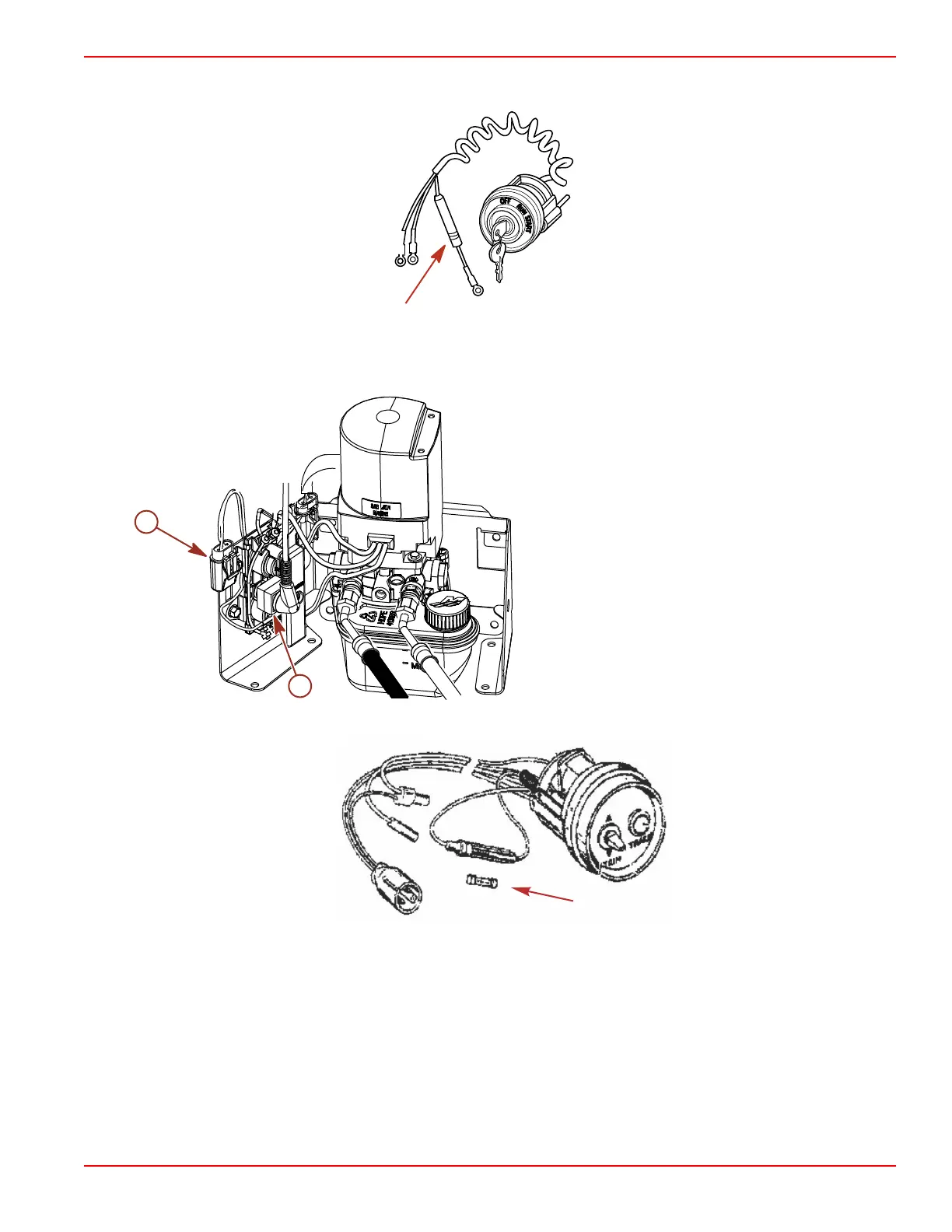

A 20‑amp fuse may be located in the ignition switch "I" terminal lead to protect the electrical system. Check for an open fuse or
an open circuit breaker if the ignition key is turned to the "START" position and nothing happens.
mc70525-1
The power trim system is protected from overload by both a 110‑amp fuse and a 20‑amp spade fuse on the power trim pump.
The trim pump may also have an in‑line circuit protection device in the power trim positive lead near the battery switch or
battery connection.
a - 20‑amp spade fuse
b - 110‑amp fuse
The power trim control panel is protected by a 20‑amp in‑line fuse.
a
b
9208
