Instrumentation
Multifunction Display
Your power package may be connected to a multifunction display (MFD), such as the SmartCraft VesselView display. Refer to
your MFD owner's guide for detailed instructions on how to operate your vessel's display.
There are several VesselView products available. VesselView will display all engine information, fault codes, vessel
information, basic navigation data, and system information. When an operating system error or failure occurs, VesselView
displays an alarm message.
VesselView may also be connected to other vessel systems such as GPS, generators, and chartplotters. This vessel
integration allows the operator to monitor and control a wide range of vessel systems from a single display.
Refer to the VesselView operator's manual for more information.

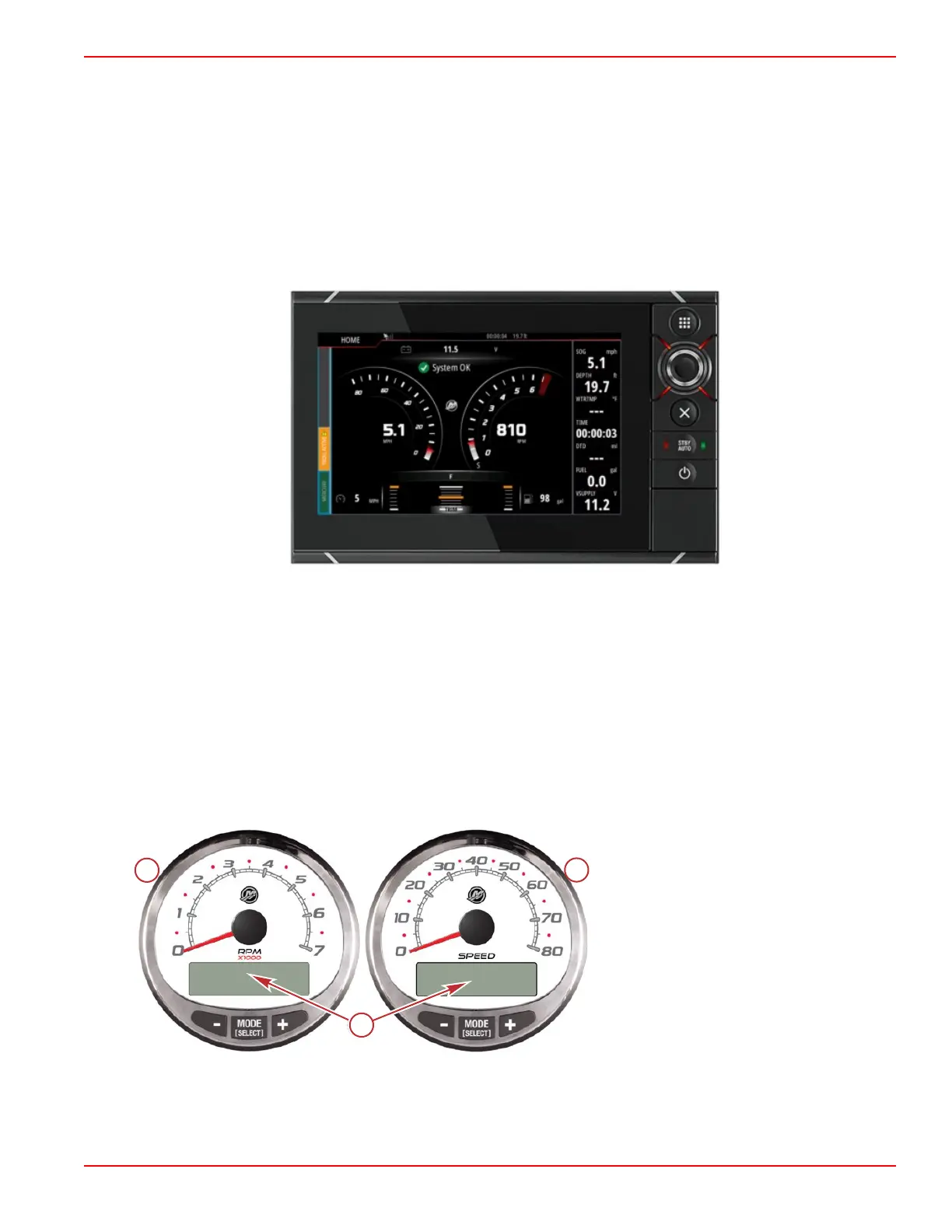

VesselView 703
SmartCraft Digital Instruments
The SmartCraft instrument package augments the VesselView display. The instrument package may include:
• Tachometer
• Speedometer
• Engine coolant temperature
• Engine oil pressure
• Battery voltage
• Fuel consumption
• Engine operating hours
SmartCraft tachometer and speedometer
a - Tachometer
b - Speedometer
c - LCD display
The SmartCraft instrument package also aids in identifying fault codes associated with the engine audio warning system. The
SmartCraft instrument package displays critical engine alarm data and other potential problems on its LCD display.
For basic operation information on the SmartCraft instrument package and for details on the warning functions monitored by the
system, refer to the manual provided with your gauge package.
Section 2 - Getting to Know Your Power Package
90-8M0117076 eng FEBRUARY 2018 Page 11
