System Link Digital Instruments
Some instrumentation packages include system link gauges that augment the information provided by VesselView or a
SmartCraft system tachometer and speedometer. The owner and operator should be familiar with all the instruments and their
functions on the boat. Have your boat dealer explain the gauges and normal readings that appear on your boat.
The following digital instruments may be included with your power package.

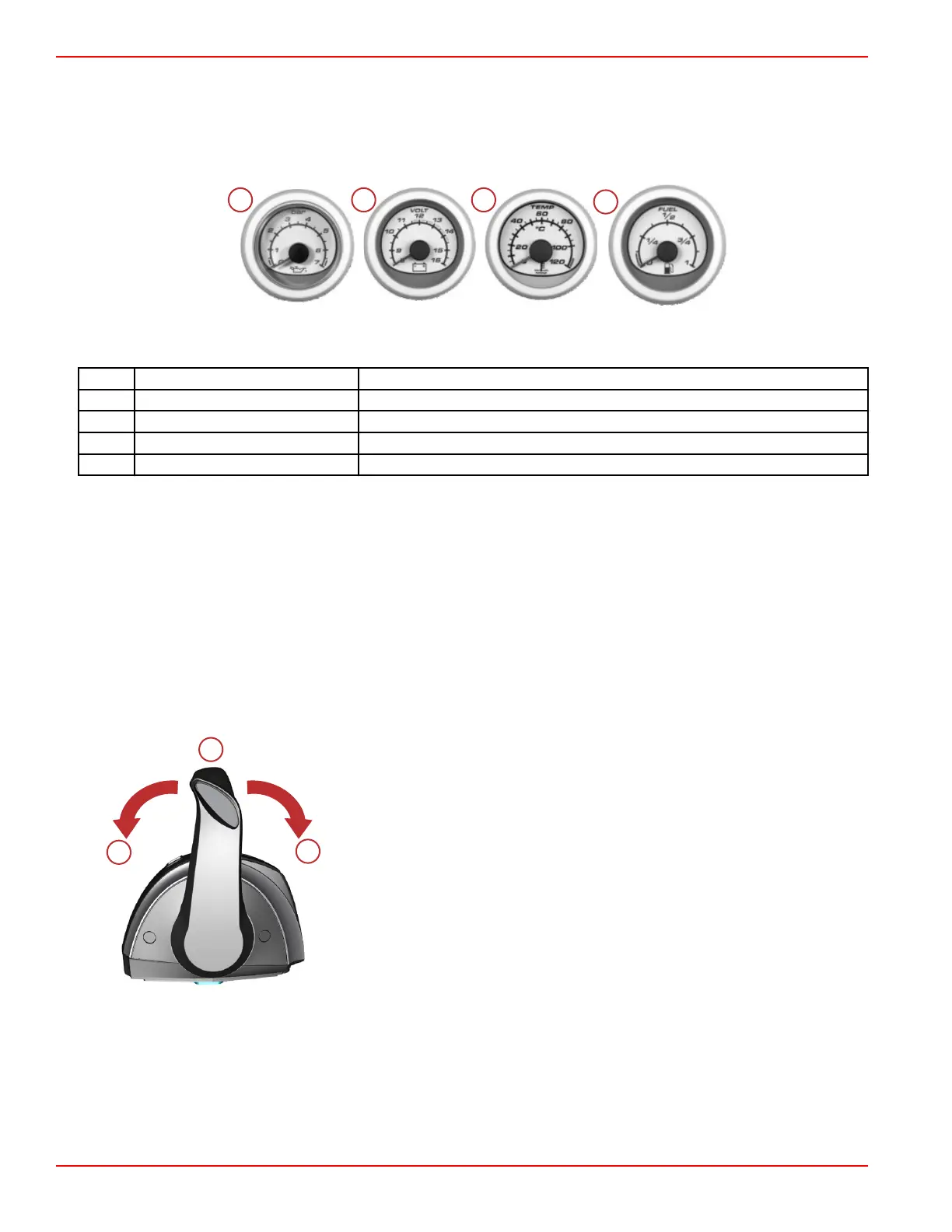

System Link digital gauges
Item Gauge Indicates
a Oil pressure gauge Engine oil pressure
b Voltmeter Battery voltage
c Water temperature gauge Engine operating temperature
d Fuel gauge Quantity of fuel in tank
Remote Controls
IMPORTANT: Your boat must be equipped with a Mercury Marine electronic remote control. Start in gear protection is provided
by this control system and prevents the engine from starting when the control is actuated in forward or reverse. Refer to the
Mercury Precision Parts/Quicksilver Accessories Guide.
The digital throttle and shift (DTS) system required to operate this engine package provides start and stop functions, throttle
control, shift control, start in gear protection, and emergency lanyard stop functions. The DTS system works with specialized
helm components such as a command module kit and electronic remote control. Consult your dealer for a description and/or
demonstration of your remote control.
DTS Slim Binnacle Single Handle Console Features and Operation
1. Operation of shift and throttle is controlled by the movement of the control handle. Push the control handle forward from
neutral to the first detent for forward gear. Continue pushing forward to increase speed. Pull the control handle back from
neutral to the first detent for reverse gear. Continue pulling back to increase speed.
a - Forward
b - Neutral
c - Reverse
2. Detent tension adjustment screw ‑ This screw can be adjusted to increase or decrease the effort to move the control
handle out of detent positions. Turning the screw clockwise will increase tension. Turning the screw counterclockwise will
decrease tension. Adjust to the desired tension.
Section 2 - Getting to Know Your Power Package
Page 12 90-8M0117076 eng FEBRUARY 2018
