PROPULSION
Page 3-4 90-892133 JULY 2003
Propulsion Data Screens

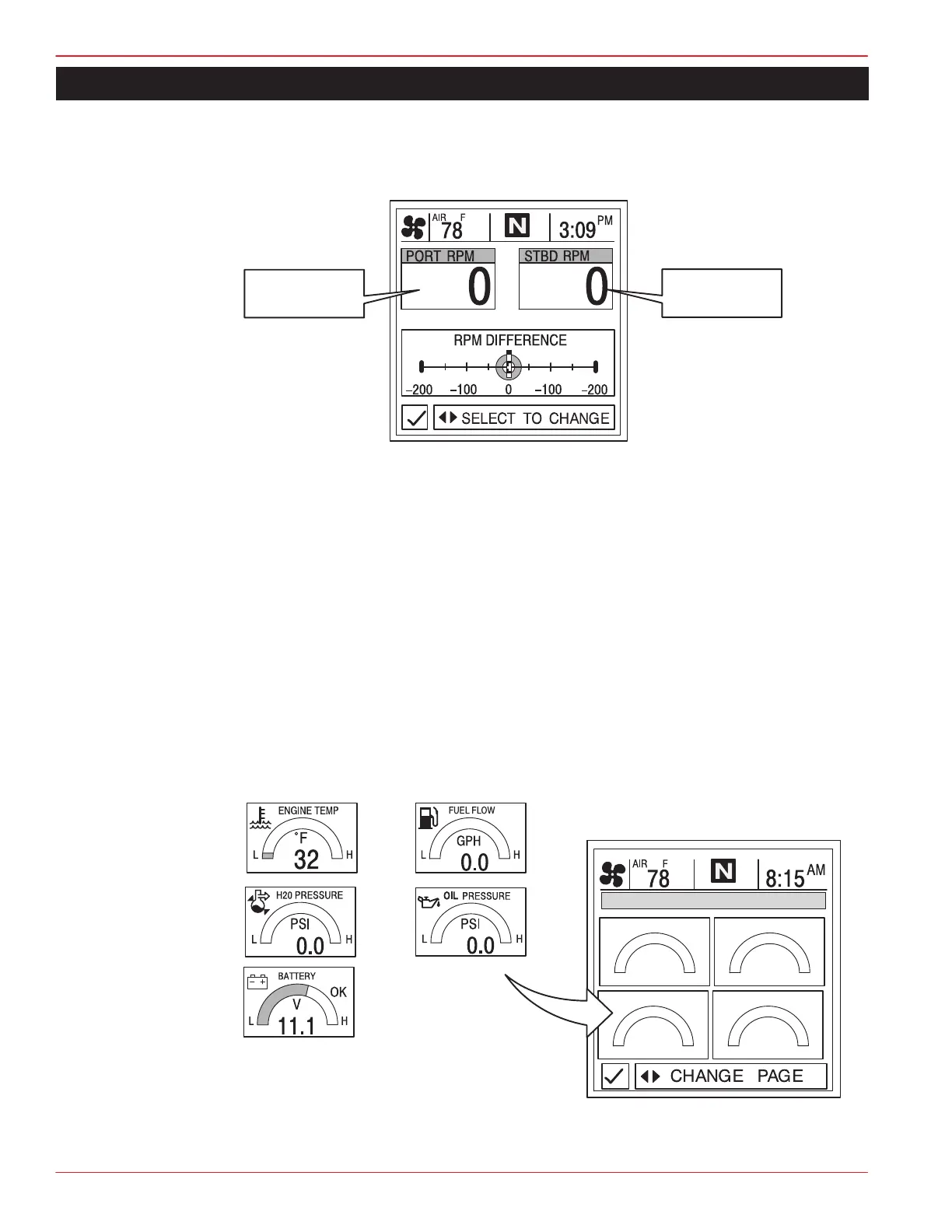

Engine RPM Synchronizer – Twin Engine
This screen displays the difference in engine speed (RPM) between the port and starboard en-
gines. Allows throttle adjustments to keep each engine running uniformly.
Starboard
Engine
Port
Engine
Engine Data Screen(s)
Engine data screen(s) is a group of displays showing various engine data.
NOTE: Not all screens listed may be available for your type of engine.
1. ENGINE TEMP (Temperature) – Displays engine temperature. The temperature will
vary with air temperature, water temperature and operating conditions.
2. H
20 PRESSURE (Water) – Displays engine water pressure when engine is running.
3. BATTERY – Displays battery voltage level (condition) of battery.
4. FUEL FLOW – Displays current estimated engine fuel consumption in U.S. Gallons per
hour (Gal/hr) or Liters per hours (Ltr/hr).
5. OIL PRESSURE – Displays engine oil pressure when the engine is running. The oil
pressure may vary with engine speed, outside temperature and oil viscosity. While the
engine is warming up, the oil pressure will be higher than when the engine is at normal
operating temperature.
4
1
5
2
3
To Next Page
