Active Alarms
Active Alarms
The ACTIVE ALARMS screen displays all active alarms. The active alarm message will
alert the operator to the potential problem.
When a problem is detected with the system, the System View will alert the operator to the
potential problem by displaying the alarm data in the information window, located at the bot-
tom of the view screen. Refer to the
Engine Operation, Maintenance Manual
for explanation
of the problem and the correct action to take
.
If problem can cause immediate engine damage, the Engine Guardian System will respond to
the problem by limiting engine power. Immediately reduce throttle speed to idle. Refer to the
En-
gine Operation, Maintenance Manual
or alarm messages following, for further explanation
of the problem and the correct action to take.
To view active alarms:

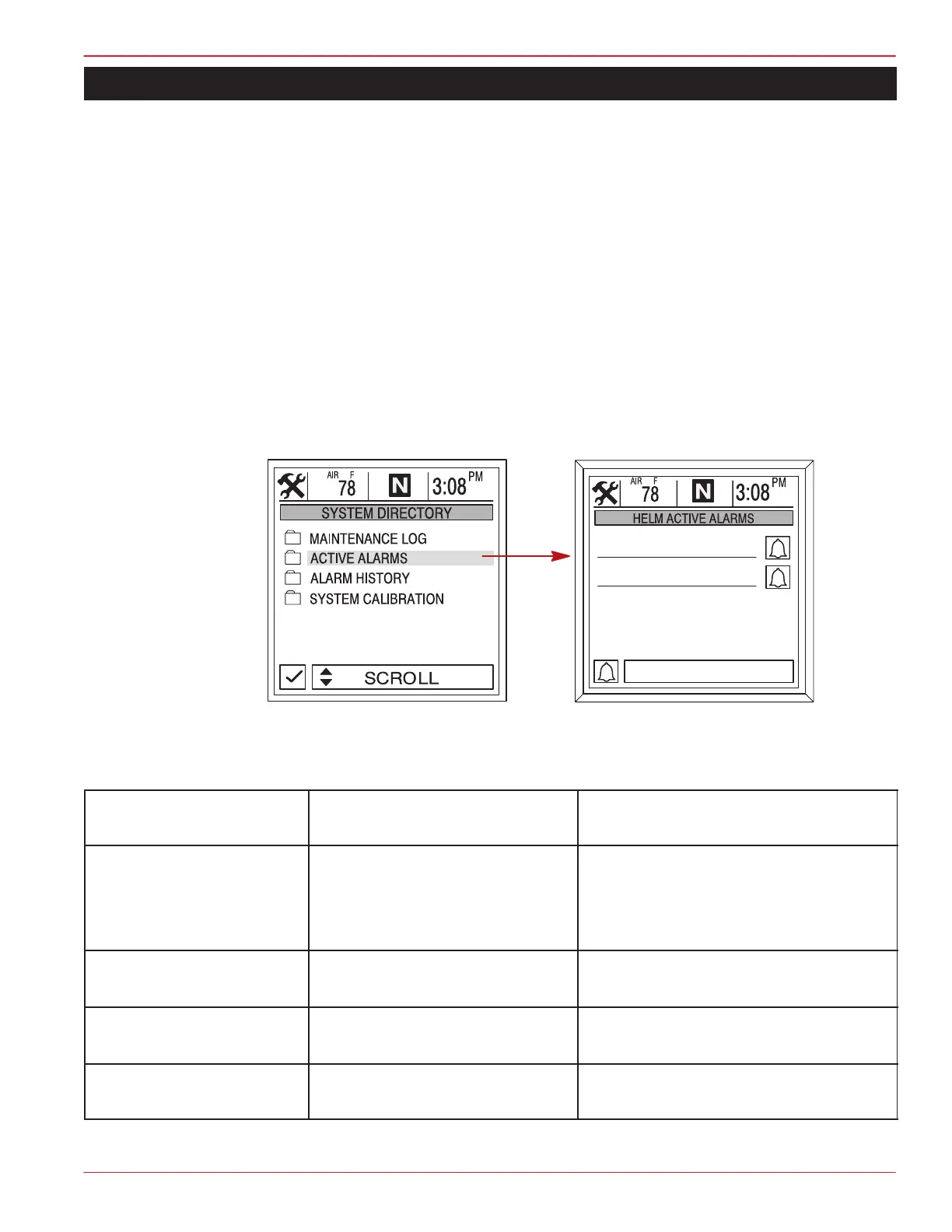

1. Open the ACTIVE ALARMS directory. The directory will displays all active alarms.
1
Helm Active Alarms
NOTE: Not all active alarms listed may be available for your type of engine.
Alarm Message
(Pop-Up Screen)
Helm Active Alarm Description
PUMP ALARM OIL PUMP OUTPUT
The oil pump has stopped functioning
electrically (2-cycle outboards). No lubri-
cating oil is being supplied to the en-
gine.
INJECTOR ALARM DINJ 1–6 OPEN/SHORT
FINJ 1–6 OPEN/SHORT
Engine problem occurred. Have the en-
gine checked by your dealer.
SENSOR ALARM
Active alarm will display the sen-
sor that is at fault
Engine problem occurred. Have the en-
gine checked by your dealer.
IGNITION ALARM
Active alarm will display the igni-
tion component that is at fault
Engine problem occurred. Have the en-
gine checked by your dealer.
