NAVIGATION/FUEL
Page 5-6 90-892133 JULY 2003
Navigation/Fuel Data Screens

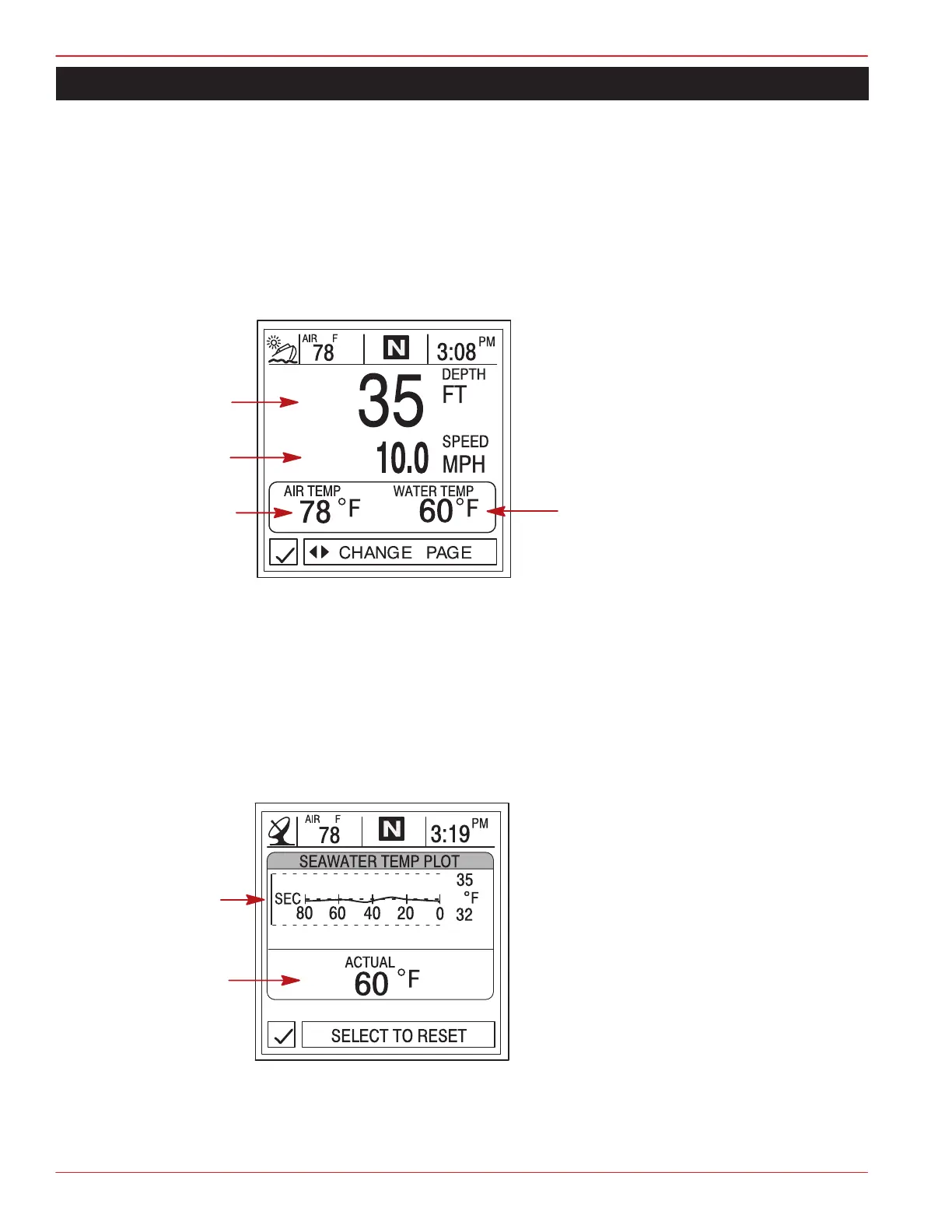

Environment
This screen displays speed, depth, air, and sea water temperature.
1. Displays depth of water.
2. Displays speed of the boat.
3. Displays the air temperature.
4. Displays the sea water temperature.
1
2
3
4
Seawater Temperature Plot
SEAWATER TEMP PLOT displays a plot of seawater temperature vs. time as recorded over
the last 80 seconds. Also displays the current water temperature.
1. Displays sea water plot line.
2. Displays current water temperature.
1
2
