GETTING STARTED
90-892133 JULY 2003 Page 2-3
Display Screens
Home Page Screen

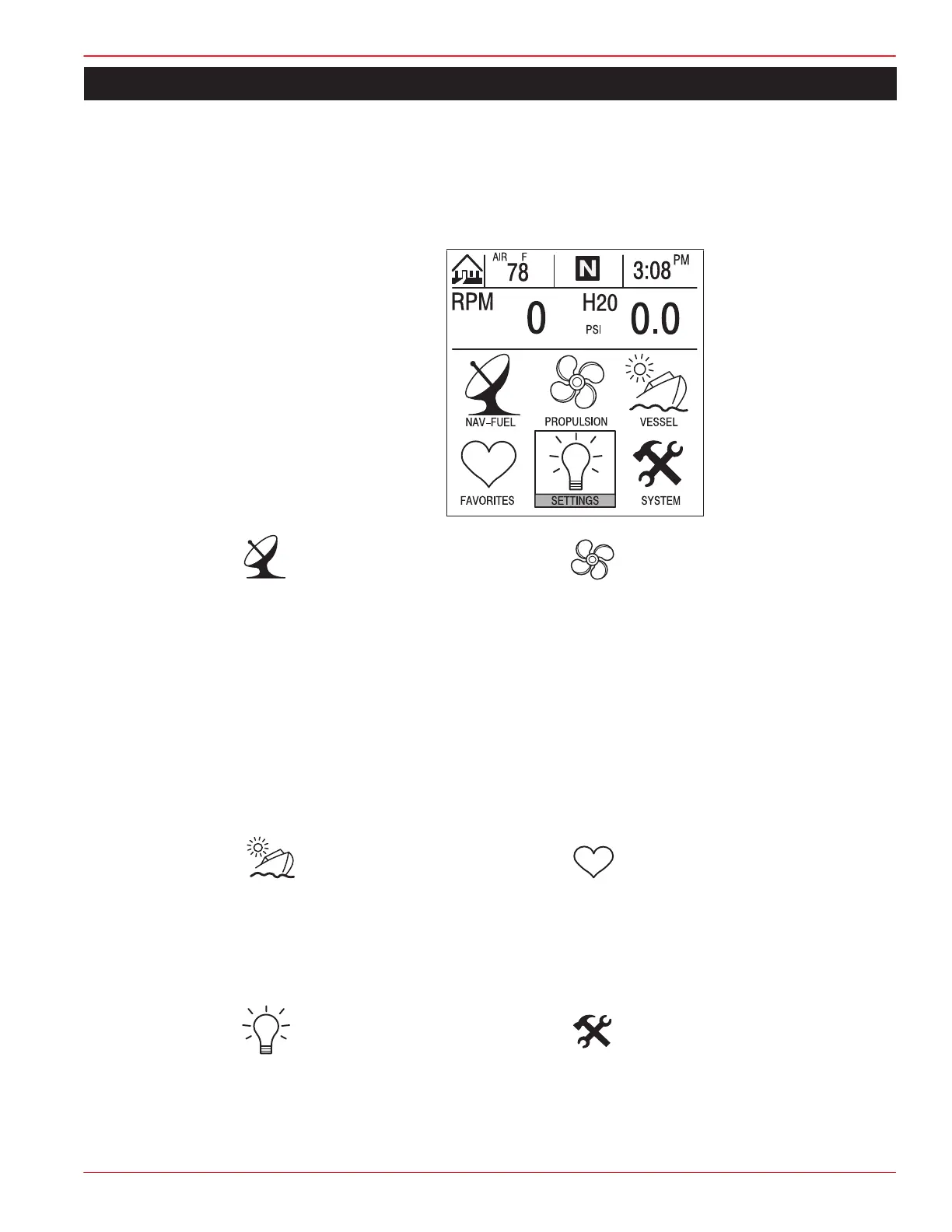

Across the bottom half of the home page you will find six on-screen main directory selec-
tions.
Use the trackpad to highlight the directory choice. Press SELECT to accept your choice and
to open the directory screen.
• Engine RPM combined with boat speed
• Twin engine synchronizer display
• Peak boat speed in conjunction with
peak engine RPM
• Engine data
• Troll control
• Trim position
• Steering angle display (Sterndrive only)
• Fuel tank, water tank, and waste
water tank level display
• Vessel information
• Direction to target waypoint information
shows present course and current
speed on a graphic compass rose
• Shows distance, time, speed, and fuel
to next waypoint
• Resettable trip history shows miles
per hour, miles per gallon, elapsed drive
time and amount of fuel consumed on
current trip
• Water depth with depth history graph
• Sea water temperature
• Collection of Screens Selected
by the User
• Maintenance Log
• Active Alarms
• Alarm History
• System Calibration
• Contrast/Lighting/Clock
• Units/Language/Offsets
• Sensors
• Favorites/Page Status
NAV–FUEL (See Section 5)
VESSEL (See Section 4)
SETTINGS (See Section 6)
PROPULSION (See Section 3)
FAVORITES (See Section 6)
SYSTEM (See Section 7)
