INSTALLATION
Page 8-6 90-892133 JULY 2003

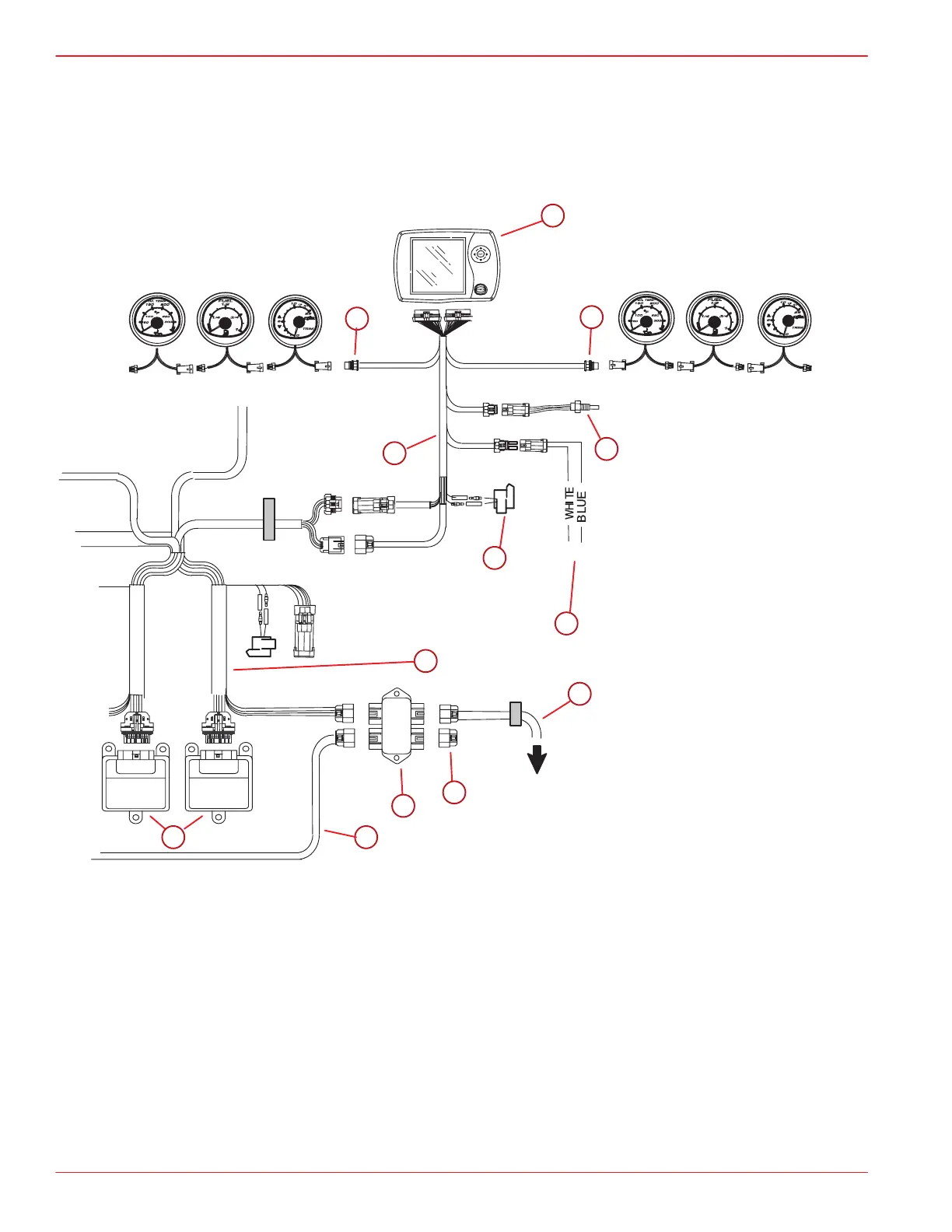

Wiring
ELECTRONIC THROTTLE/SHIFT MODELS –
TWIN ENGINES
NOTE: Extension Wiring Harnesses for the System Link gauges are available in 3 ft, 10 ft
and 30 ft lengths. (84-880756b-3,10,30)
–
+
e
a
b
c
d
f
g
h
i
j
k
l
m
a-System view
b-Display harness
c-System link gauge connection – (starboard)
d-System link gauge connection – (port )
e-GPS (Optional) connection
f-Horn – (provided with display harness)
g-LInk harness
h-Weather cover
i-Junction box
j-SC data cable – (from starboard engine)
k-Air temperature sensor – (provided with display harness)
l-DTS Command Module
m-DTS Command Module Harness
To Next Page
