Mercusys MW302R User Manual

3
Chapter 1
Name Status Indication
(WAN)
Off
Router Mode/Access Point Mode: The WAN port is not connected.
Range Extender/WISP Mode: The router is not connected to the host network.
Flashing
Router Mode: The WAN port is connected, but internet is not available.
WISP Mode: Internet is not available.
On
Router/WISP Mode: Internet is available.
Access Point Mode: The WAN port is connected.
Range Extender Mode: The router is connected to the host network.
(LAN)
Off Neither LAN port is connected.
On At least one LAN port is connected.
* To avoid device damage, do not disconnect or power off your router during upgrade.

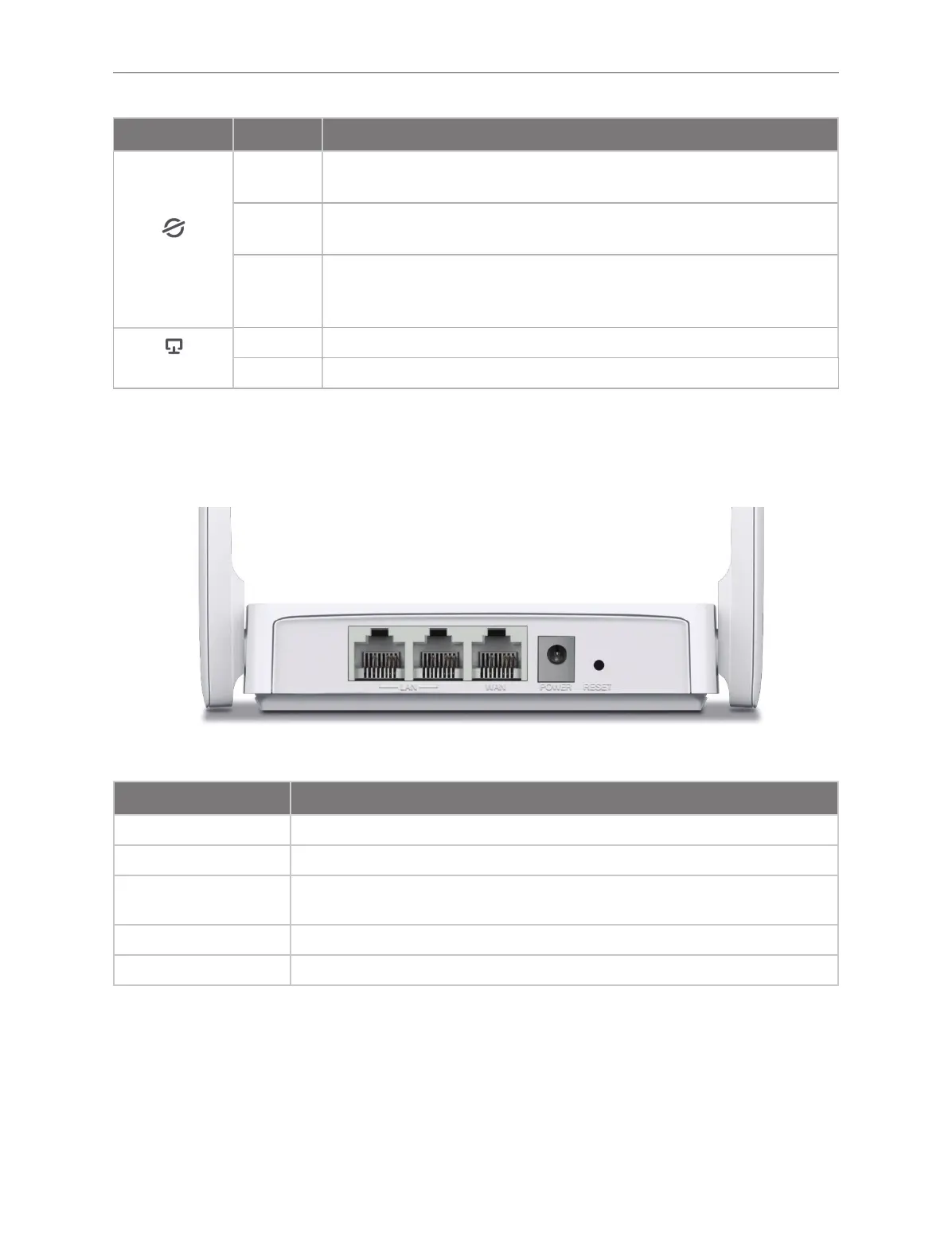

1. 2. 2. The Rear Panel
The following items are located on the rear panel (View from left to right).
Item Description
LAN Ports These ports connect the router to the local devices.
WAN Port This port is where you will connect the router to the DSL/cable Modem, or Ethernet.
POWER Socket
The power socket is where you will connect the power adapter. Please use the
power adapter provided with this router.
RESET Button Press and hold this button for more than 5 seconds to reset the router.
Wireless Antennas To receive and transmit the wireless data.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
