Mercusys MW302R User Manual

52
Chapter 4

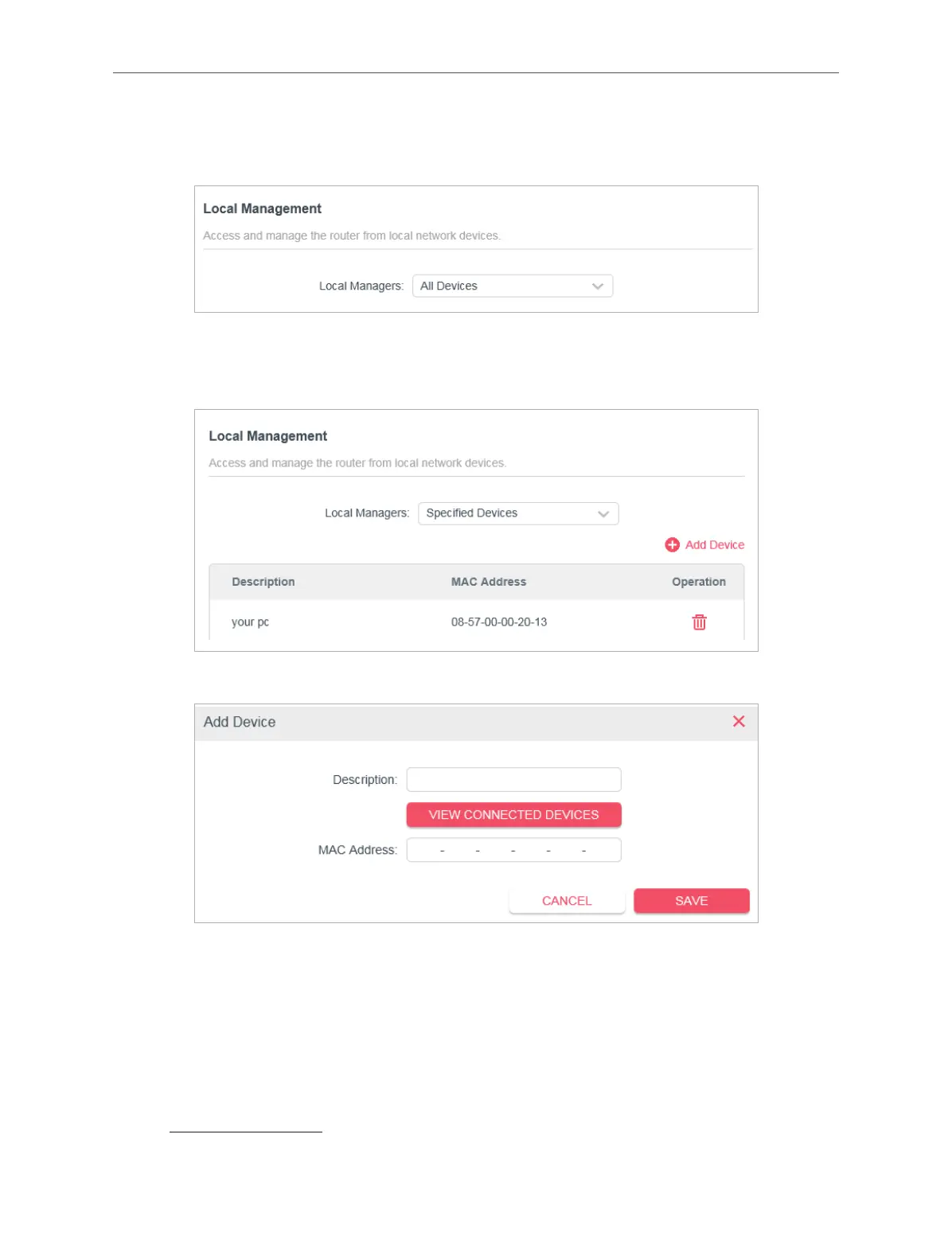

• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers.
• Allow specific devices to manage the router:
1. Select Specified Devices for Local Managers and click SAVE.
2. Click Add Device.
3. Click VIEW CONNECTED DEVICES and select the device to manage the router from the
Connected Devices list, or enter the MAC address of the device manually.
4. Specify a Description for this entry.
5. Click SAVE.
4. 9. 5. Remote Management
1. Visit http://mwlogin.net, and log in with the password you set for the router.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
