Mercusys MW302R User Manual

10
Chapter 3
Chapter 3. Log In to the Router
This chapter introduces how to log in to the web management page of the router.
With the web-based utility, it is easy to configure and manage the router. The web-based utility
can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft
the Internet Explorer, Mozilla Firefox or Apple Safari.
Follow the steps below to log in to your router.
1. Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.

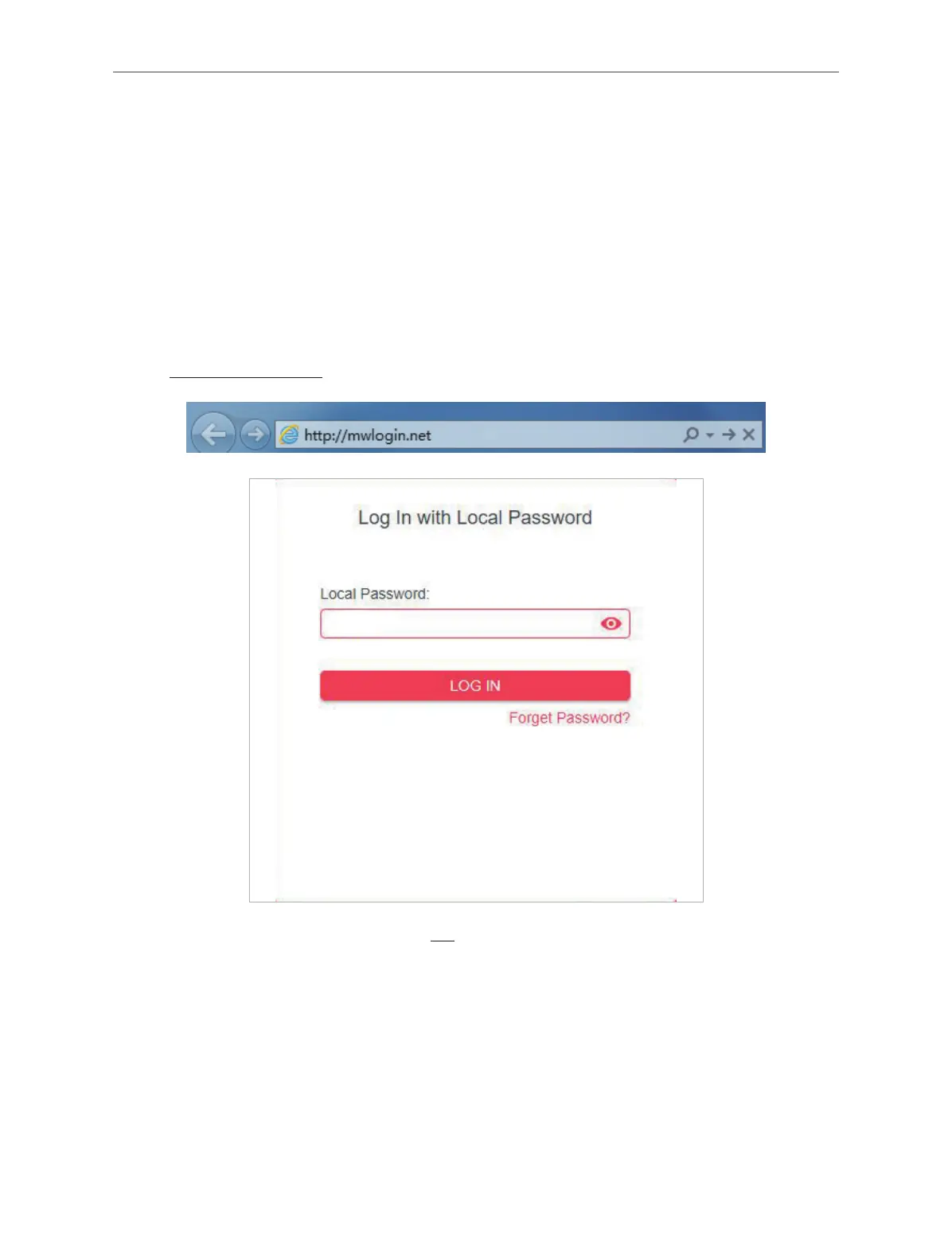

2. Visit http://mwlogin.net, and log in with the password you set for the router.
Note:
If the login window does not appear, please refer to the FAQ section.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
