Mercusys MW302R User Manual

119
Chapter 7

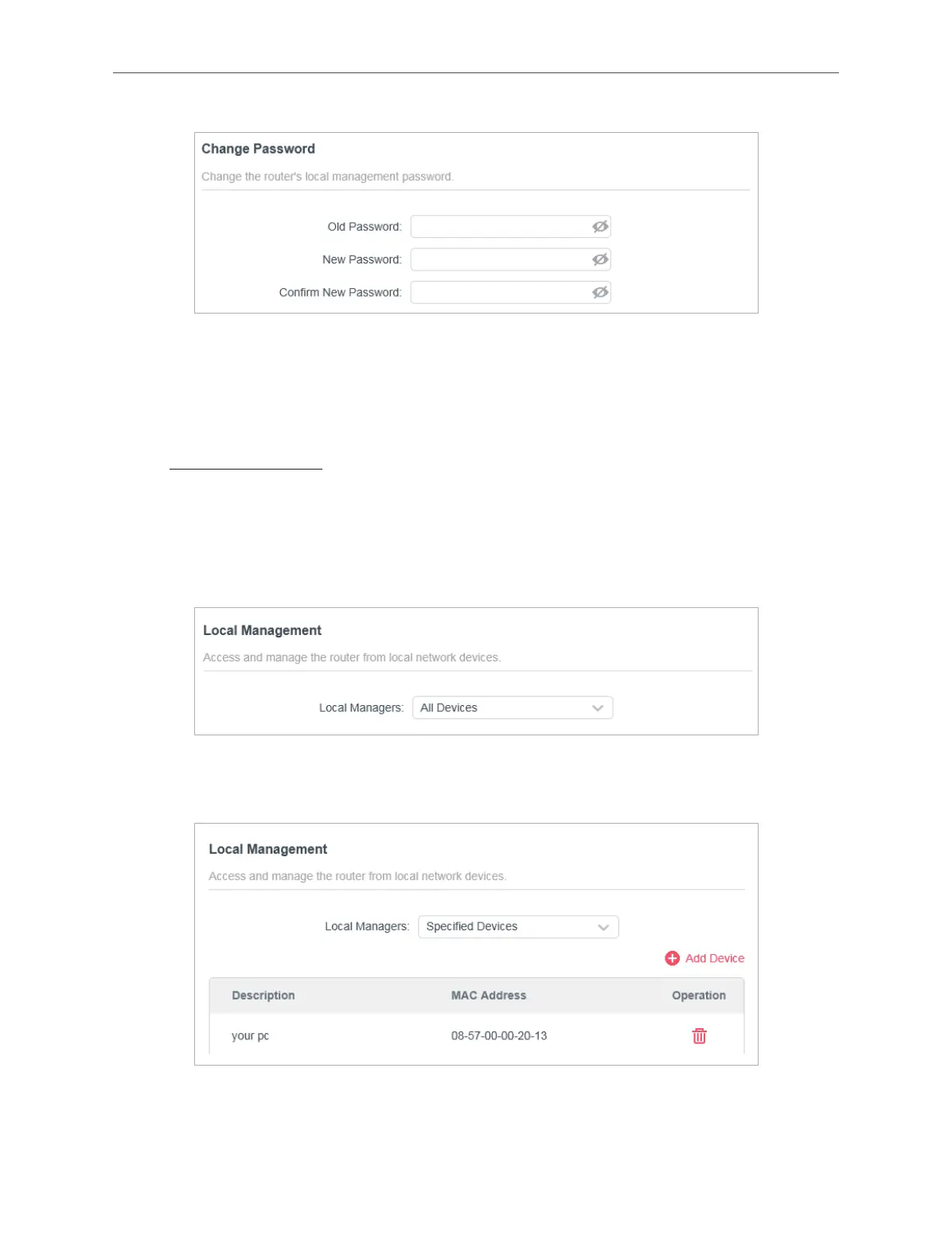

3. Enter the old password, then a new password twice (both case-sensitive). Click SAVE.
4. Use the new password for future logins.
7. 9. 4. Local Management
1. Visit http://mwlogin.net, and log in with the password you set for the router.
2. Go to Advanced > System > Administration, and focus on the Local Management
section.
• Allow all LAN connected devices to manage the router:
Select All Devices for Local Managers.
• Allow specific devices to manage the router:
1. Select Specified Devices for Local Managers and click SAVE.
2. Click Add Device.

Mercusys MW302R Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Transmit power	20 dBmW
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	3
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	0.6 A
Output voltage	5 V
Power source type	DC
Security algorithms	WPA-PSK, WPA2-PSK
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)

Weight and Dimensions

Depth	94 mm
Width	114 mm
Height	26 mm
