5 Disassembly
Rear Output Shaft
1. Heat the bearing lock nut slightly to soften the locking compound
and remove the lock nut using “Bearing Lock Nut Socket”, tool
number 866-0687-004 page 53. Figure 5.41.

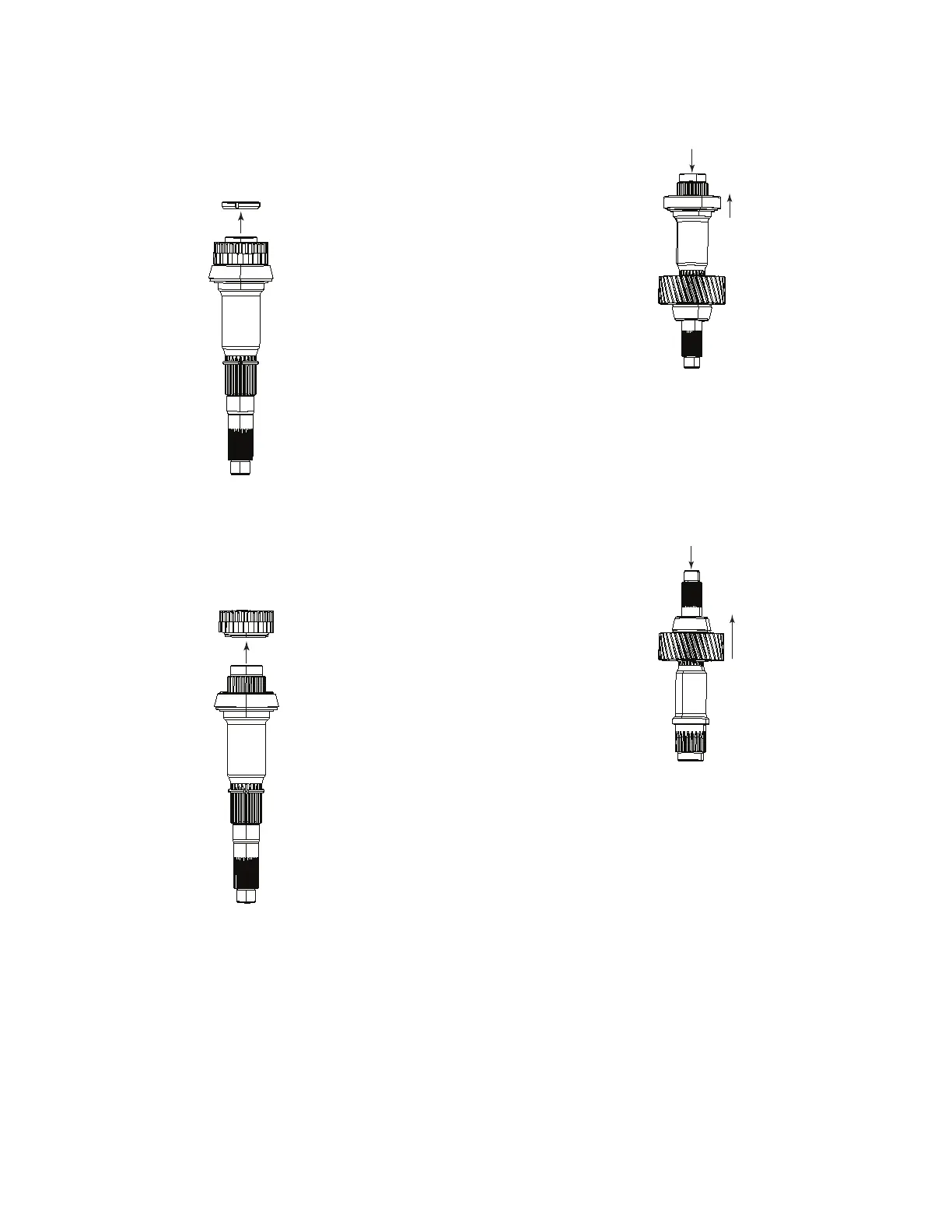

4018303a
Figure 5.41
2. Remove front declutch gear along with the speedometer tone ring.
Figure 5.42.
4018304a
Figure 5.42
3. Remove the front support bearing. Figure 5.43.
PRESS
4018232a
Figure 5.43
4. Invert the shaft to remove direct drive gear and rear support
bearing. Figure 5.44.
PRESS
4018233a
Figure 5.44
