10 Torque Specifi cations
Torque Specifi cations
(2) FRONT DECLUTCH FORK BOLTS.....50 FT-LBS
(2) RANGE SHIFT FORK BOLTS..............25 FT-LBS
(2) SHIFT PISTON RETAINING NUT........35 FT-LBS
(1) DECLUTCH SWITCH.............................8 FT-LBS
(16) HOUSING COVER PLATE..................45 FT-LBS
8 FT-LBS
4 BOLTS
8 FT-LBS
4 BOLTS
EACH SHIFTER
300 FT-LBS
300 FT-LBS
300 FT-LBS
300 FT-LBS
300 FT-LBS
50 FT-LBS
8 BOLTS
70 FT-LBS
6 BOLTS
300 FT-LBS
50 FT-LBS
12 BOLTS
8 FT-LBS
50 FT-LBS
6 BOLTS
300 FT-LBS
50 FT-LBS
6 BOLTS
4018301a
NOT SHOWN

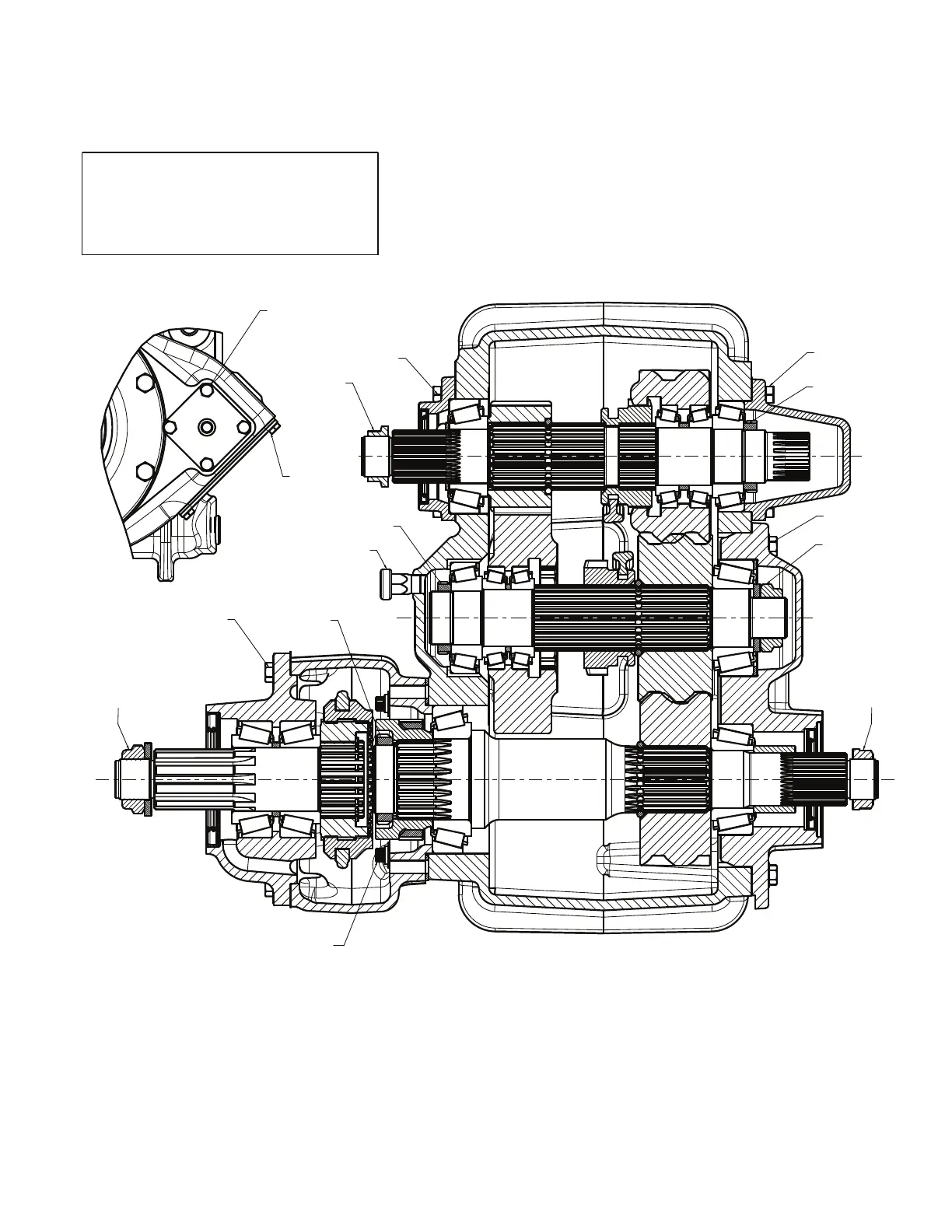

Figure 10.1
