7 Assembly
Intermediate Shaft Assembly

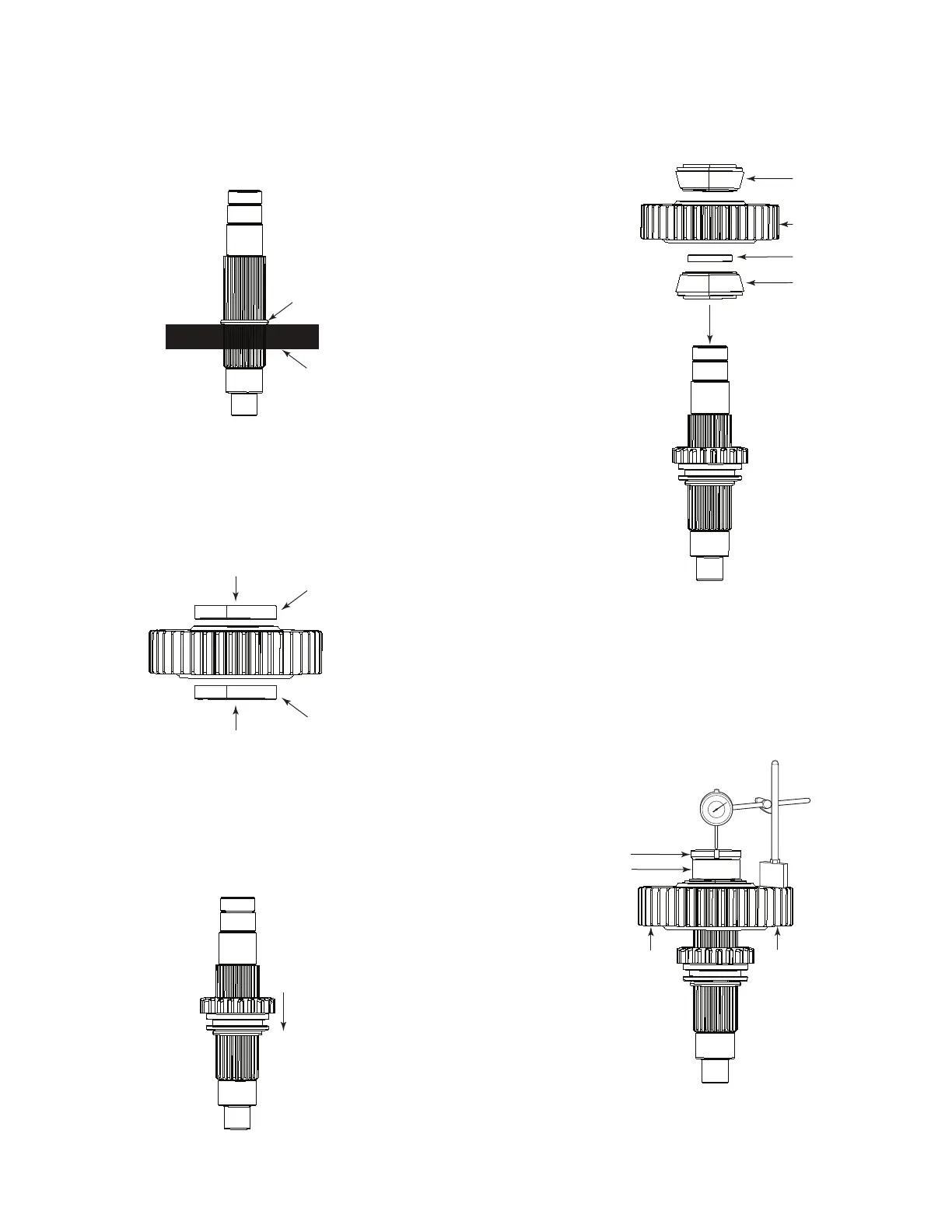

1. Slide the retaining ring onto the intermediate shaft using a press
and plate until it is seated in the groove. Figure 7.9.
Plate with
Center Hole
Retaining Ring
4018243a
Figure 7.9
2. Press the bearing cups into the under drive gear. Figure 7.10.
PRESS
Bearing Cup
Bearing Cup
PRESS
4018244a
Figure 7.10
3. Place the clutch gear onto the shaft with the groove facing the
retaining ring and the small end of the shaft. Figure 7.11.
4018245a
Figure 7.11
4. Place a heated front bearing cone onto the large end of the shaft
followed by the bearing spacer, underdrive gear assembly, and
rear bearing cone in the order shown below. Figure 7.12.
Bearing Cone
Bearing Cone
Bearing Spacer
Underdrive
Gear Assembly
4018246a
Figure 7.12
5. Install the End Play Setup Tool (see page 58) and bearing lock
nut onto the shaft and torque to specifi cations. Measure the end
play using a dial indicator as shown below. Place the indicator
stand base on the gear face. Figure 7.13.
LIFT
LIFT
Endplay
Setup Tool
Bearing
Lock Nut
4018247a
Figure 7.13
