7 Assembly
General Assembly

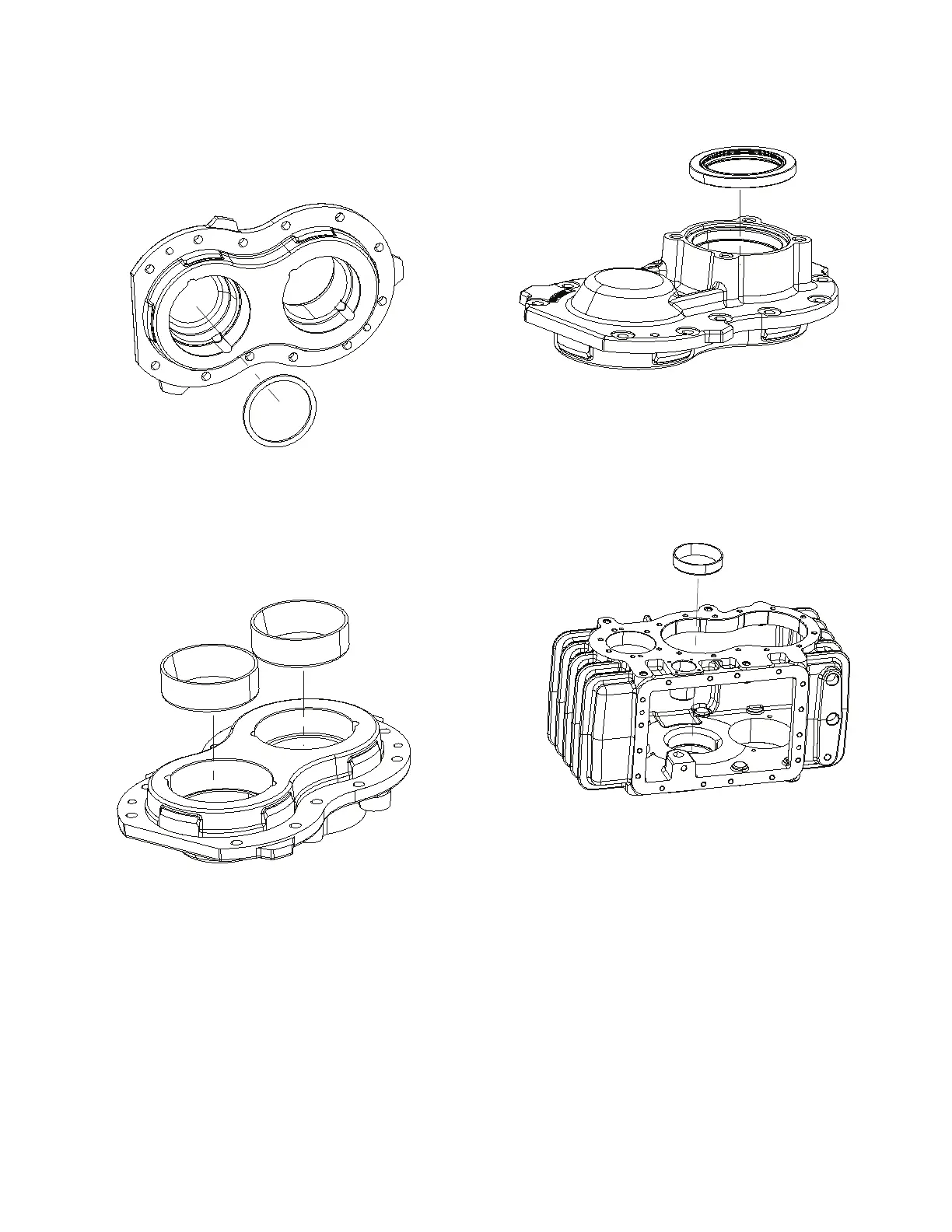

1. If the bearing cups were removed from the rear carrier, re-install
the shim stack into the intermediate shaft rear bearing bore.
Figure 7.25.
4018259a
Figure 7.25
2. Install the bearing cups into the rear housing using the Rear
Housing Bearing Cup Driver shown on page 55. Figure 7.26.
4018260a
Figure 7.26
3. Turn the rear housing over and install a new rear output seal.
Figure 7.27.
4018261a
Figure 7.27
4. Install the intermediate shaft front bearing cup into the main
housing using the Front Bearing Cup Driver shown on page 56.
Figure 7.28.
4018262a
Figure 7.28
