Page 32
7 Assembly

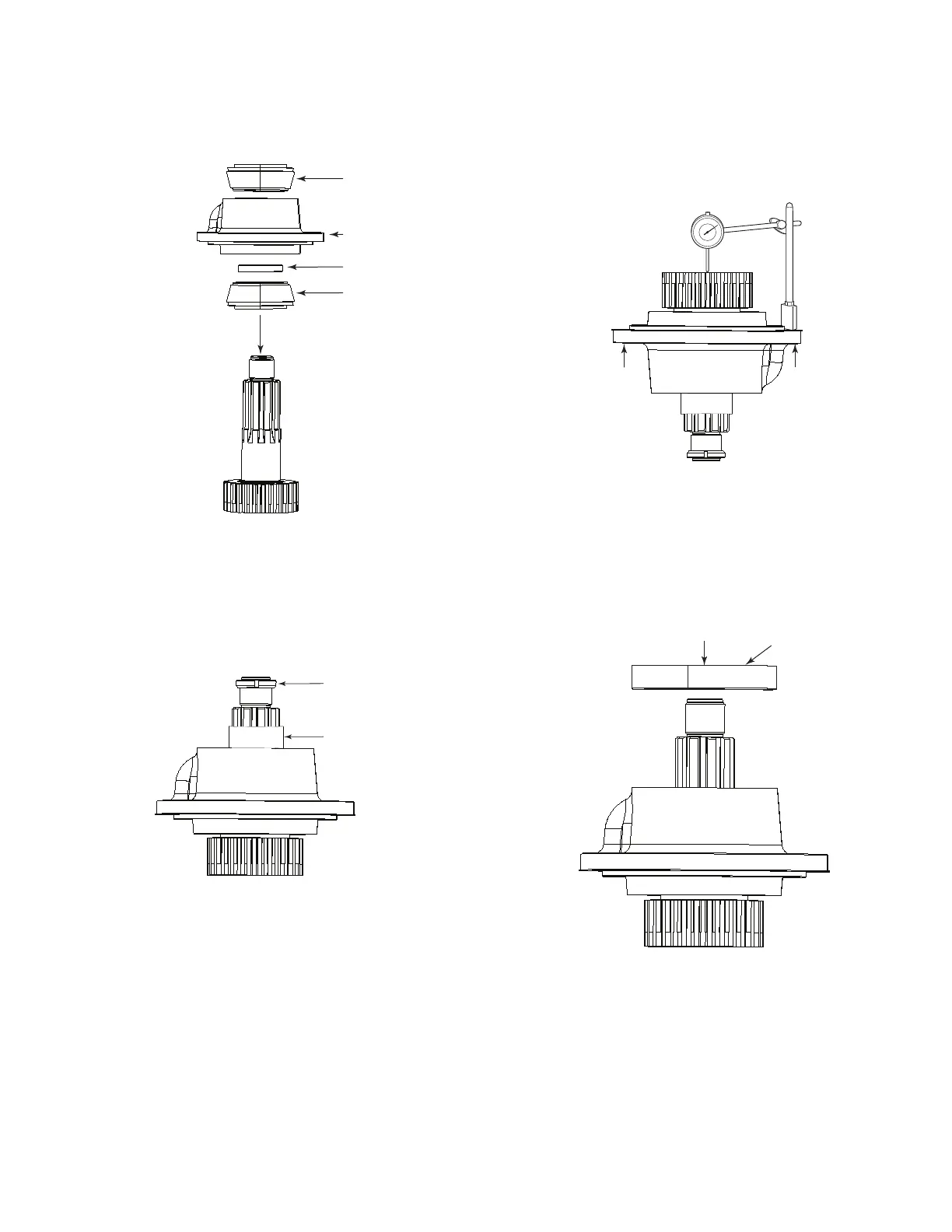

3. Install a heated inner bearing cone, bearing spacer, front output
carrier assembly, and heated outer bearing cone as shown below.
Figure 7.21.
Bearing Cone
Bearing Cone
Bearing Spacer
Front Output
Carrier Assembly
4018255a
Figure 7.21
4. Install the End Play Setup Tool (see page 58) or front output
yoke and lock nut. Using a fi xture to hold the front output
assembly, torque the lock nut to specifi cation. Figure 7.22.
Endplay
Setup Tool
Bearing
Lock Nut
4018256a
Figure 7.22
5. Turn the shaft over and use a dial indicator to measure the shaft
end play. The clearance should be 0.002-0.004” (0.050-0.100
mm) loose. If the end play is not within specifi cation, a bearing
spacer ring of a different thickness will need to be used. Figure
7.23.
LIFT
LIFT
4018257a
Figure 7.23
6. Remove the lock nut, spacer, and the End Play Setup Tool.
7. Install a new front output seal. Figure 7.24.
PRESS
Seal
4018258a
Figure 7.24
