Meritor MTC Series - Rear Output Shaft Assembly

Copyright Meritor, Inc., 2021Printed in USA
MM-2034 / Issued 02-21
Page 30
7 Assembly
6. Gear end play should be 0.000-0002” (0.0508mm) loose. If the
end play is not within the specifi cations, the gear and rear bearing
will need to be removed and a bearing spacer of a different
thickness used.
7. Remove the bearing lock nut, spacer, and the End Play Setup Tool.

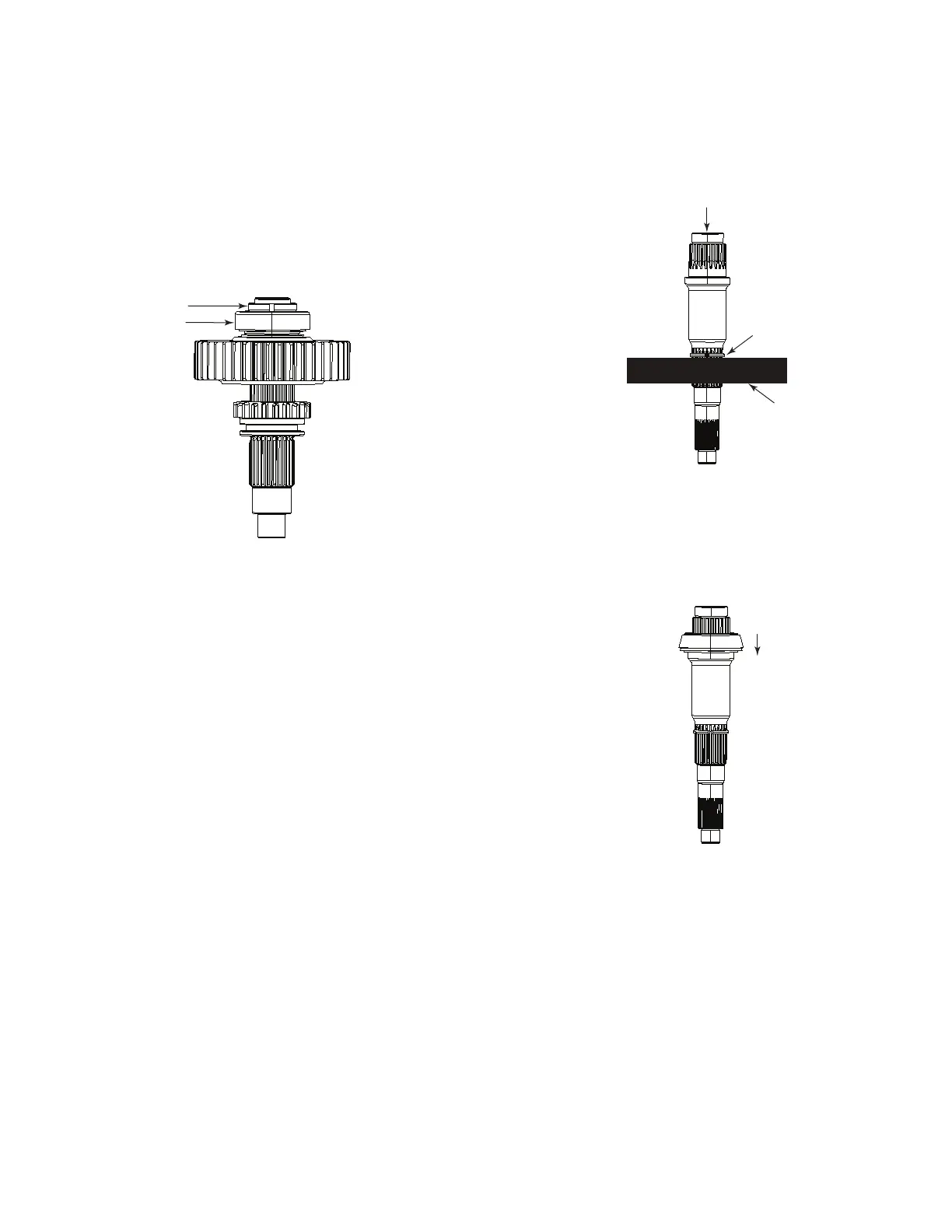

8. Install a heated bearing onto the shaft. Install the bearing lock
nut using Loctite 290 threadlocker on the threads and torque to
specifi cation. Figure 7.14.
Bearing
Bearing
Lock Nut
4018248a
Figure 7.14
Rear Output Shaft Assembly
1. Slide the retaining ring onto the intermediate shaft using a press
and plate until it is seated in the groove. Figure 7.15.
PRESS
Retaining Ring
in Shaft Groove
Plate with
Center Hole
4018249a
Figure 7.15
2. Install a heated bearing onto the shaft so that it is seated against
the shoulder. Figure 7.16.
4018250a
Figure 7.16
