7 Assembly

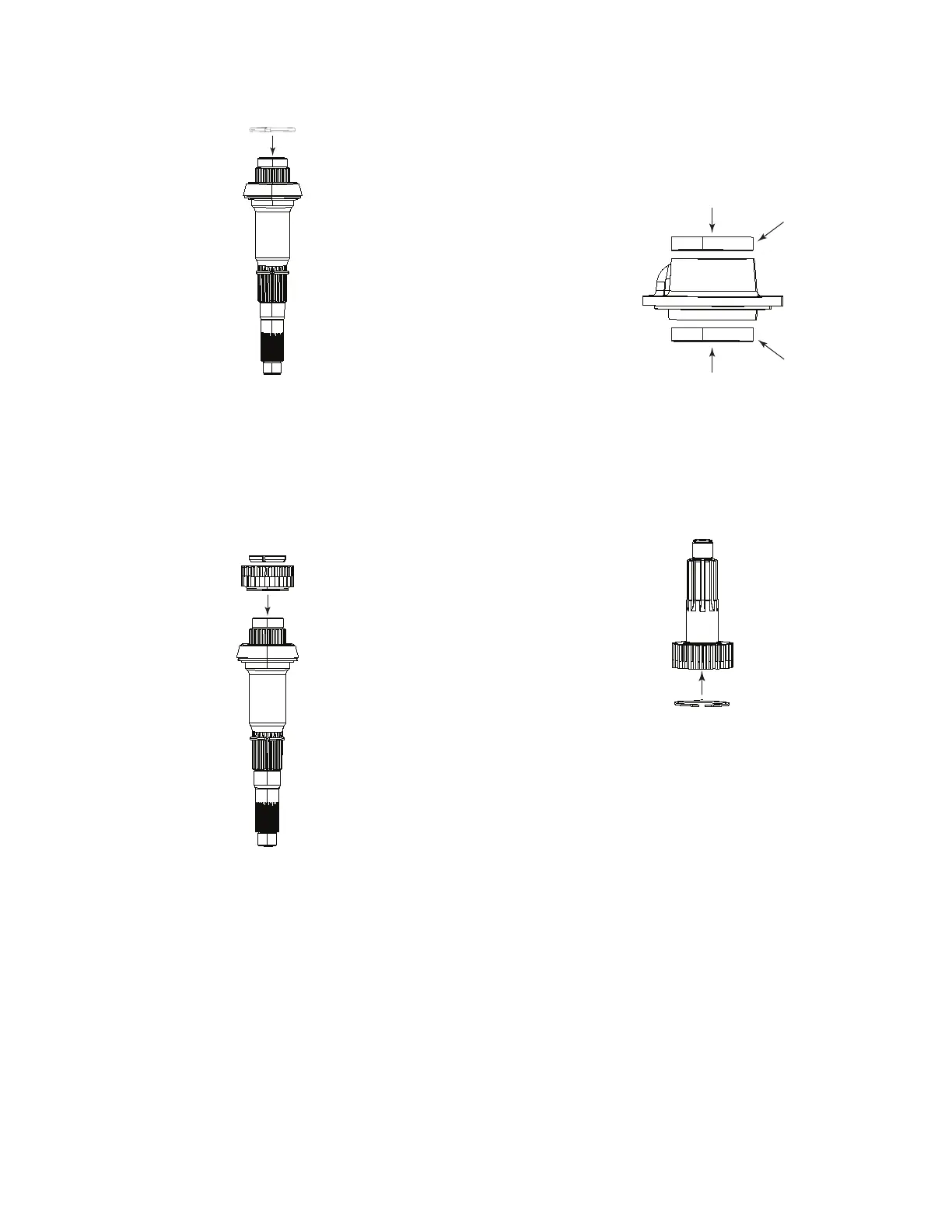

3. Install the retaining ring into the groove on shaft. Figure 7.17.
4018251a
Figure 7.17
4. Install the front declutch gear assembly with the lock nut using
the Bearing Lock Nut Socket 866-0687-004 shown on page
53 and Loctite 290 threadlocker on the threads. Torque to
specifi cation. Figure 7.18.
4018252a
Figure 7.18
Front Output Shaft Assembly
1. Press bearing cups into the front output carrier using the Front
Output Bearing Cup Driver shown on page 57. Figure 7.19.
PRESS
Bearing Cup
Bearing Cup
PRESS
4018253a
Figure 7.19
2. Install the snap ring and front output shaft gear onto the front
output shaft. Figure 7.20.
4018254a
Figure 7.20
