7 Assembly
5. Rotate the housing and place into a suitable assembly stand or on
a sturdy workbench. Figure 7.29.
4018195a

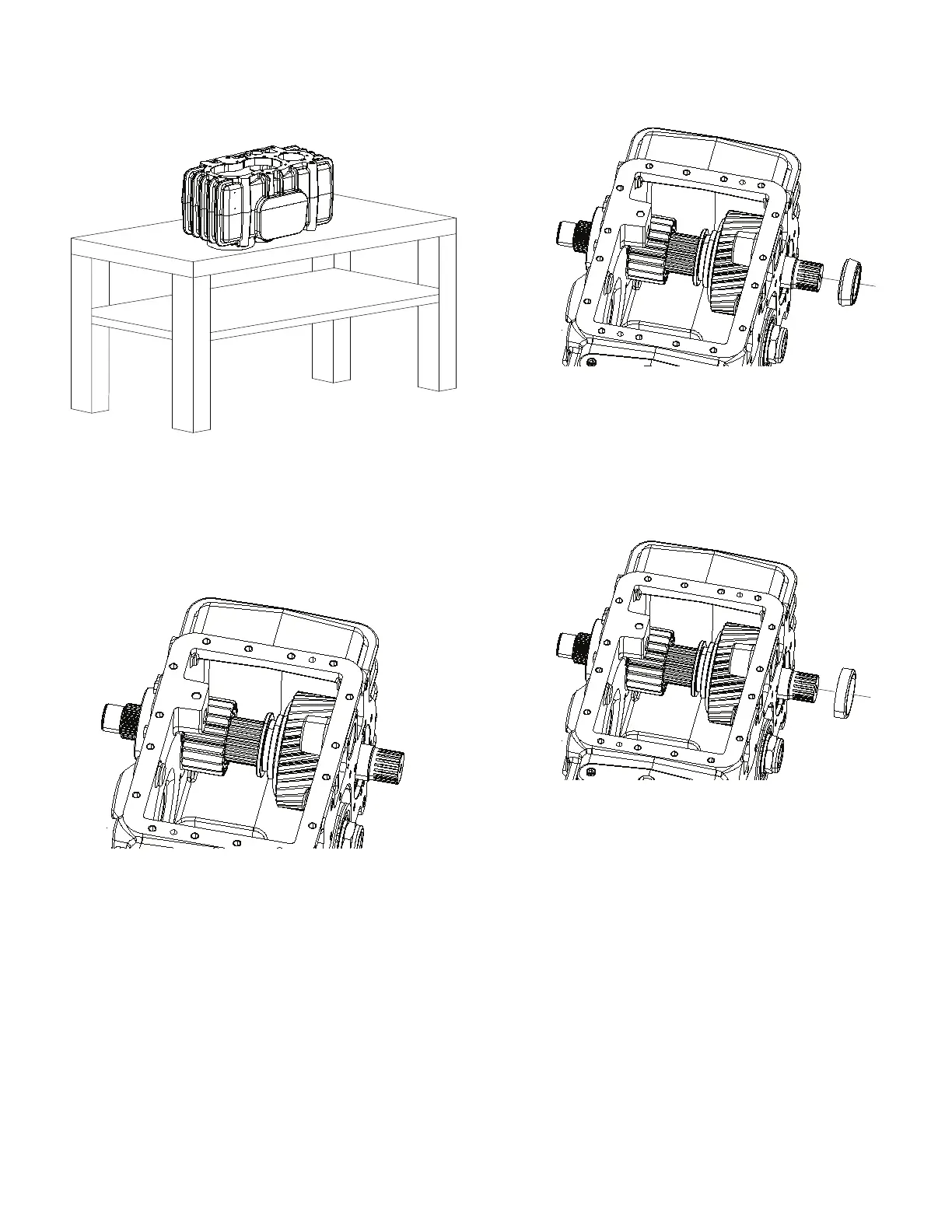

Figure 7.29
6. Place the direct drive gear into the housing. Install the input shaft
into the housing while passing it through the direct drive gear.
Figure 7.30.
4018263a
Figure 7.30
7. Reinstall the rear bearing onto the input shaft. Figure 7.31.
4018264a
Figure 7.31
8. Install the front bearing cup into the housing, leaving it protruding
slightly. Figure 7.32.
4018265a
Figure 7.32
