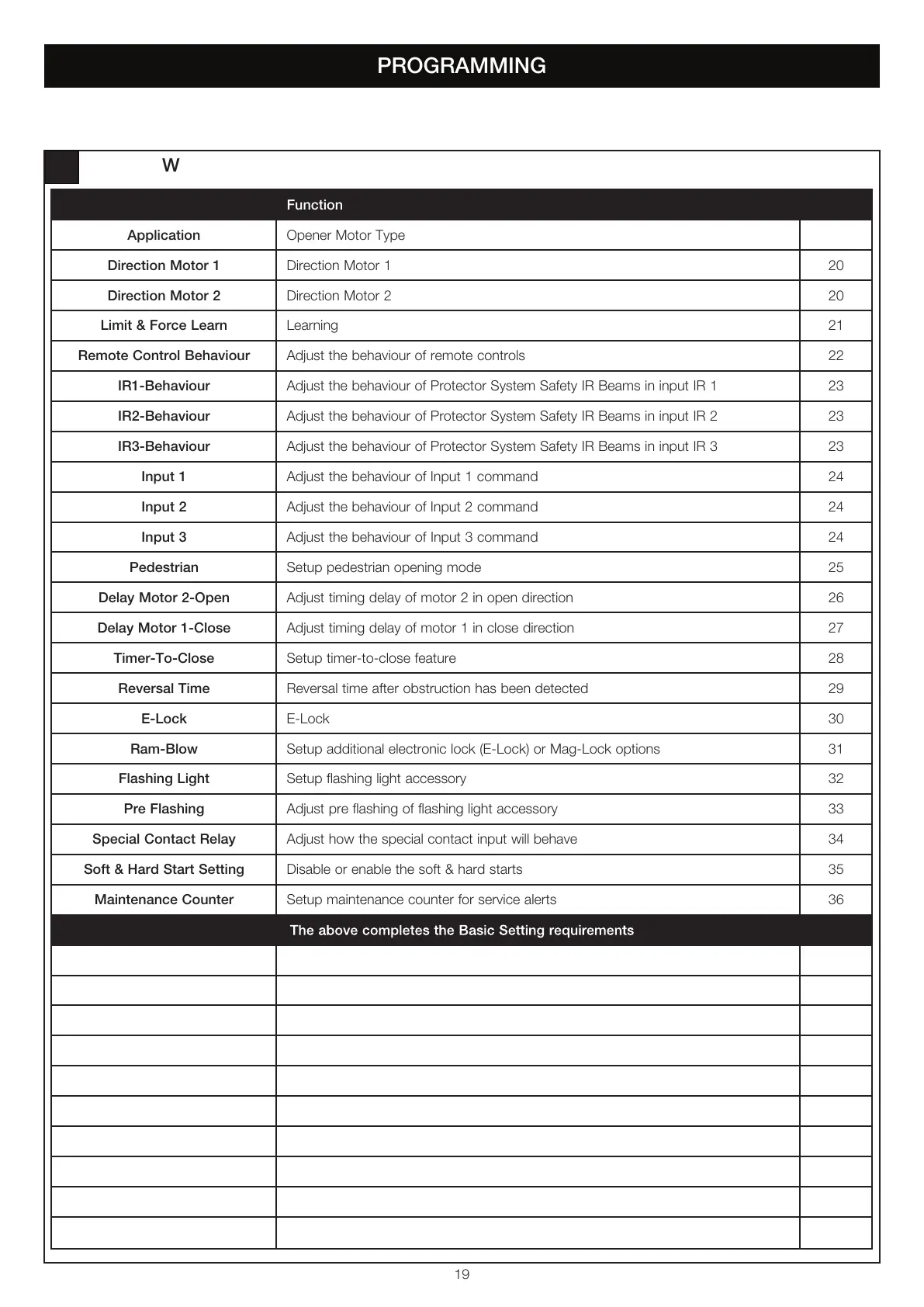

PROGRAMMING
OVERVIEW
19
Legend Function Section
Application Opener Motor Type 20
Direction Motor 1 Direction Motor 1 20
Direction Motor 2 Direction Motor 2 20
Limit & Force Learn Learning 21
Remote Control Behaviour Adjust the behaviour of remote controls 22
IR1-Behaviour Adjust the behaviour of Protector System Safety IR Beams in input IR 1 23
IR2-Behaviour Adjust the behaviour of Protector System Safety IR Beams in input IR 2 23
IR3-Behaviour Adjust the behaviour of Protector System Safety IR Beams in input IR 3 23
Input 1 Adjust the behaviour of Input 1 command 24
Input 2 Adjust the behaviour of Input 2 command 24
Input 3 Adjust the behaviour of Input 3 command 24
Pedestrian Setup pedestrian opening mode 25
Delay Motor 2-Open Adjust timing delay of motor 2 in open direction 26
Delay Motor 1-Close Adjust timing delay of motor 1 in close direction 27
Timer-To-Close Setup timer-to-close feature 28
Reversal Time Reversal time after obstruction has been detected 29
E-Lock E-Lock 30
Ram-Blow Setup additional electronic lock (E-Lock) or Mag-Lock options 31
Flashing Light Setup flashing light accessory 32
Pre Flashing Adjust pre flashing of flashing light accessory 33
Special Contact Relay Adjust how the special contact input will behave 34
Soft & Hard Start Setting Disable or enable the soft & hard starts 35
Maintenance Counter Setup maintenance counter for service alerts 36
The above completes the Basic Setting requirements
Password Setup, enter and change password in order to enter into the Advance settings 37
Force Motor 1-Open (PW) Adjust the forces of motor 1 in open direction 38
Force Motor 1-Close (PW) Adjust the forces of motor 1 in close direction 38
Force Motor 2-Open (PW) Adjust the forces of motor 1 in open direction 38
Force Motor 2-Close (PW) Adjust the forces of motor 2 in close direction 38
Speed-Motor 1 & 2 Open (PW) Adjust the speed of motor 1 and 2 in open direction 39
Speed-Motor 1 & 2 Close (PW) Adjust the speed of motor 1 and 2 in close direction 40
Soft Stop Speed (PW) Adjust the soft speed, which is the remaining speed towards the end of the travel 41
Factory Reset Reset opener 42
Finish and Exit Complete and exit screen N/A
