Installing AP832i

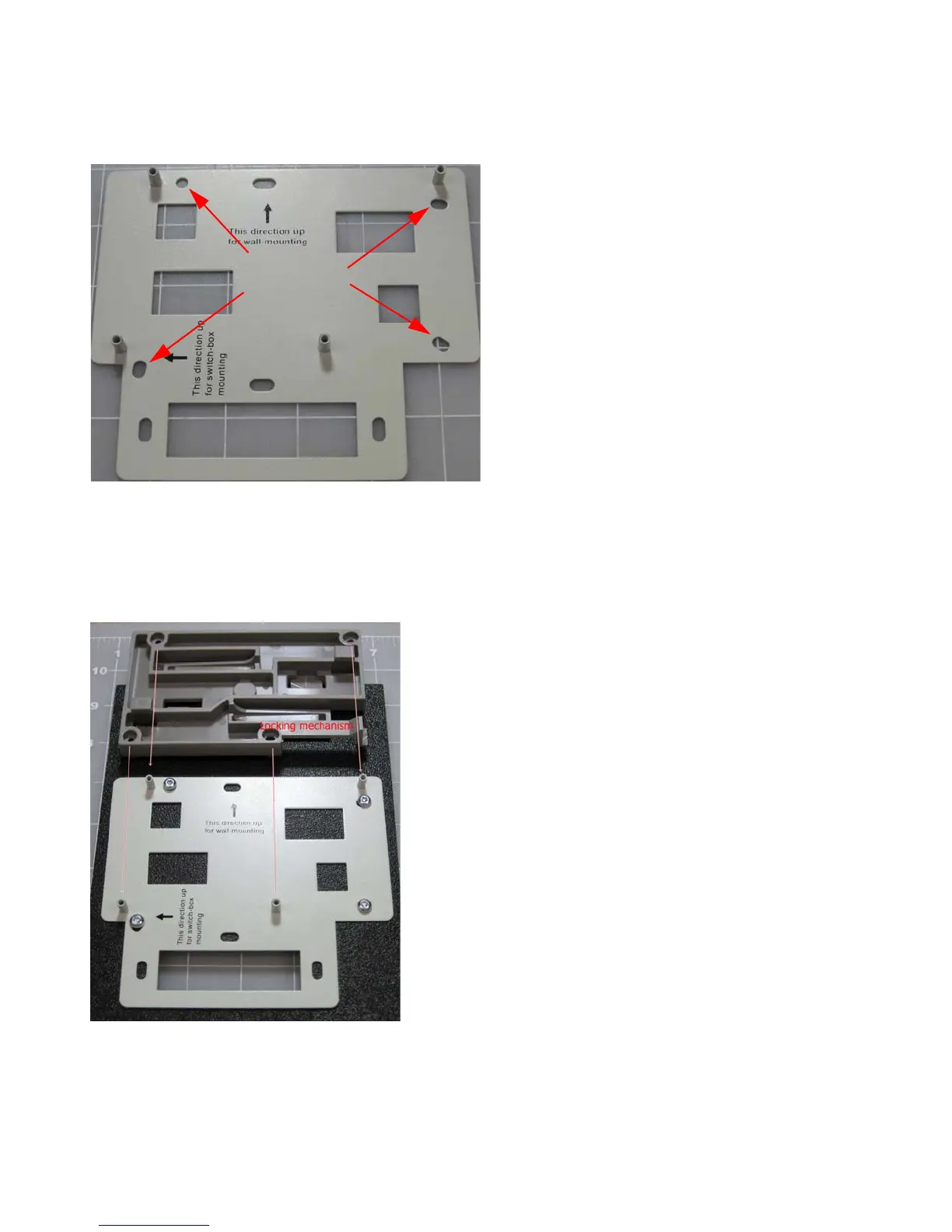

Figure 11: AP832 Wall Bracket
2. Attach the bracket to the wall using screws at the appropriate screw locations as indicated in
Figure 11. Recommend #6, #8 (M3, M3.5).
3. Locate the 650-00232 15/16" T-Bar Adapter/Wall Mount component and attach it to the raised
screw locations on the Wall Mount plate. See Figure 12.
Figure 12: Attaching the AP Mount to the Wall Mount
4. Screw the plastic component into place on the metal bracket.
