Installing AP832i
© 2013 Meru Networks, Inc. Installing AP832i xxi
5. Run the Ethernet and power cable (if using one) through the rectangular opening at the bottom of
the Wall Mount bracket and connect them to their corresponding ports on the underside of the AP.
6. Press the Receiving Slots on the underside of the AP (indicated below) to the corresponding tabs
("Mounting Pins") on the plastic bracket. See Figure 13.

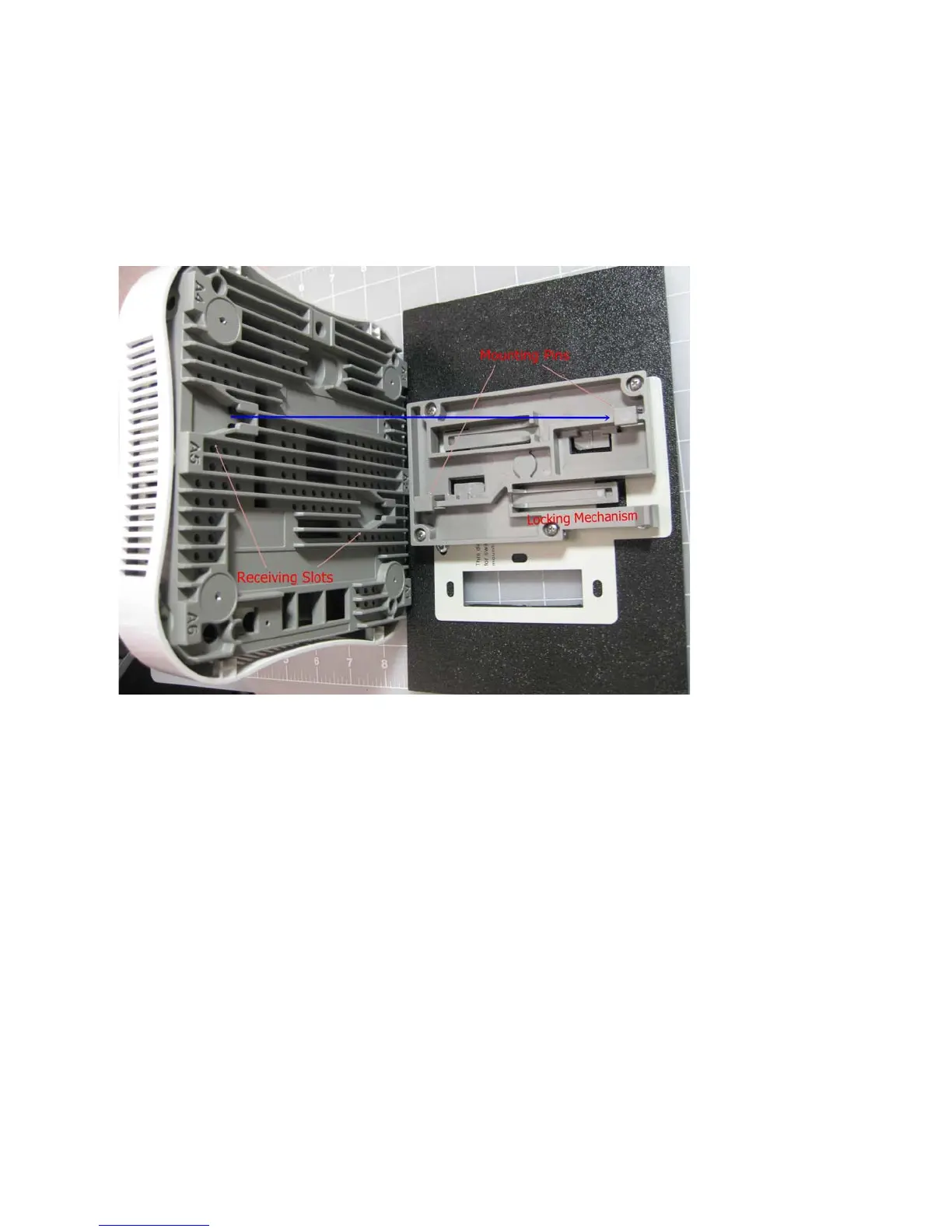

Figure 13: Attaching the AP to the Wall Mount
7. Slide the AP horizontally to lock the tabs into place.
8. If not already connected, you may now connect the Ethernet cable and DC power (if used) and
verify that the AP comes online.
Mount AP832i Below a Suspended Ceiling
The provided ceiling mounting brackets allow the AP832i to attach to suspended ceiling T-rails. The AP
ships with two different ceiling mounting bracket options to accomodate varying sizes of ceiling T-rails.
Be sure to attach the correctly-sized bracket to your AP prior to attempting to deploy it. Note that
each plastic bracket contains descriptive text to indicate the ceiling T-rail size for which it is designed.
To mount an AP832i below a suspended ceiling:
1. Determine the location on the ceiling rail where the AP will be mounted and remove the ceiling
tiles.
2. Attach the AP to the mounting bracket by pressing the bracket’s Mounting Pins (shown in Figure 13)
to the AP’s Receiving Slots and sliding the bracket until it locks in place.
3. Press the AP and bracket against the rail and twist to lock it into place.
