Install the AP832e

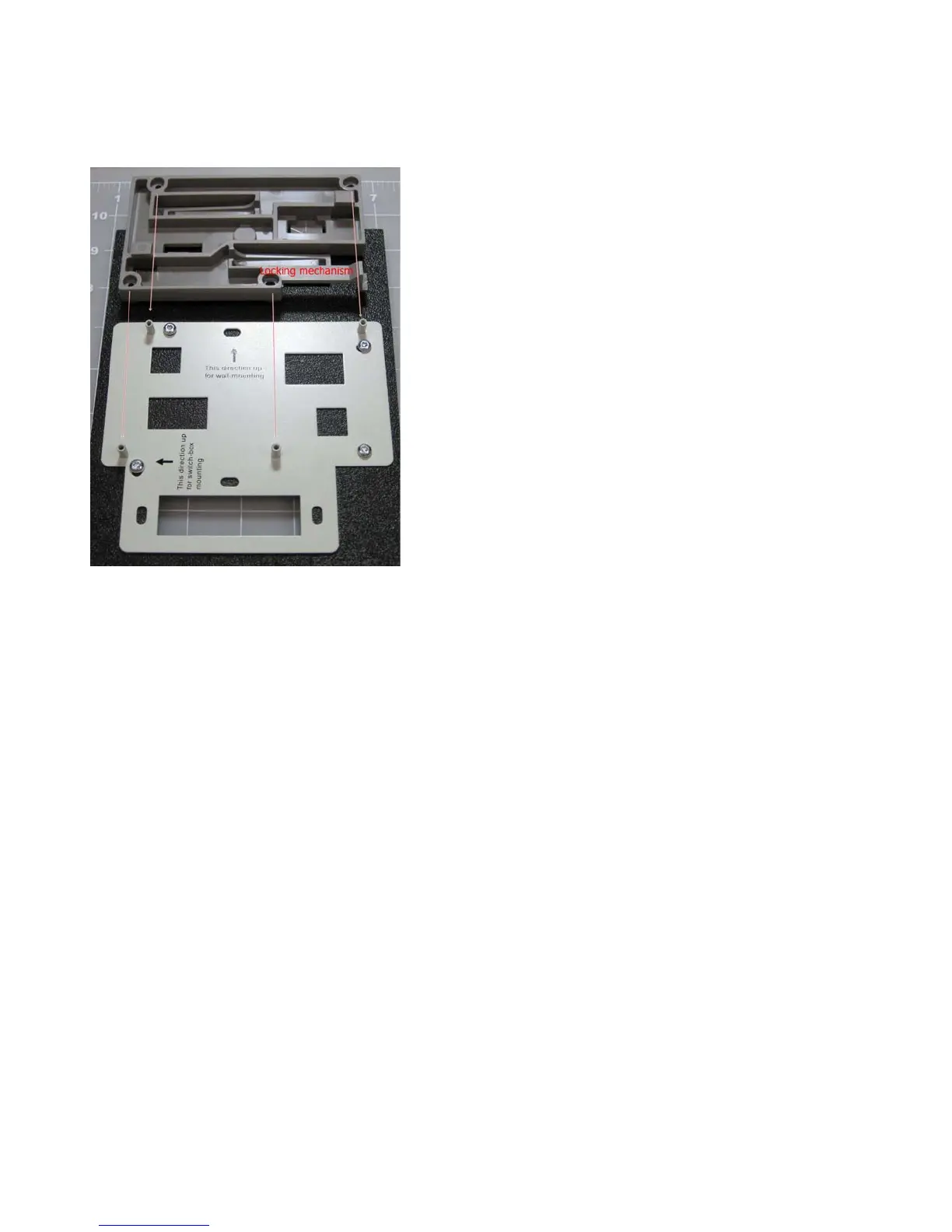

Figure 3: Attaching the AP Mount to the Wall Mount
4. Screw the plastic component into place on the metal bracket.
5. Run the Ethernet and power cable (if using one) through the rectangular opening at the bottom of
the Wall Mount bracket and connect them to their corresponding ports on the underside of the AP.
6. Press the Receiving Slots on the underside of the AP (indicated below) to the corresponding tabs
("Mounting Pins") on the plastic bracket. See Figure 4.
