5.4.2 Example of averaging
Capacitive test object 200 nF
Insulation Resistance Measurement
Test parameters:
Un = 5.00 kV
Timer1 = 5:00 min

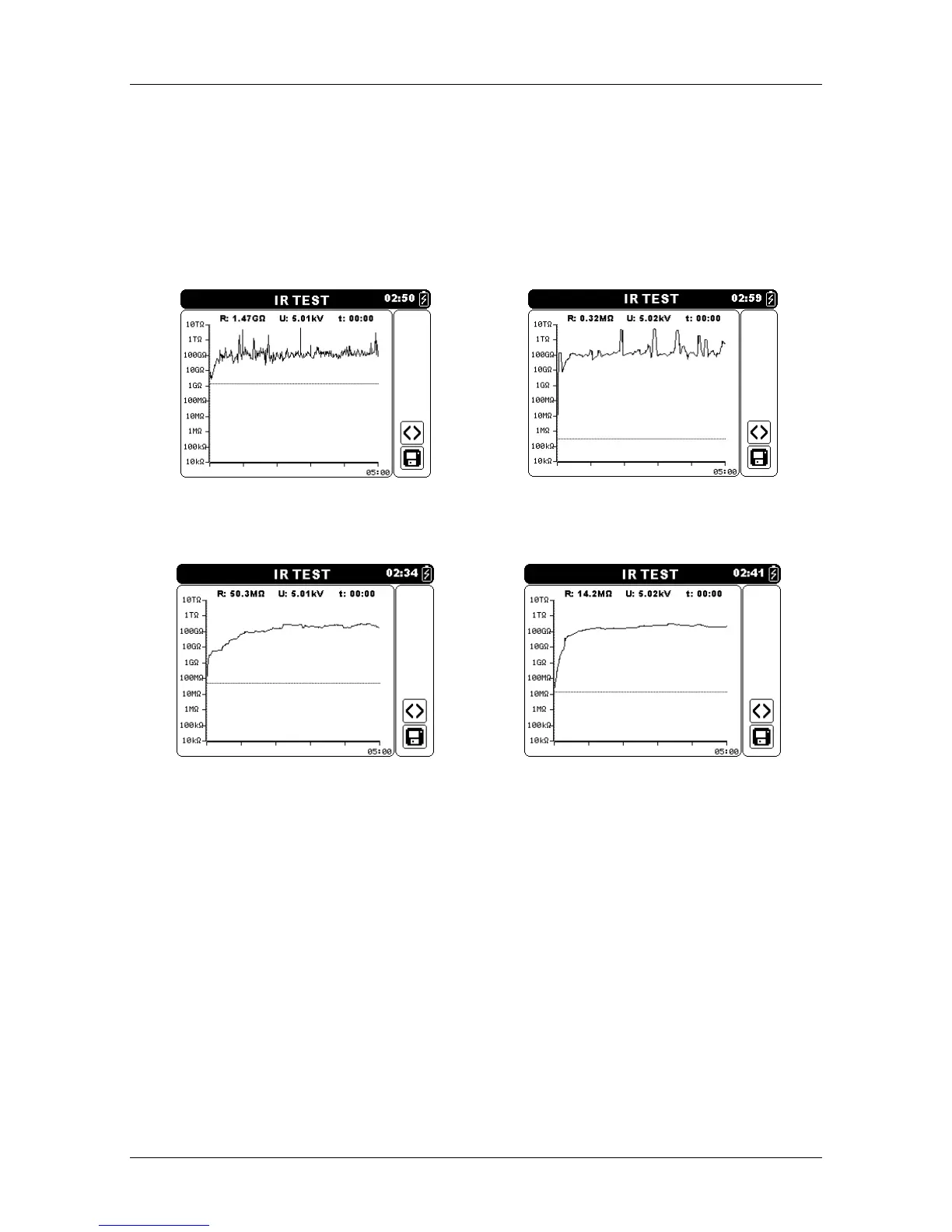

Figure 5.3: Insulation Meas. (AVG _ _ _ ) Figure 5.4: Insulation Meas. (AVG 5s )
Figure 5.5: Insulation Meas. (AVG 30s ) Figure 5.6: Insulation Meas. (AVG 60s )
