MI 3205 TeraOhm XA 5kV Measurements
48

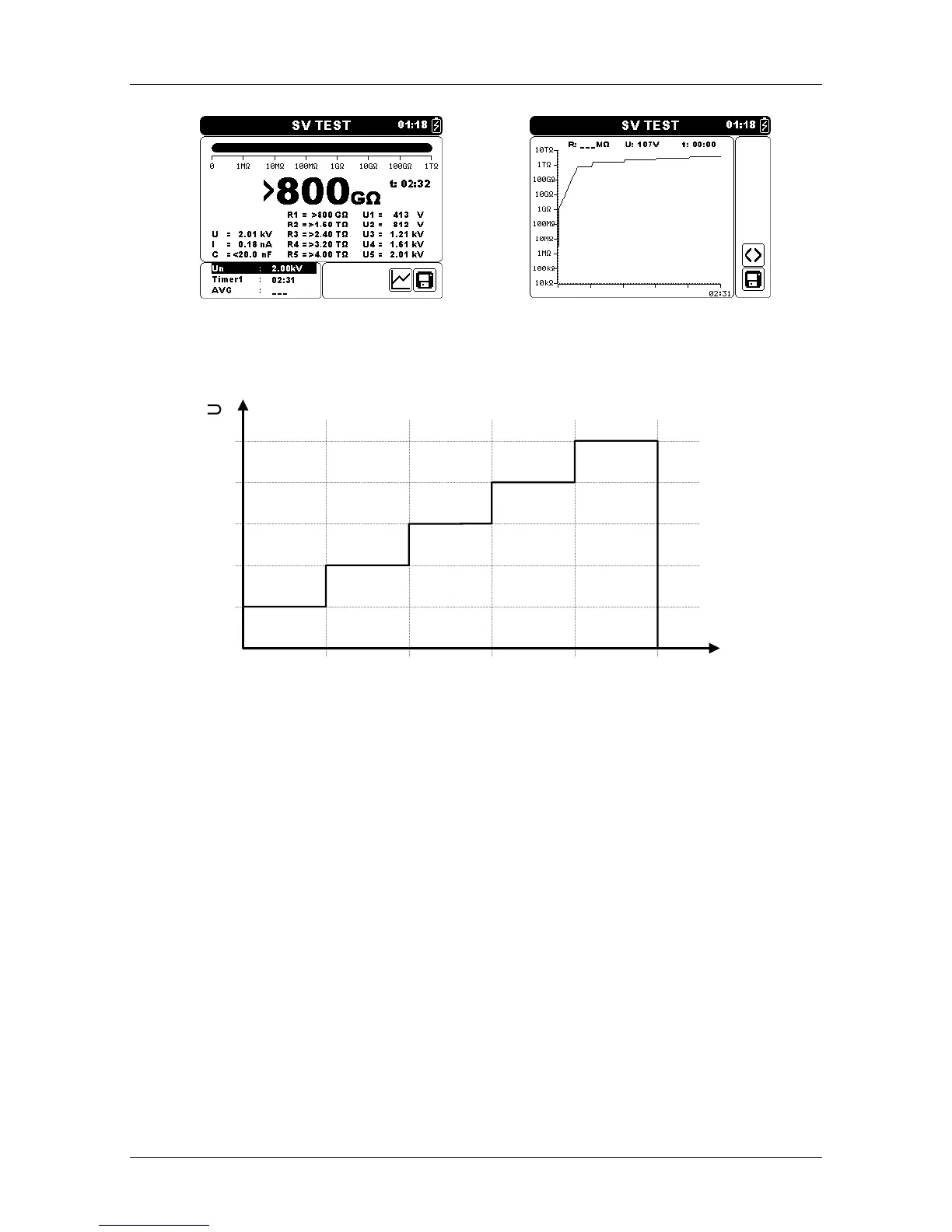

Figure 5.18: Example of Step Voltage test
result
Figure 5.19: Example of Step Voltage
test graph view
t
0.2T 0.4Ts 0.6Ts 0.8Ts T
0.2Un
0.4Un
0.6Un
0.8Un
Un
Figure 5.20 Step-up voltage test
Warnings:
 Refer to Warnings chapter for safety precautions!
 Do not touch the test object during the measurement or before it is fully
discharged! Risk of electric shock!
Notes:
 Consider displayed warnings when starting the measurement!
 A high-voltage warning symbol appears on the display during the measurement to
warn the operator of a potentially dangerous test voltage.
 Value of capacitance is measured during the final discharge of the test object.
 Timer information shows the complete measurement period after the completion
of the measurement
