4.2 Rear of the instrument
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10
￭￭￭￭￭￭￭￭
915 KF Ti-Touch
11
Bottle holder
With holding clips, for reagent bottle.
12
Support rod (lower part)
For mounting the support rod (upper part).
13
Titration stand
With built-in magnetic stirrer and membrane
pump for placement of the titration cell.
4.2 Rear of the instrument
8
9
1 2
3
4
5
6
7
10

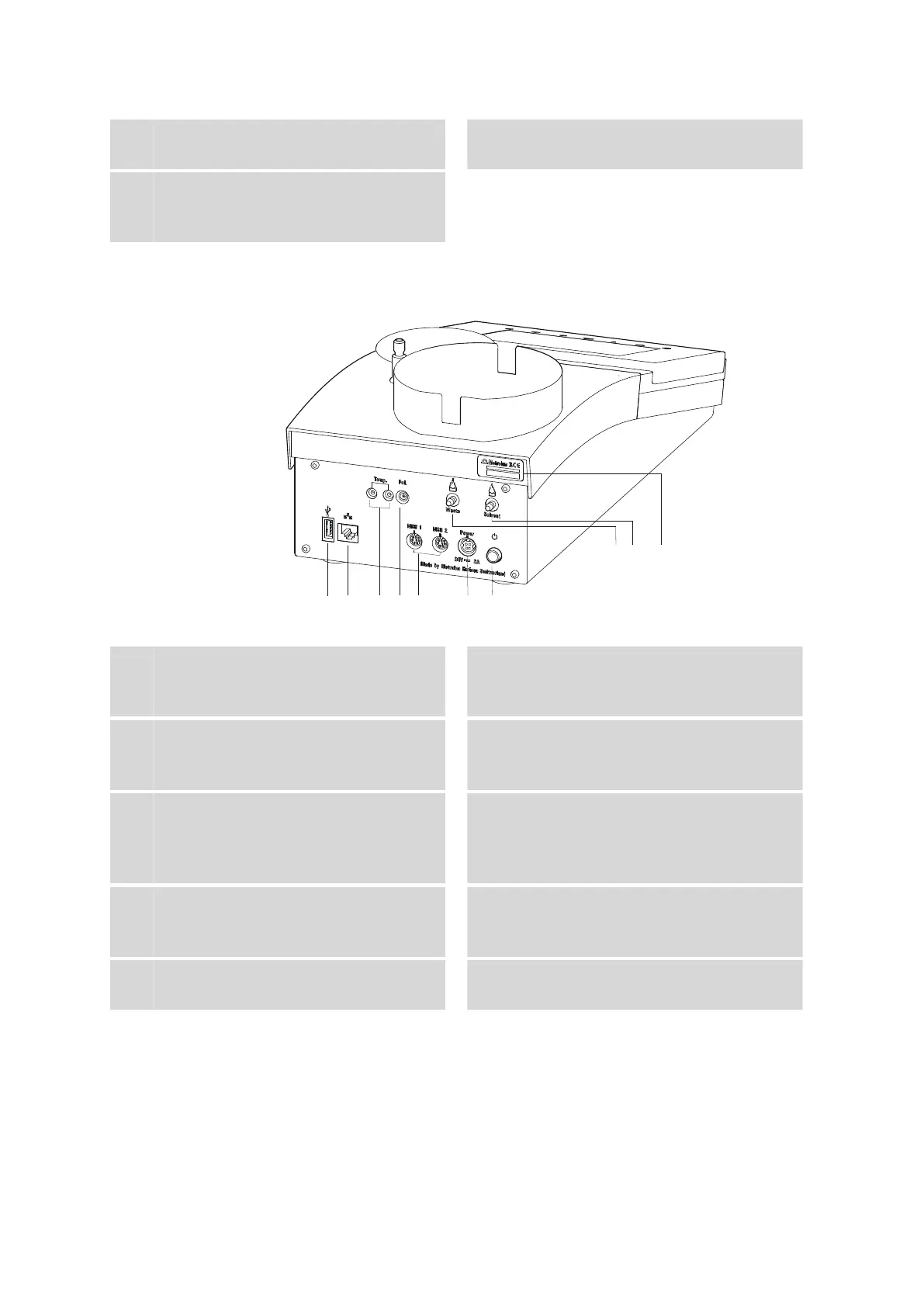

Figure 2 915 KF Ti-Touch rear
1
USB connector (type A)
For connecting a printer, USB flash drive,
USB hub, Sample Processor etc.
2
Ethernet connector (RJ-45)
For connecting to a network.
3
Temperature sensor connector (Temp.)
For connecting temperature sensors (Pt1000
or NTC). Two B sockets, 2 mm.
4
Electrode connector (Pol.)
For connecting polarizable electrodes, e.g.
double Pt electrodes. Socket F.
5
MSB connector (MSB 1 and MSB 2)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or a Remote Box.
Mini DIN, 8-pin.
6
Power socket (Power)
For connecting the external power supply
unit.
7
Power switch
Switches the instrument on/off.
8
Connection nipple for PVC tubing
For aspirating the contents of the titration
cell.
9
Connection nipple for PVC tubing
For aspirating solvent.
10
Type plate
Contains the serial number.
