5.7 Connecting sensors
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
22
￭￭￭￭￭￭￭￭
915 KF Ti-Touch

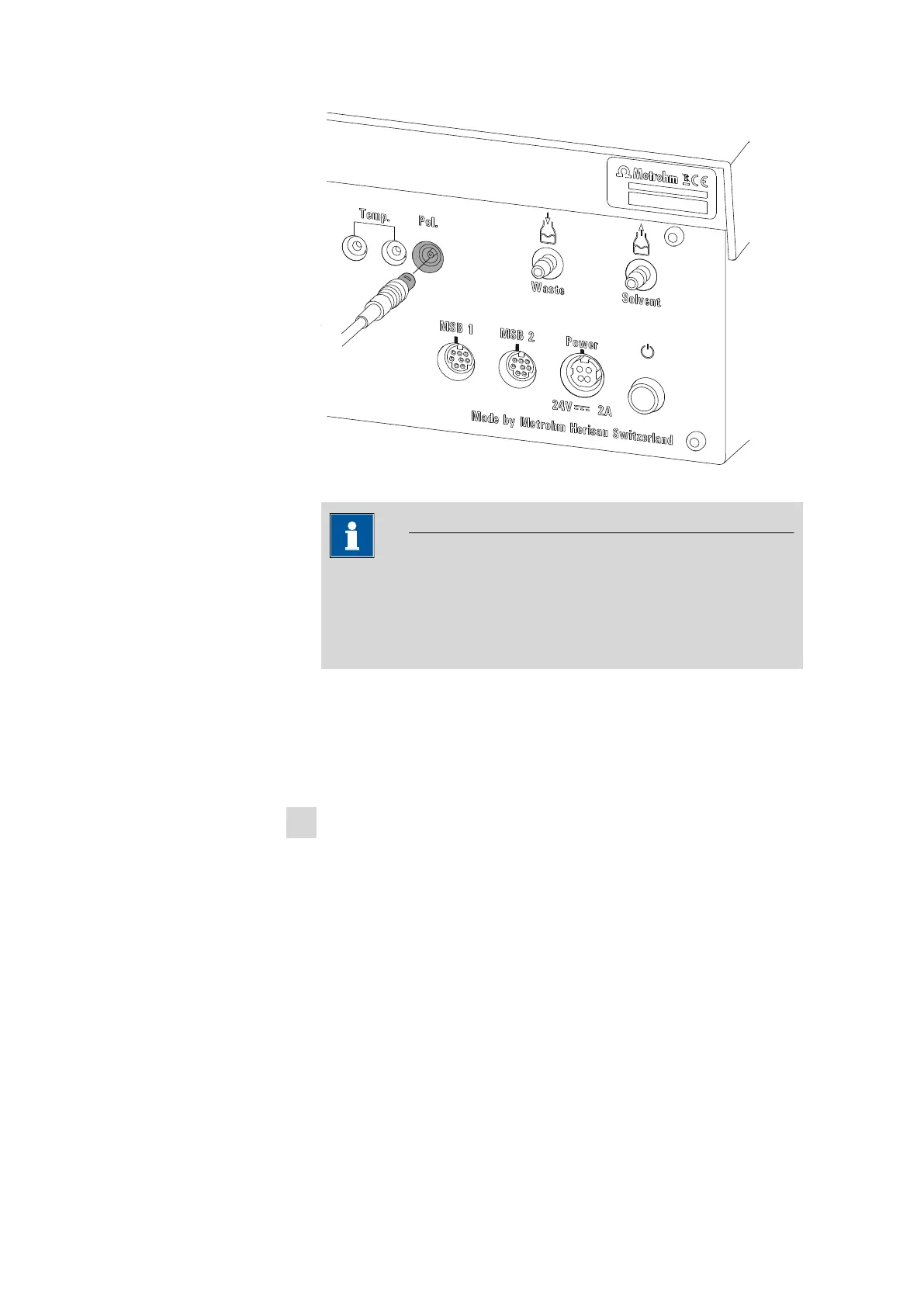

Figure 6 Connecting a polarizable electrode
NOTE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
5.7.3 Connecting the temperature sensor
A temperature sensor of the Pt1000 or NTC type can be connected to the
Temp. connector.
Connect the temperature sensor as follows:
1
Plug the temperature sensor plugs into the Temp. sockets of the
Ti-Touch.
