5.4 Connecting MSB devices
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14
￭￭￭￭￭￭￭￭
915 KF Ti-Touch
5.4 Connecting MSB devices
In order to connect MSB devices, e.g. dosing devices or Remote Box, the
Ti-Touch has two connectors to what is referred to as the Metrohm Serial
Bus (MSB). Various peripheral devices can be connected in sequence (daisy
chain) at a single MSB connector (8-pin Mini DIN socket) and be control-
led simultaneously by the Ti-Touch. In addition to the connection cable,
stirrers and the Remote Box are each equipped with their own MSB socket
for this purpose.
NOTE
The additional stirrer must not be connected to the MSB 1!

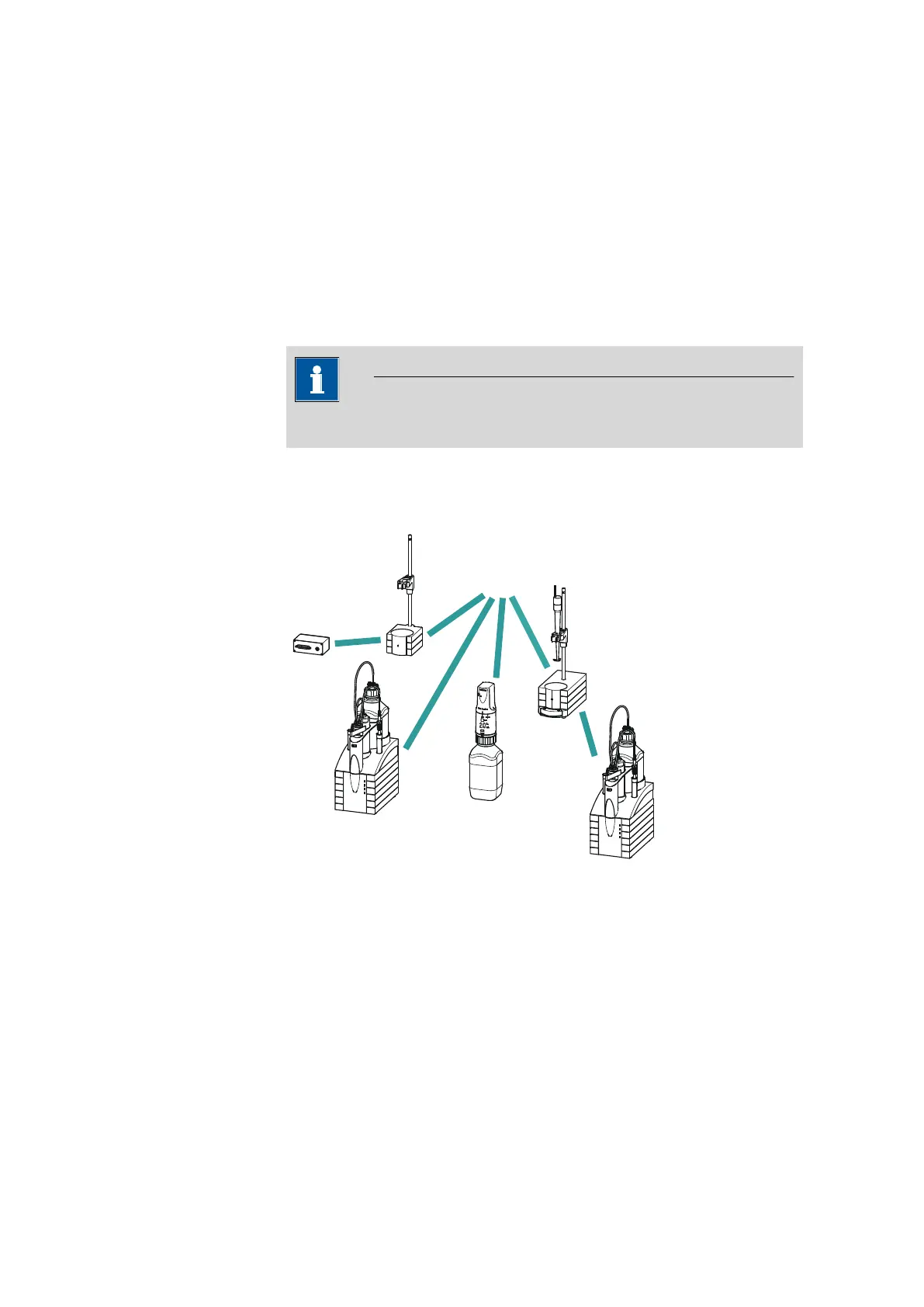

The following figure provides an overview of the instruments that can be
connected to an MSB socket, along with a number of different cabling
variations.
MSB
Stirrer / Ti Stand
Dosimat / Dosino
Dosimat
Remote Box
Dosino
Ti Stand / Stirrer
Figure 4
MSB connections
