Additional requirements for the servo drives concerning the UL approval Page 32
The servo drive ARS 2100 SE is connected to the supply voltage, the motor, the brake resistor and the
holding brakes as shown in Figure 5. The operation of the servo drive ARS 2100 SE requires a 24V
supply source for the electronics, which is connected to the terminals +24V and GND24V. The connection
to the supply for the power output stage is either made to terminals L and N for AC supply or to ZK+ and
ZK- for DC supply.
PHOENIX
MINI-COMBICON
at X9
1
4
7
9
2
5
8
3
Power connector
6
PE
L
N
ZK+
GND24V
+24V
BR-INT
BR-CH
ZK-
PHOENIX
COMBICON
at X9
external
brake resistor
alternative !

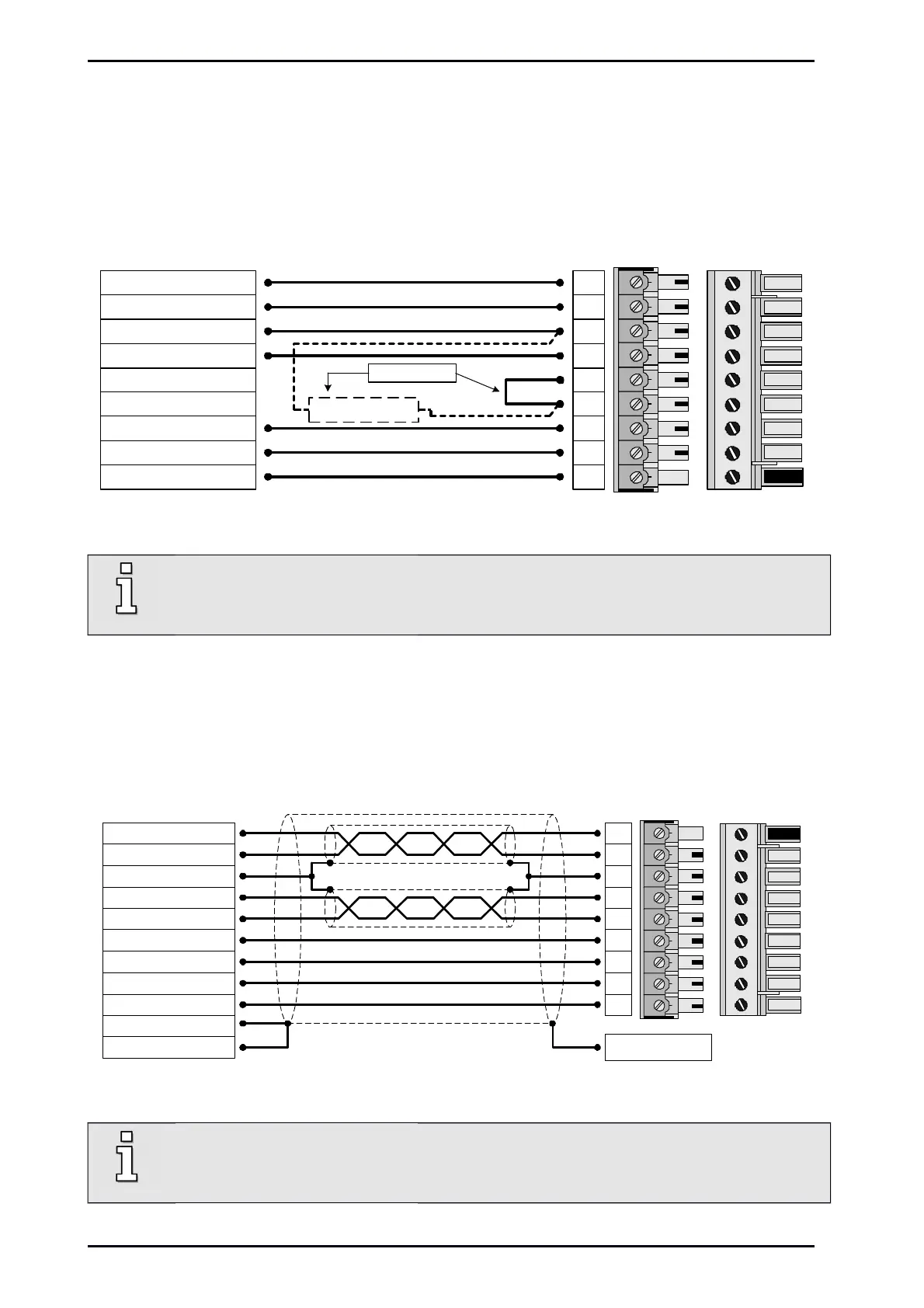

Figure 12: Supply [X9]
ARS 2102 SE and ARS 2105 SE:
ARS 2108 SE:
PHOENIX MINI-COMBICON MC 1,5/ 9-ST-5,08 BK
PHOENIX COMBICON MSTB 2,5/9-ST-5,08 BK
The motor is connected to the terminals U, V, W via motor cable to [X6].
Digital motor temperature sensors are connected to the terminals MT+ and MT- at motor connector [X6].
Analogue motor temperature sensors are connected via the encoder cable to [X2A] or [X2B].
PE (optional)
Motor Phase U resp. 1
Motor Phase V resp. 2
Motor Phase W resp. 3
BR-
BR+
MT+
MT-
Motor connector
PE (Motor)
Shield connector
SK 14
1
4
7
9
2
5
8
3
6
Connector housing
Motor housing
PHOENIX
MINI-COMBICON
at X6
PHOENIX
COMBICON
at X6
Figure 13: Motor connection [X6]
ARS 2102 SE and ARS 2105 SE:
ARS 2108 SE:
PHOENIX MINI-COMBICON MC 1,5/ 9-ST-5,08 BK
PHOENIX COMBICON MSTB 2,5/9-ST-5,08 BK
Mounting Instructions „Servo drives ARS 2100 SE“ Version 5.0
