Additional requirements for the servo drives concerning the UL approval Page 36

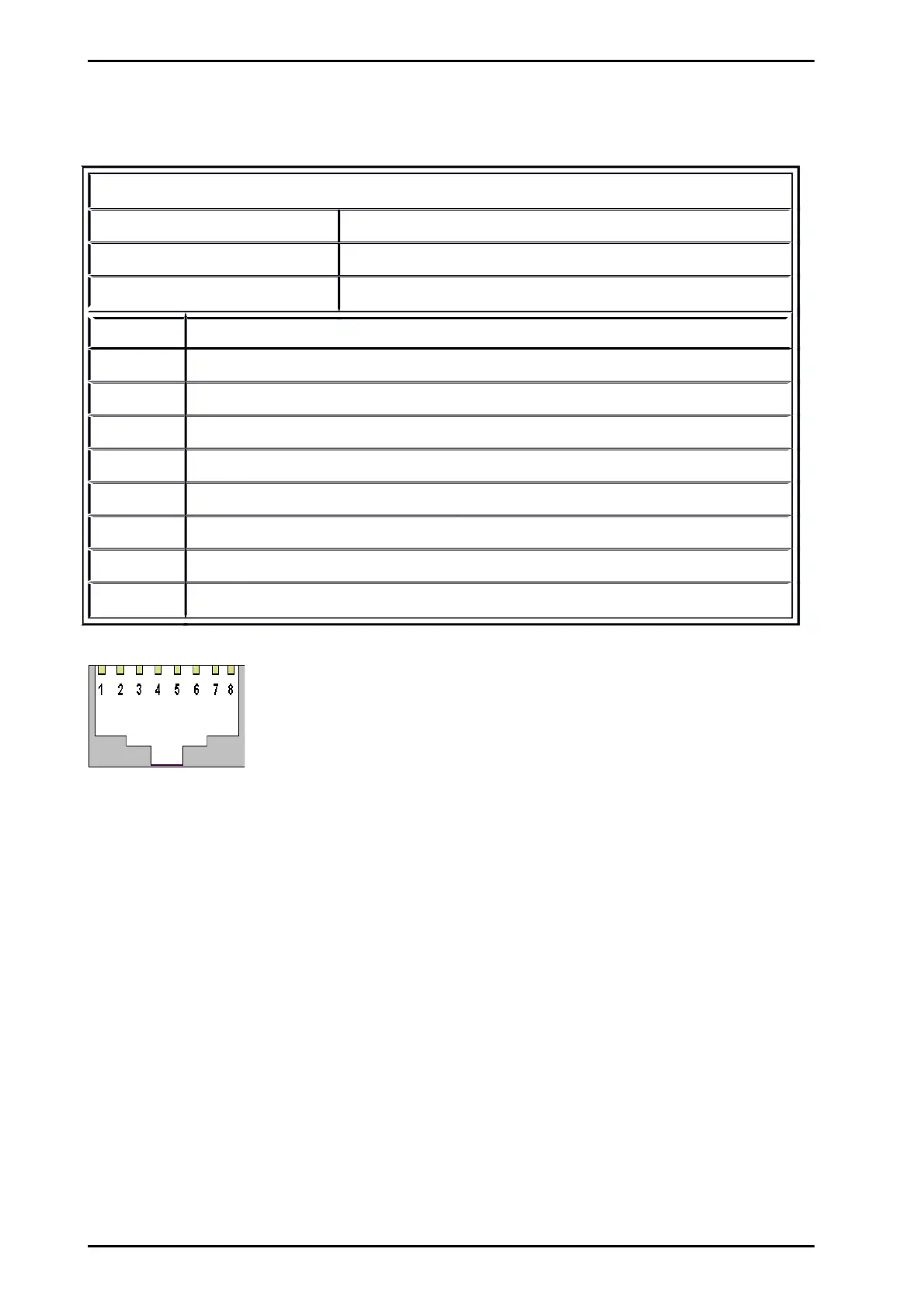

5.8 Ethernet communication [X18]

Ethernet interface [X18]

Functions UDP communication, 10/100 MBaud, automatic selection

Connector type RJ 45 socket

Communication protocol UDP communication

Pin No. Specification

1 Transmission signal + ( TX+ ) Pair 3

2 Transmission signal- ( TX- ) Pair 3

3 Receiver signal + ( RX+ ) Pair 2

4 nc Pair 1

5 nc Pair 1

6 Receiver signal- ( RX- ) Pair 2

7 nc Pair 4

8 nc Pair 4

Figure 16: Pin assignment: Ethernet interface [X18]

Mounting Instructions „Servo drives ARS 2100 SE“ Version 5.0
