Metronix ARS 2100 SE Series Mounting Instruction

Additional requirements for the servo drives concerning the UL approval Page 23
4.2 Mounting
The servo drive ARS 2100 SE has attachment lugs on the top and the bottom of the device. These lugs
are used to mount the servo drive vertically to a control cabinet plate.
The lugs are part of the cooling body profile. This is why the best possible heat transfer to the control
cabinet plate has to be ensured.
Recommended tightening torque for an M5 screw of property class 5.6: 2.8 Nm.
Please use M5 screws for the mounting of the servo drives ARS 2102 SE, ARS 2105 SE and
ARS 2108 SE.
R2,5
R5
261 mm
21 mm
255,5 mm
28,8 mm
54,6 mm
4,5 mm
31,5 mm
247,3 mm
251 mm
R2,5 M4 flush head stud

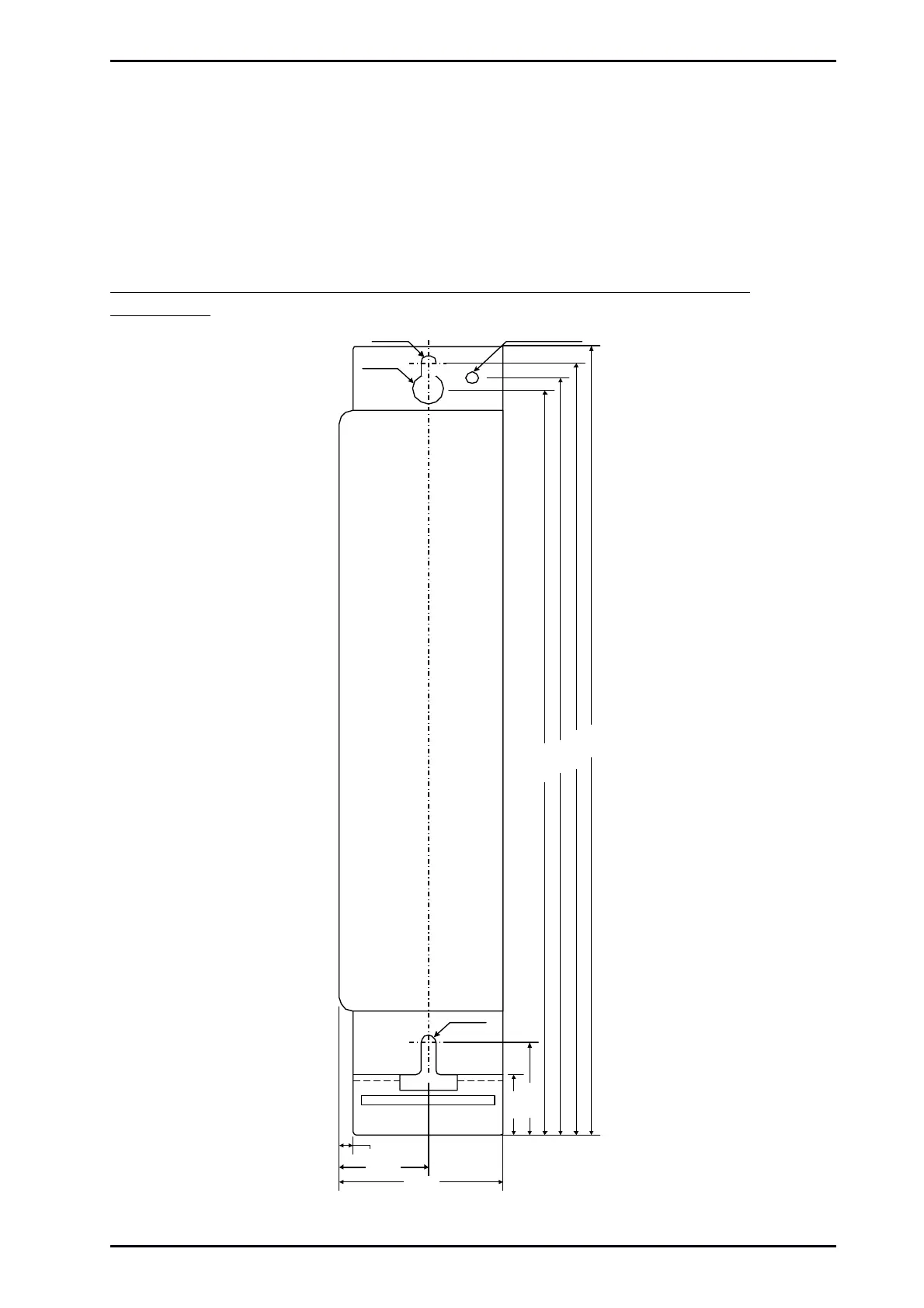

Figure 4: Servo drive ARS 2100 SE: Mounting plate
Mounting Instructions „Servo drives ARS 2100 SE“ Version 5.0
