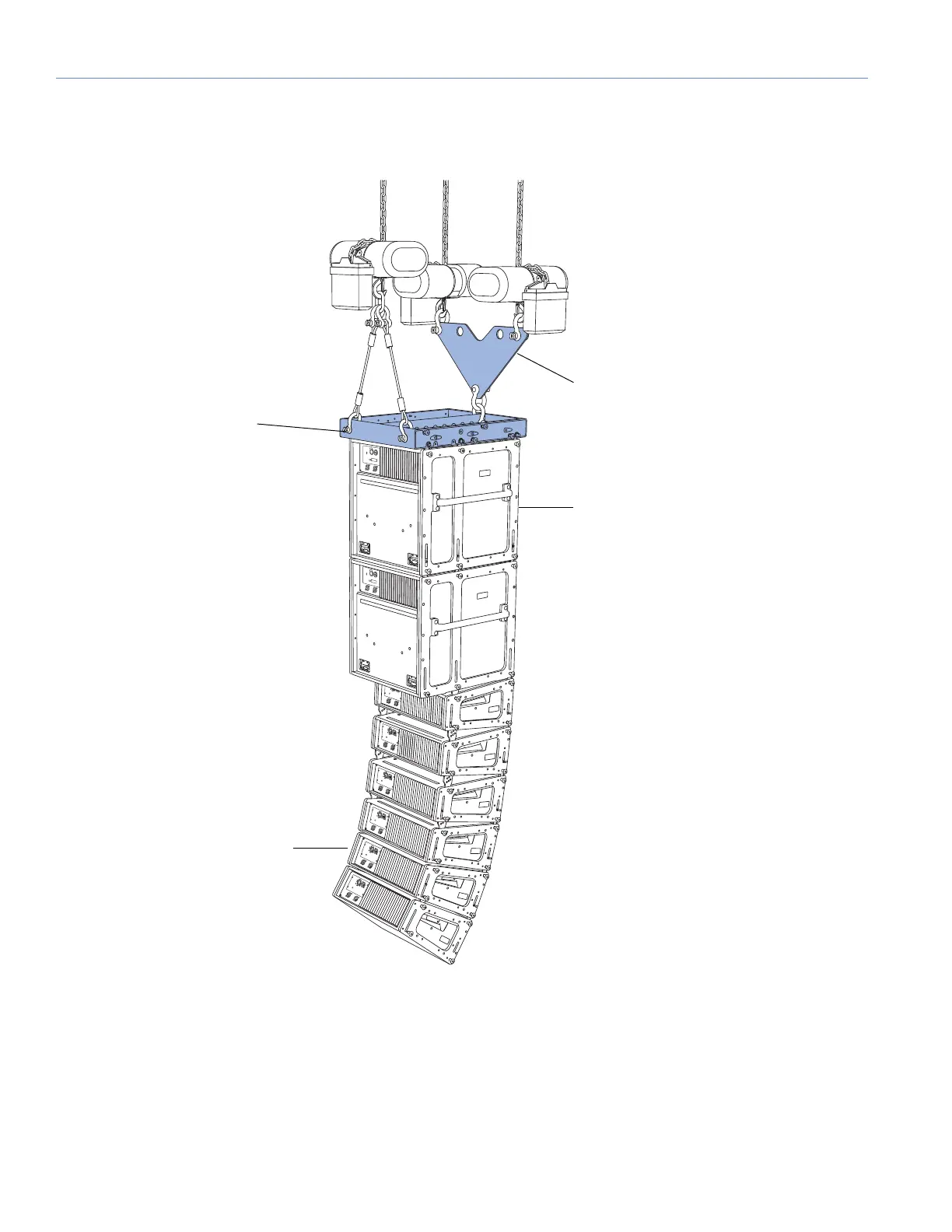

Rigging Example, Mixed Array with 750-LFCs and LINAs
MG-MINA/LINA/750-LFC
Multipurpose Grid
Oriented for maximum array
downtilt with three pick-up
points and three motors
MVP Motor Vee Plate
Attached to front center
of grid with two motors
to adjust the horizontal
aim of the array
(2) 750-LFC
Low-frequency
enhancement
(6) LINA
Primary array
coverage
