MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
5

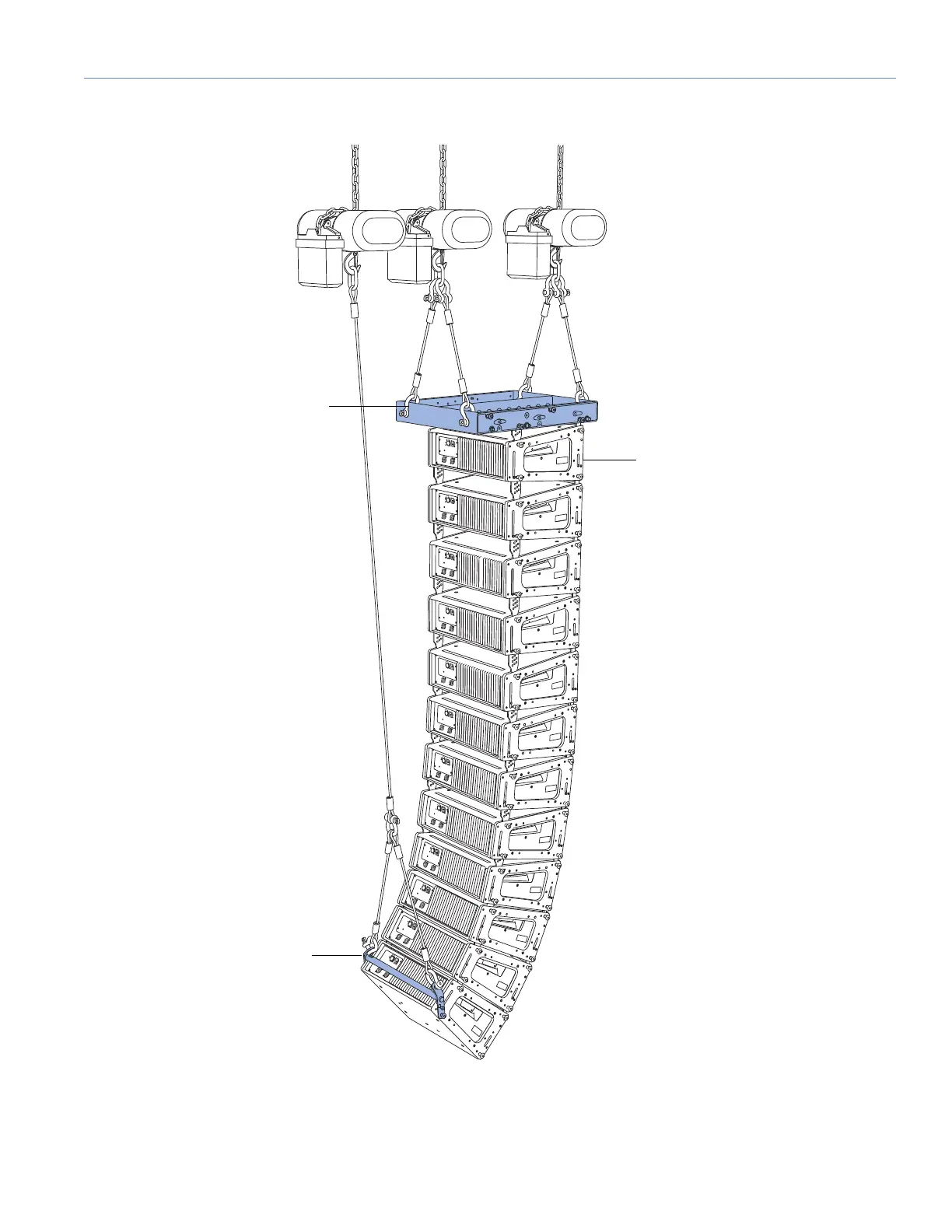

Rigging Example, LINA Array with Pull-Back
MG-MINA/LINA/750-LFC
Multipurpose Grid
Oriented for maximum array
downtilt with four pick-up
points and two motors
(12) LINA
Primary array
coverage
PBF-LINA
Pull-Back Frame
Attached to bottom
cabinet to provide
pull-back for extreme
array downtilt
