CHAPTER 4: LOUDSPEAKER GUIDEALINKS
14
Front GuideALinks
The front GuideALinks act as a pivot point between linked LINAs, with the splay angle between the units determined by the
rear GuideALink positions. When stowing front GuideALinks, the knob is positioned at the top of the slot.
Rear GuideALinks
The rear GuideALinks permit splay angles between linked LINAs at 0.0, 0.5, and 1–11 degrees in 1-degree increments. The
rear GuideALink includes three rows of holes corresponding to the available splay angles (see Figure 10 on page 15) that are
secured in one of three pinning positions at the bottom of the unit.

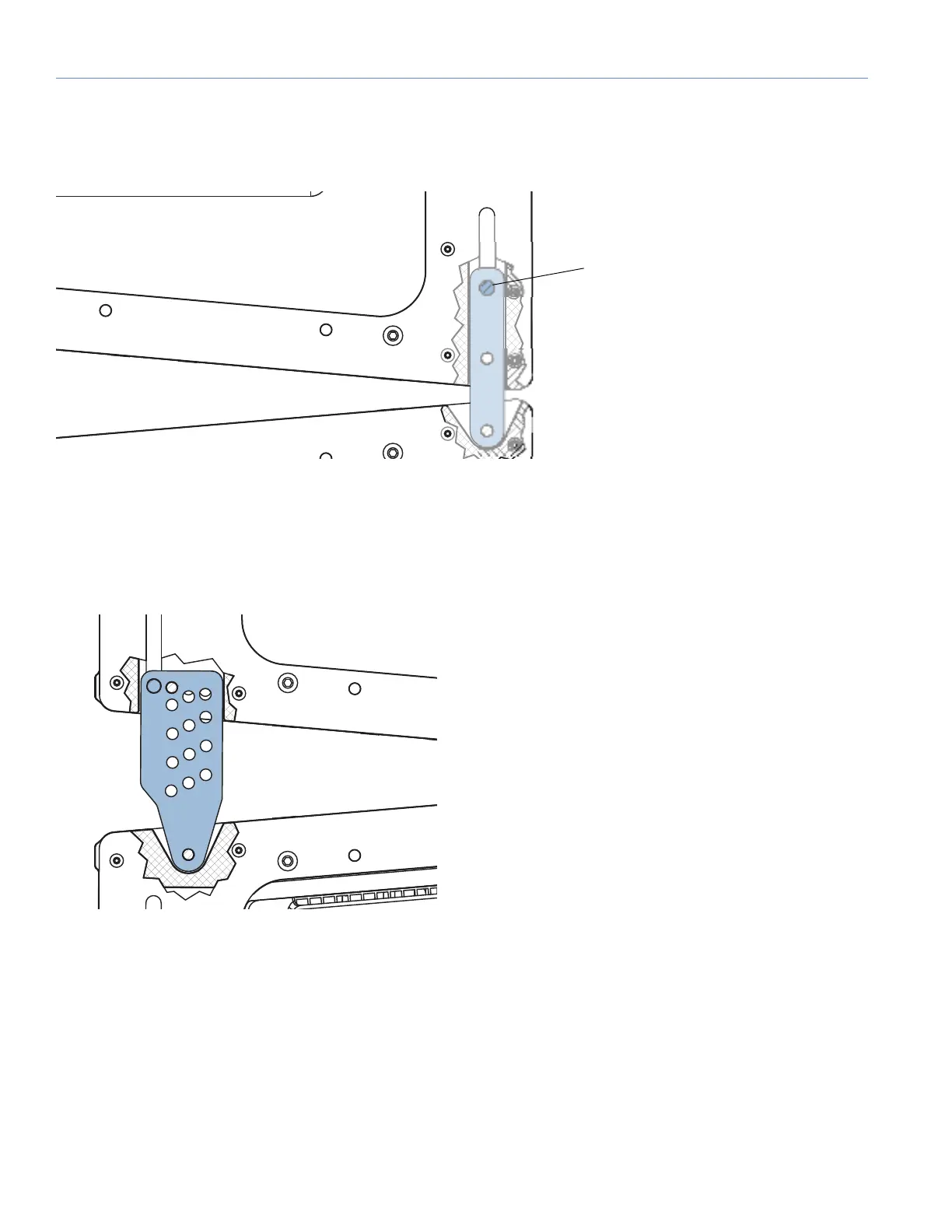

Figure 7: LINA Front GuideALinks
Figure 8: LINA Rear GuideALinks
