MG-MINA/LINA/750-LFC GRID ASSEMBLY GUIDE
15
The label in the lower rear corner of the end frame shows the splay angle between LINAs given a GuideALink pinning posi-
tion. With the knob at the bottom, the splay angle is 0 degrees. As the knob is moved up, the angle increases (all the way to
11 degrees). To stow the link, move the knob all the way to the top of the slot.

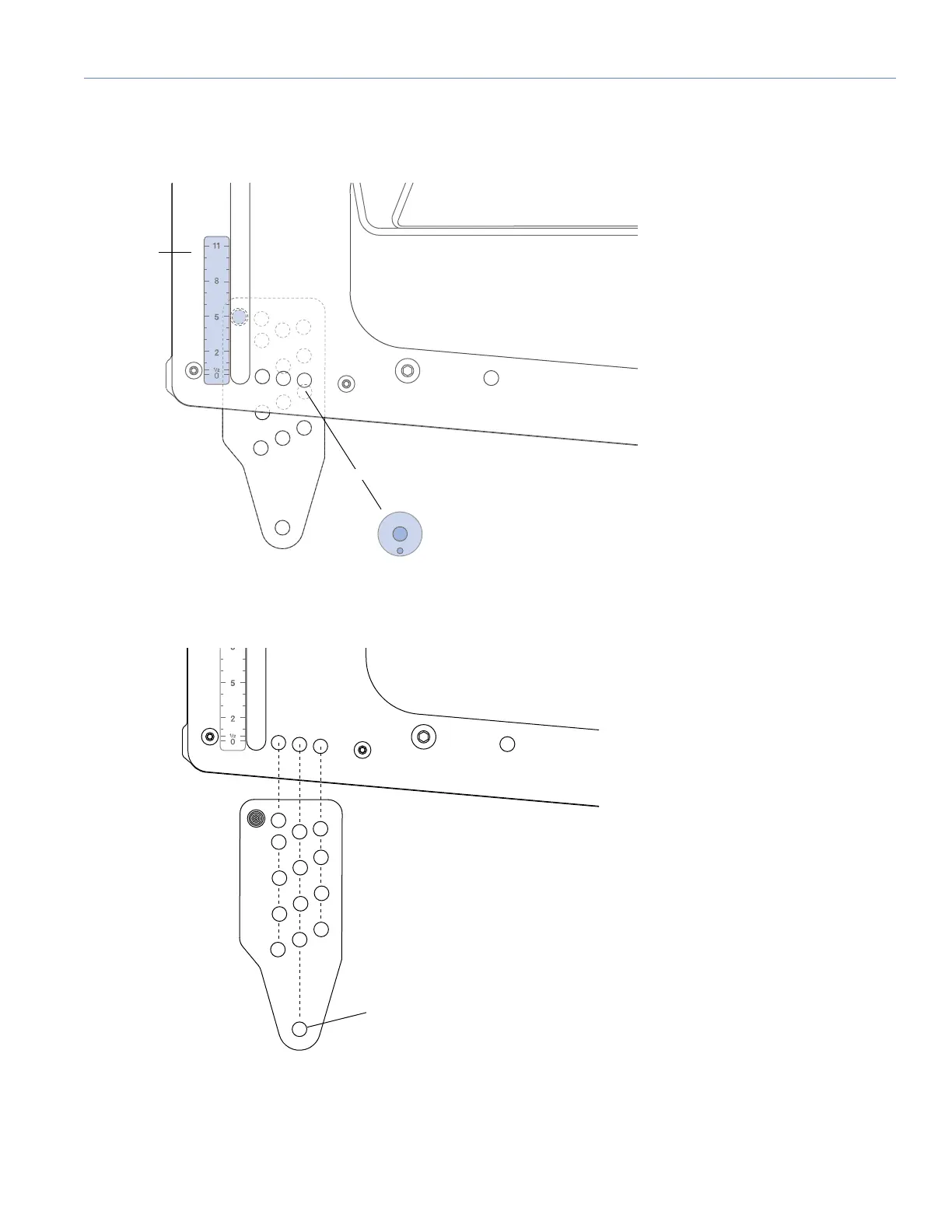

Figure 9: LINA Rear GuideALink Label and Pinning Positions
Figure 10: LINA Rear GuideALink, Splay Angles for Linked LINAs
Quick-release pin
GuideA-
Link label
Pinning positions
11°
10°
.5°
Stowed
