MGE UPS Systems PULSAR EVOLUTION 2200 - 2.3 Flat installation (rack position)

Page 12 - 34007115EN/AA
2. Installation
2.3 Flat installation (rack position)

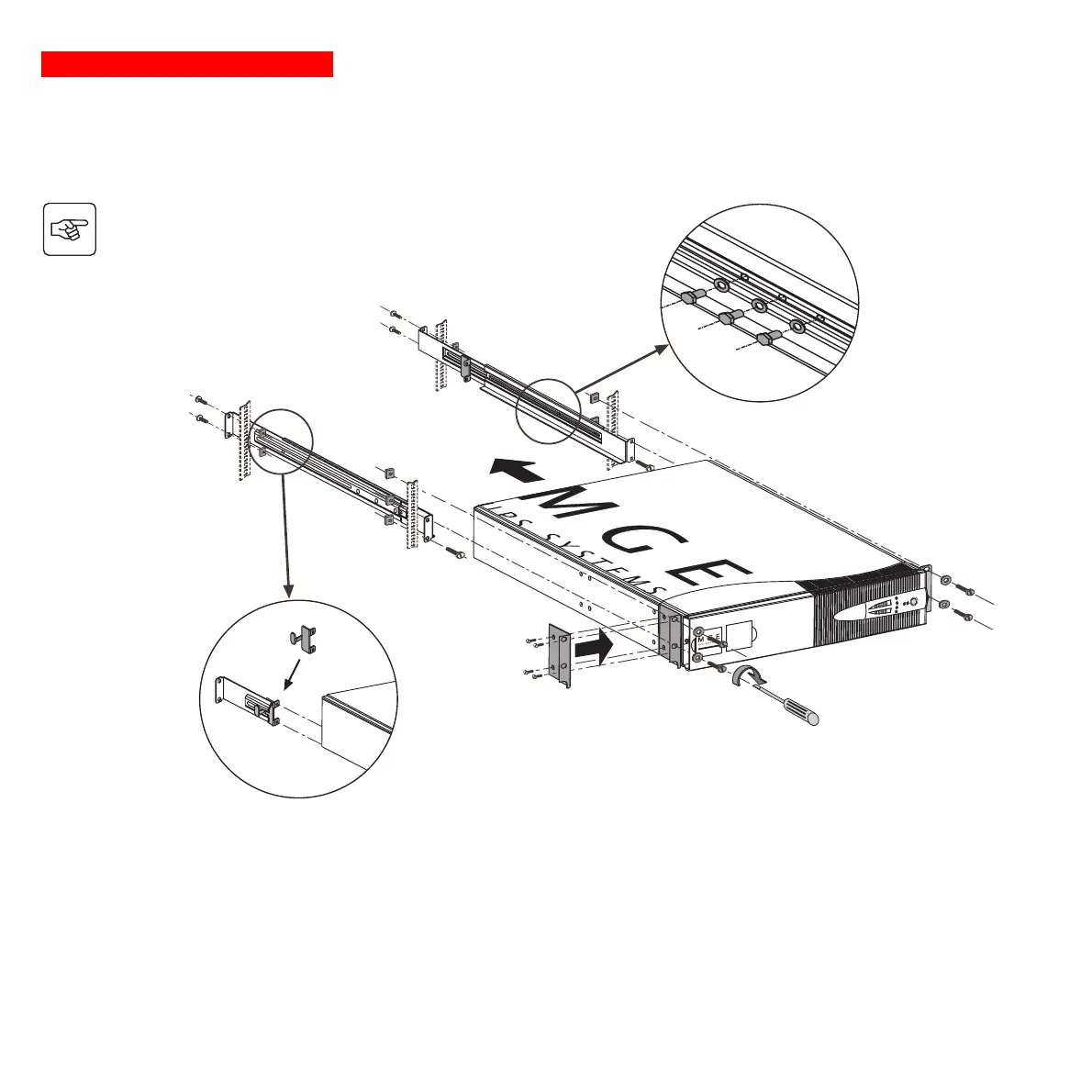

Follow steps 1 to 6 for rack mounting of the UPS on the rails.
The rails and the necessary mounting hardware are supplied by MGE UPS SYSTEMS.
1
2
2
2
2
5
3
6
6
5
4
3
P U L S A R
Evolution
3 0 0 0
