4. Maintenance
Installation of the new battery module
Carry out the above operation in reverse order.
◗ To maintain an identical level of performance and safety, use a battery module identical to that previously
mounted in the UPS.
◗ Press the two parts of the battery connector tightly together to ensure proper connection.

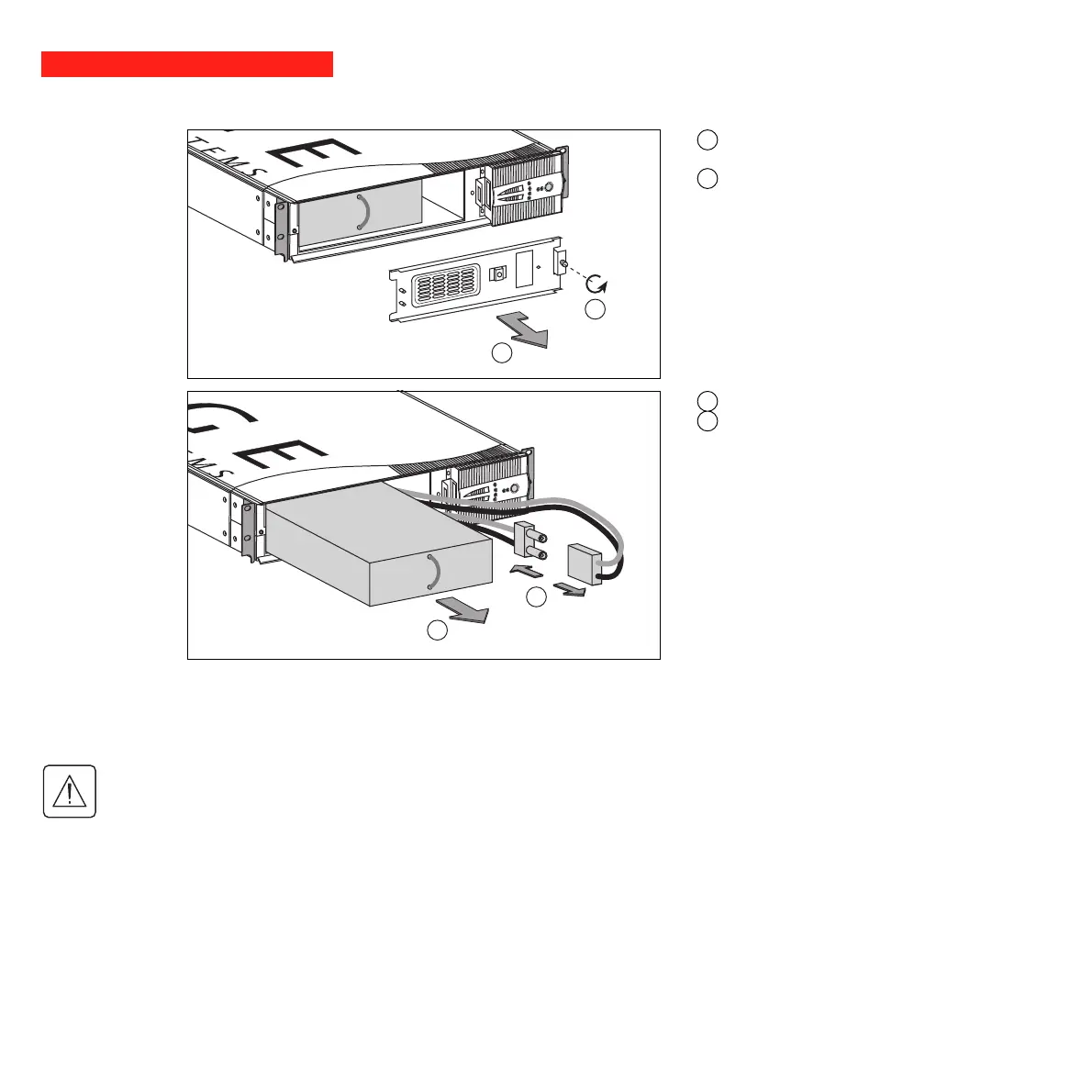

F - Remove the screw securing the battery
cover.
G - Remove the cover.
H - Disconnect the battery module.
I - Remove the battery module.
