Micom SW800 - Section 10.0 - Changing Handing of Operator

SW800 Installation Manual
29

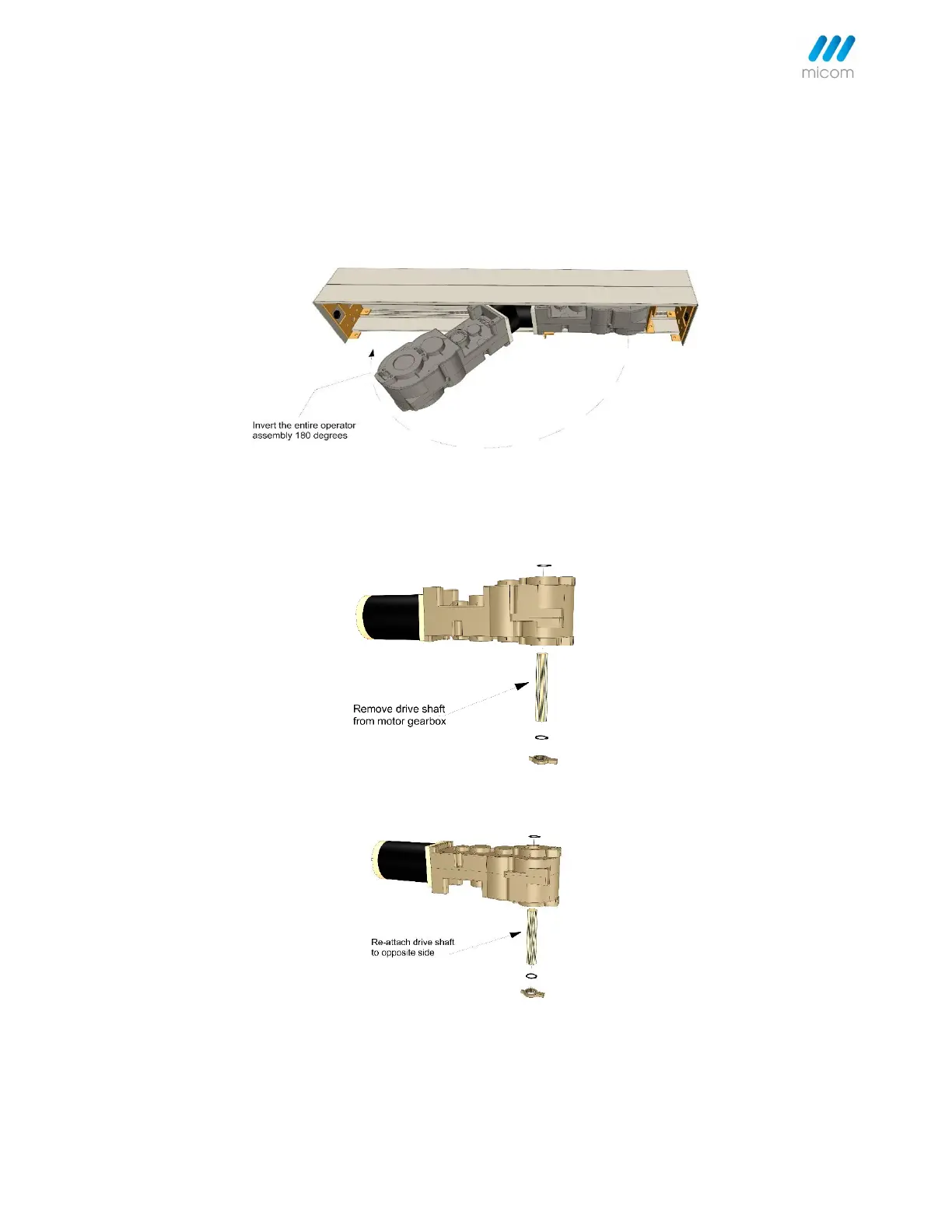

Section 10.0 - Changing Handing of Operator
Step 1. Invert the entire operator assembly 180
Step 2. Remove drive shaft (spindle) from motor gearbox assembly (See changing position of drive shaft)
Step 3. Re-attach drive shaft (spindle) to the opposite side of motor gearbox assembly.
