Section 3.0 - Receiving Inspection
On receiving the package, please verify that the order was shipped complete and correct, including model number,
header width, door handing, arm and color.
• If any of the below items are not correct, do not attempt to install the unit until all conditions are correct.
• Report any incorrect items immediately.
NO CLAIMS FOR SHORTAGE WILL BE ACCEPTED UNLESS REPORTED WITHIN 24 HOURS OF RECEIPT OF SHIPMENT. THE
FOLLOWING ITEMS SHOULD BE SUPPLIED:

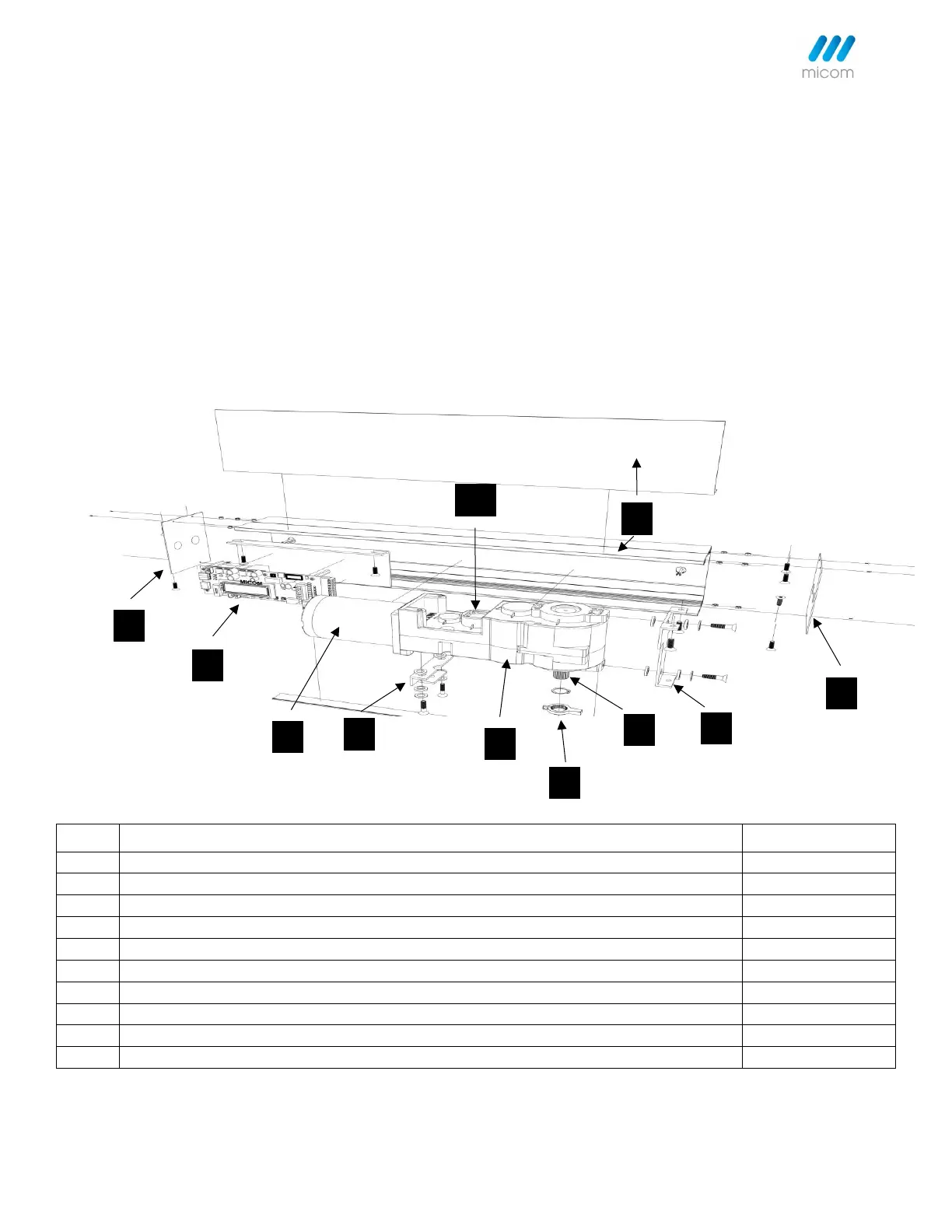

3.1 Exploded View
3.2 Parts List
No.
Description
Parts No.
1
SW800 Header/Housing
HDR
2
End cover plate
ECPL-800
3
Control Unit SW800
SW-CU-800
4
Motor
n/a
5
Gear Box/Motor Assembly
SW-MGB-800
6
Spindle
S-800
7
Mechanical door stop
MDS-800
8
Motor gear box end support bracket
MEB-800
9
Motor gear box mount bracket
MGBMB-800
10
Rev Counter/Encoder
SW-REV
1
2
3
4
5
6
7
8
9
10
