Section 11.0 - Safety Signage and Decals

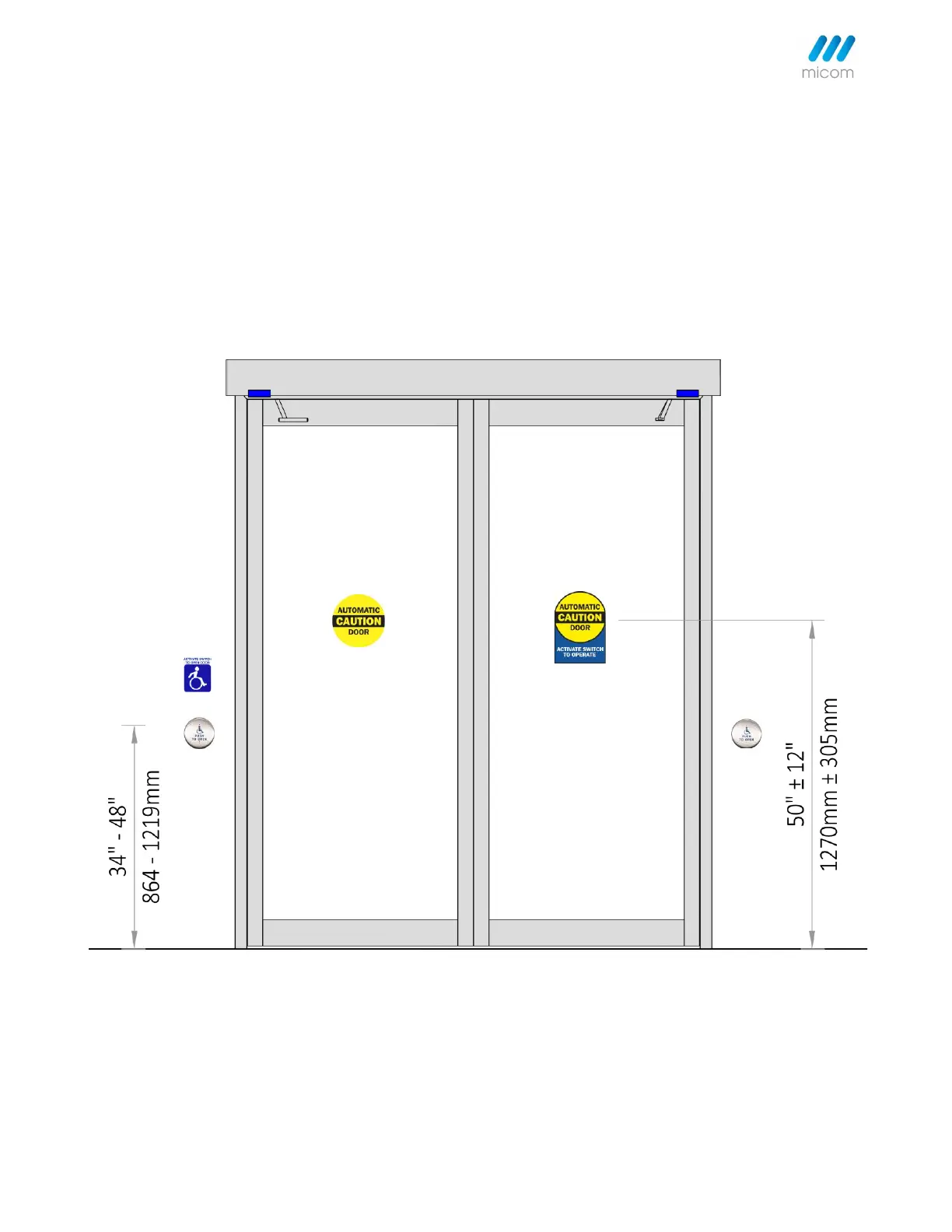

The center of the decal height should be located at 50" +/- 12" (1270 +/- 305 mm) above the finished floor.
See ANSI standard A156.19 requirements for additional safety decal information.
Check Local and State codes for additional signage requirements to ensure full compliance.
The center of the push plate height should be between 34" (864 mm) and 48" (1,219 mm) above the finished floor.
LOW ENERGY DECALS
(ON BOTH INGRESS AND EGRESS SIDES)
Section 12.0 - Troubleshooting
Factory Signage includes the round Yellow/Black and the rectangular Blue/White decals with the operator.
- This is compliant with ANSI A156.19 standard
Alternate Signage is a popular alternative that some building owners prefer to better integrate with the aesthetics of
the building. See installer for other options.
